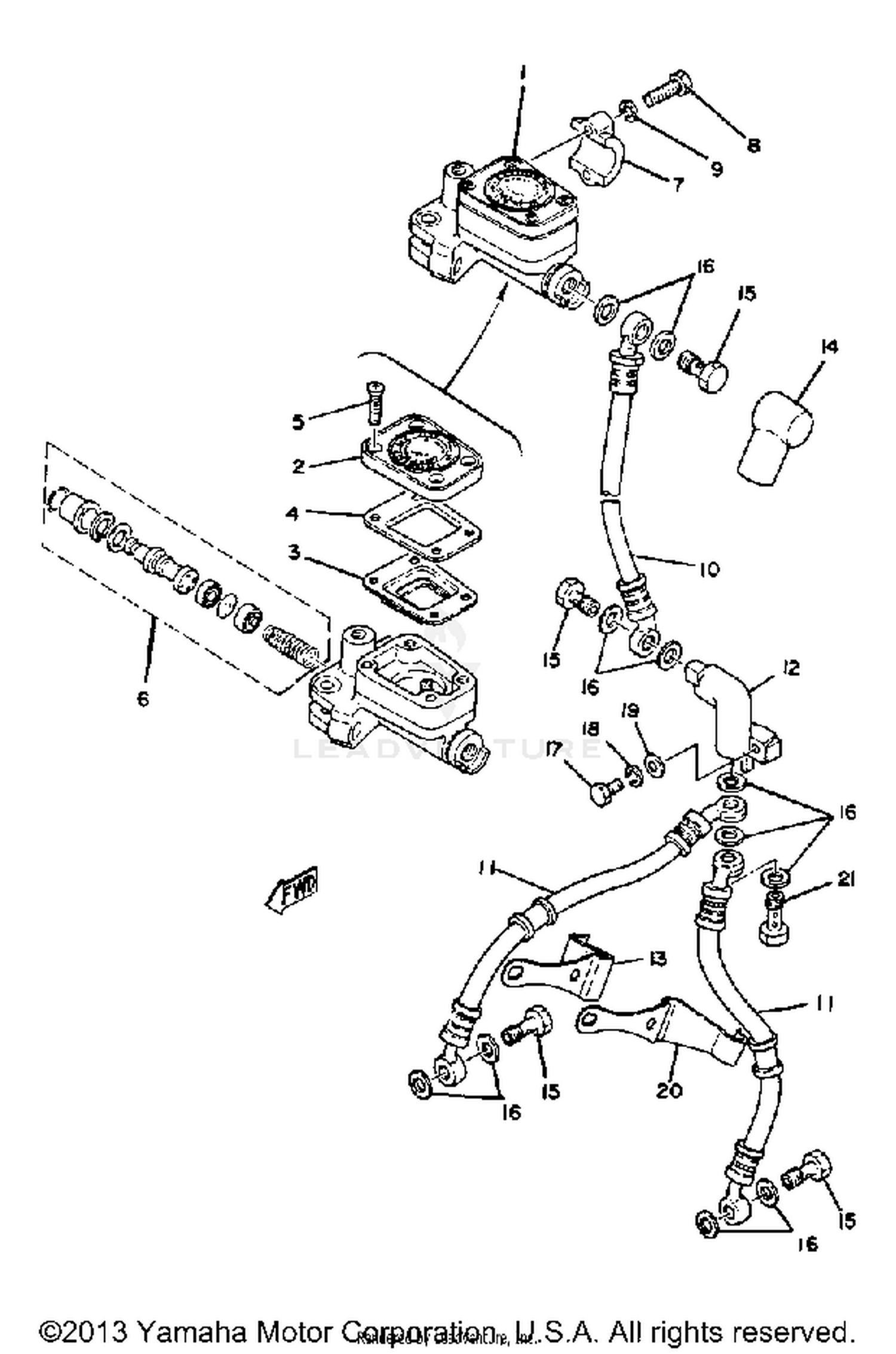

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
1J3-25850-23-00
|
$203.99 | ||
|
Unavailable |
|||
|
#2
RESERVOIR CAP ASSY
1J3-25852-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#3
DIAPHRAM, RESERVOIR
1J3-25854-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
1J3-25855-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#5
SCREW
2G2-25857-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#6
CYLINDER KIT, MASTER
1J3-W0041-20-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
1T4-25872-01-00
|
$20.14 | ||
|
Unavailable |
|||
|
#11
HOSE, BRAKE 2
1J7-25873-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#12
JOINT
1J7-25885-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#13
HOLDER, BRKE HOSE 1
1J7-25875-00-00
|
$9.44 | ||
|
Unavailable |
|||
|
#14
BOOT, MASTER CYLINDER
306-25862-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, BRKE HOSE 2
1J7-25876-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#21
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
