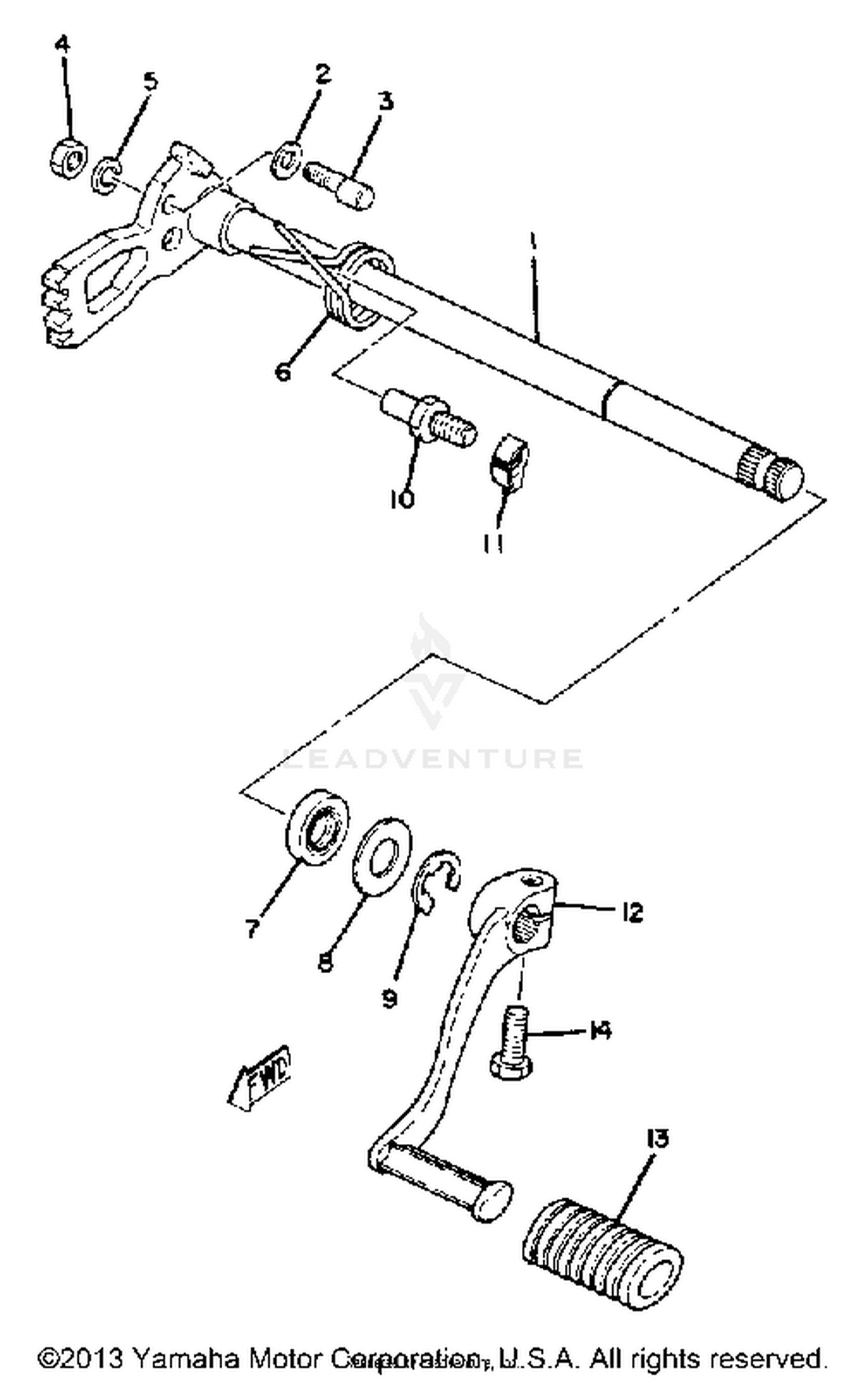

Shift Cam Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSEMBLY.1
1J7-18101-02-00
|
$44.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-06636-00
|
$2.40 | ||
|
Unavailable |
|||
|
#3
SCREW, SPEC''L SHAPE
90149-06142-00
|
$3.96 | ||
|
Unavailable |
|||
|
#4
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
90508-32052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-12575-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-08441-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, LOCK
248-18139-09-00
|
$5.86 | ||
|
Unavailable |
|||
|
#12
PEDAL, SHIFT
2J2-18111-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
