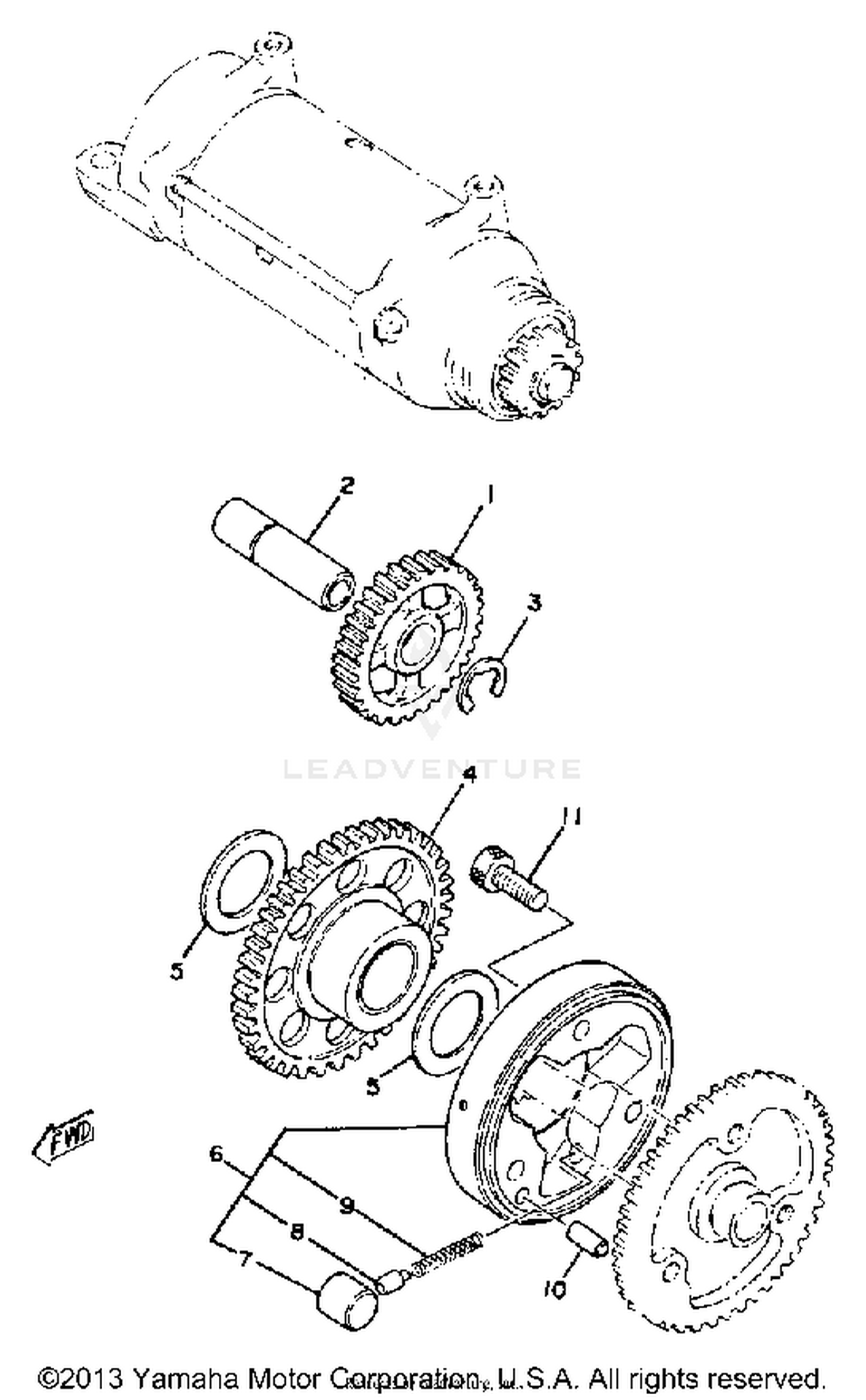

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1
3J2-15512-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#2
SHAFT 1
1J7-15521-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#3
CIRCLIP, E-TYPE
99001-15600-00
|
$2.40 | ||
|
Unavailable |
|||
|
#4
GEAR, IDLER 2
3J2-15517-00-00
|
$58.78 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-25291-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STR CLUTCH OTR ASSEMBLY
1J7-15580-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
93615-17125-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH SPRING
1J7-15583-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-04503-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93606-14081-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-08020-00
Superseded by 91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
