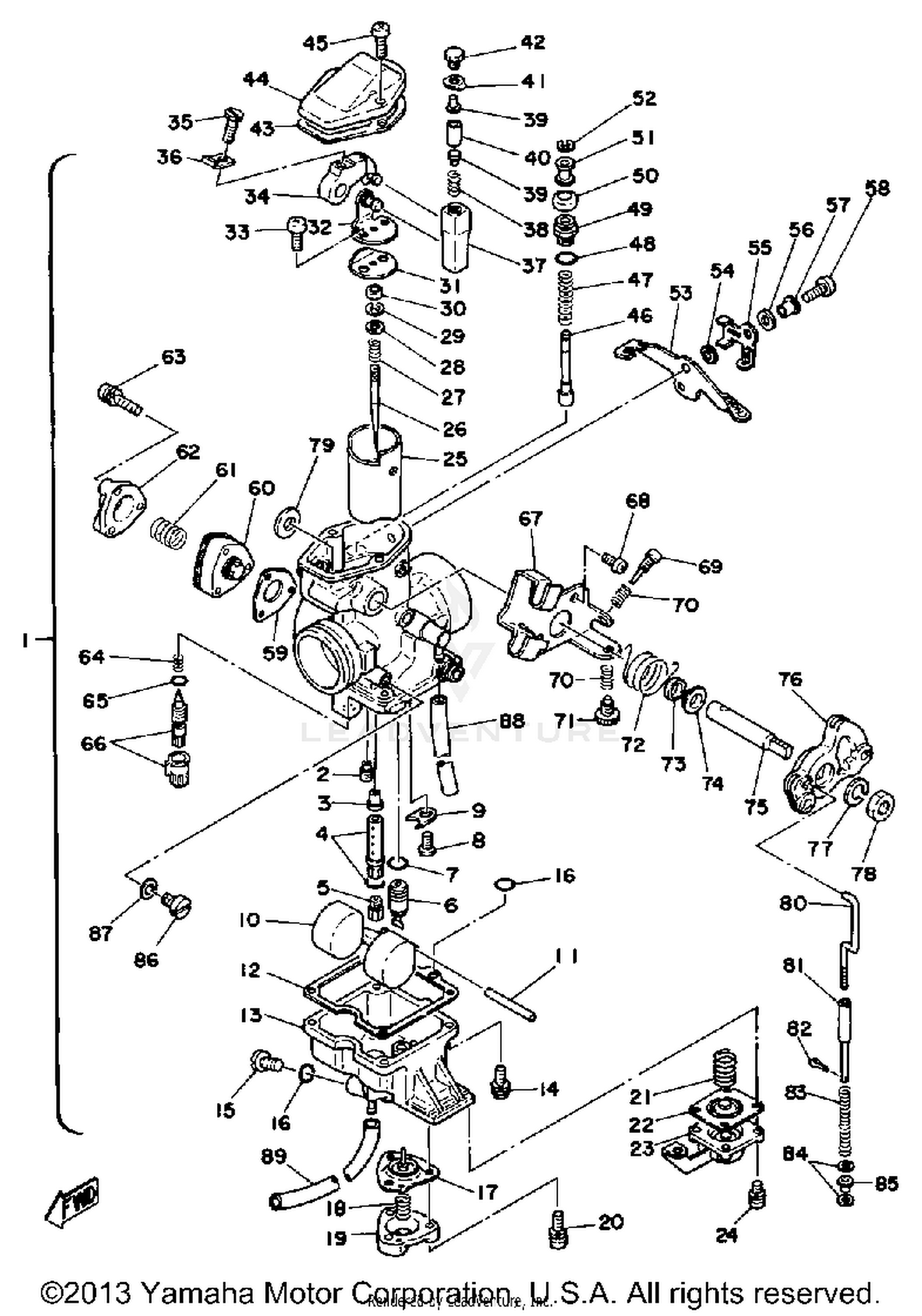

1979 Yamaha XT500 CARBURETOR - U - S - A - ONLY OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
2H0-14101-61-00
|
$227.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT 25
193-14142-25-A0
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE, MAIN
2H0-14141-50-00
|
$18.86 | ||
|
Unavailable |
|||
|
#4
PIPE
583-14148-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#230)
137-14143-46-A1
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE VALVE ASSEMBLY
2H0-14190-28-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
8F2-14147-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE
2H0-14146-00-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT
2H0-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#11
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, FLOAT CHMBR
2H0-14184-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY, FLOAT CHMBR 1
2H0-14181-11-00
|
$44.88 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, DRAIN
2H0-14191-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#16
O-RING
583-14561-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIAPHRAGM ASSEMBLY
2J2-14940-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, DIAPHRAGM
2J2-14933-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#19
COVER, DIAPHRAGM
2J2-14958-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#20
SCREW, PN/HD.W/WSHR
97602-04114-00
|
$0.35 | ||
|
Unavailable |
|||
|
#21
SPRING
2H0-14589-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#22
DIAPHRAGM ASSEMBLY
2H0-14940-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, STARTER
2H0-14905-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#24
SCREW,PANHEAD
97601-04112-00
Superseded by 98517-04012-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE, THROTTLE 1
2H0-14112-35-00
|
$41.87 | ||
|
Unavailable |
|||
|
#26
NEEDLE
239-14116-24-00
|
$8.06 | ||
|
Unavailable |
|||
|
#27
SPRING, THRTL VALVE
2H0-14131-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#28
WASHER, NEEDLE
2H0-14235-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#29
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RING
2H0-14194-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
SEAT, SPRING
2H0-14936-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#32
BRACKET 1
2H0-14291-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#33
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.60 | ||
|
Unavailable |
|||
|
#34
LEVER, THROTTL.VALV
583-14292-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#35
SCREW
583-14592-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
WASHER
583-14597-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#37
CONNECTOR
583-14274-00-00
|
$4.09 | ||
|
Unavailable |
|||
|
#38
SPRING, DIAPHRAGM
1T2-14933-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#39
WASHER
583-14558-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#40
PIN, FLOAT
583-14386-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#41
WASHER
583-14951-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#42
SCREW
583-14216-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#43
GASKET
583-14536-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
TOP, MIXING CHAMBER
583-14158-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#45
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLUNGER, STARTER
2H0-14171-00-00
|
$13.48 | ||
|
Unavailable |
|||
|
#47
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#48
O-RING
583-14562-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#49
CAP, PLUNGER
2H0-14174-00-00
|
$12.38 | ||
|
Unavailable |
|||
|
#50
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#51
RING
583-14918-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#52
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
LEVER, STARTER 1
2H0-14175-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#54
SPRING, CHOKE LEVER
2H0-14218-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#55
PLATE, STARTER LVR
2H0-14178-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#56
WASHER
2J2-14962-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#57
RING
2J2-14194-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#58
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
GASKET
2H0-14198-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
PUMP BODY ASSEMBLY.
2H0-14217-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
SPRING, DIAPHRAGM
2H0-14933-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#62
COVER, DIAPHRAGM
2H0-14958-00-00
|
$2.44 | ||
|
Unavailable |
|||
|
#63
SCREW, PN/HD.W/WSHR
97601-04125-00
|
$0.89 | ||
|
Unavailable |
|||
|
#64
SPRING, PILOT ADJUSTING
2H0-14212-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#65
O-RING
2H0-14147-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#66
SCREW, PILOT ADJUSTING
2H0-14211-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#67
BRACKET, THROTTLE
583-14571-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#68
SCREW, PAN HEAD
98580-05012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
SCREW, GUIDE
583-14245-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#70
SPRING, THRTL STOP
583-14133-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#71
SCREW, THRTL STOP
583-14121-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#72
SPRING, THRTL VALVE
583-14131-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#73
SEAL
583-14239-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#74
COLLAR
583-14265-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#75
SHAFT, THRTL LEVER
2H0-14215-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#76
BRACKET
2H0-14573-00-00
|
$13.14 | ||
|
Unavailable |
|||
|
#77
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#78
NUT
812-14594-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
SPACER
583-14264-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#80
ROD
2J2-14992-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#81
ROD
2H0-14992-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#82
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#83
SPRING
2J2-14589-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#84
WASHER
2H0-14227-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#86
PLUG, SCREW
2F5-14115-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#87
WASHER
584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#88
HOSE
90445-081F2-00
Superseded by 90445-08684-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#89
PIPE (43214-19700-00)
510-14197-00-00
|
$7.99 | ||
|
Unavailable |
|||
