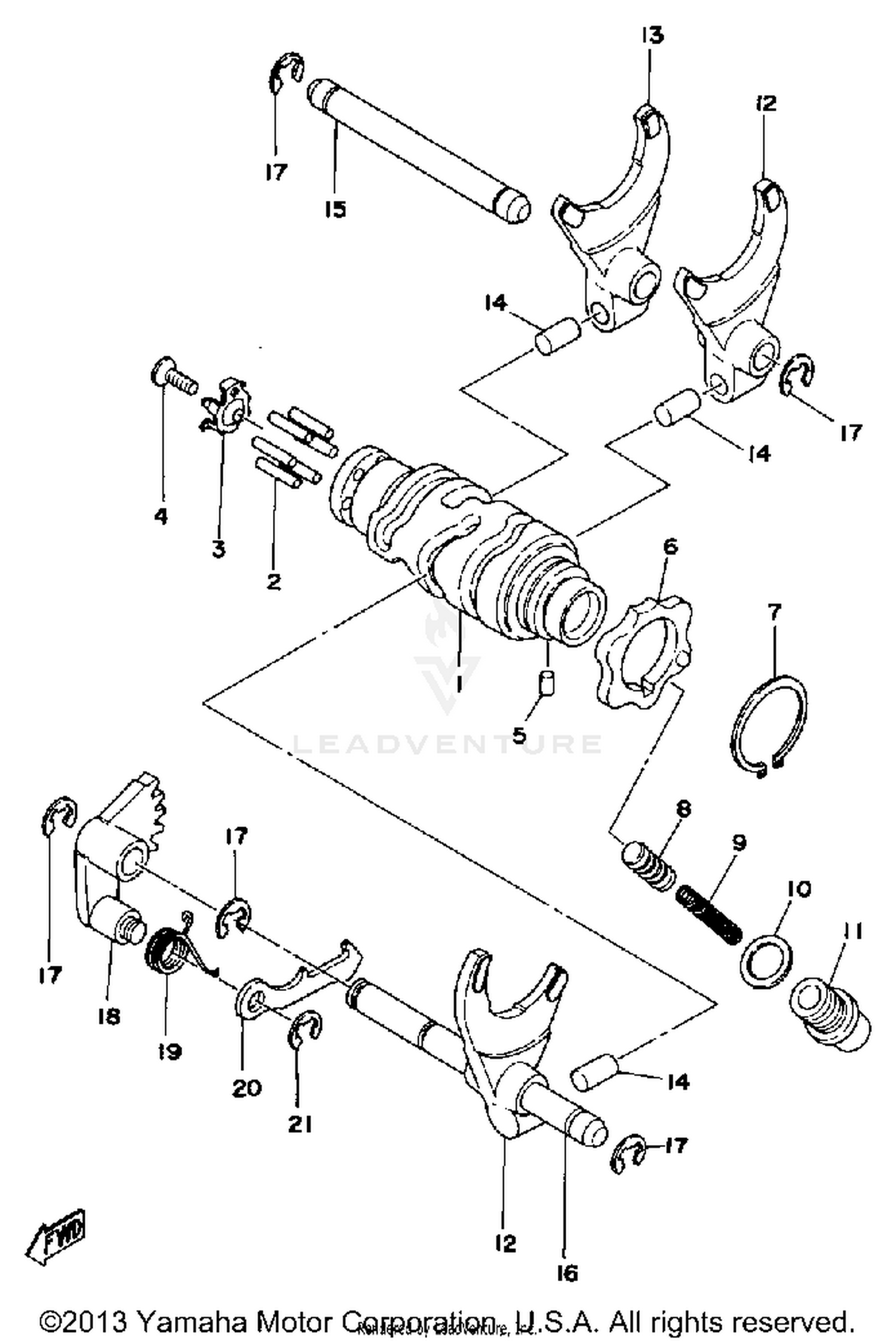

1979 Yamaha XT500 SHIFTER 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY (434-18541-0
434-18540-03-00
|
$97.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
93604-18100-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, SIDE 1
434-18561-00-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
93604-08071-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, STOPPER
1E6-18141-01-00
|
$8.68 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
99009-30400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, CAM
278-18547-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION
90501-10062-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, DRAIN
137-15353-00-00
Superseded by 4F4-14766-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90149-14031-00
Superseded by 90109-14002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FORK, SHIFT 1
364-18511-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FORK, SHIFT 1
363-18511-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, STRAIGHT
90250-08017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAR, SHIFT FORK GUIDE 2
363-18535-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, SHIF FRK GDE 1
363-18531-00-00
|
$8.42 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
99001-08600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, SHIFT 2
434-18122-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TORSION
90508-08334-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
LEVER, SHIFT 3
498-18151-03-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
99080-07600-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
