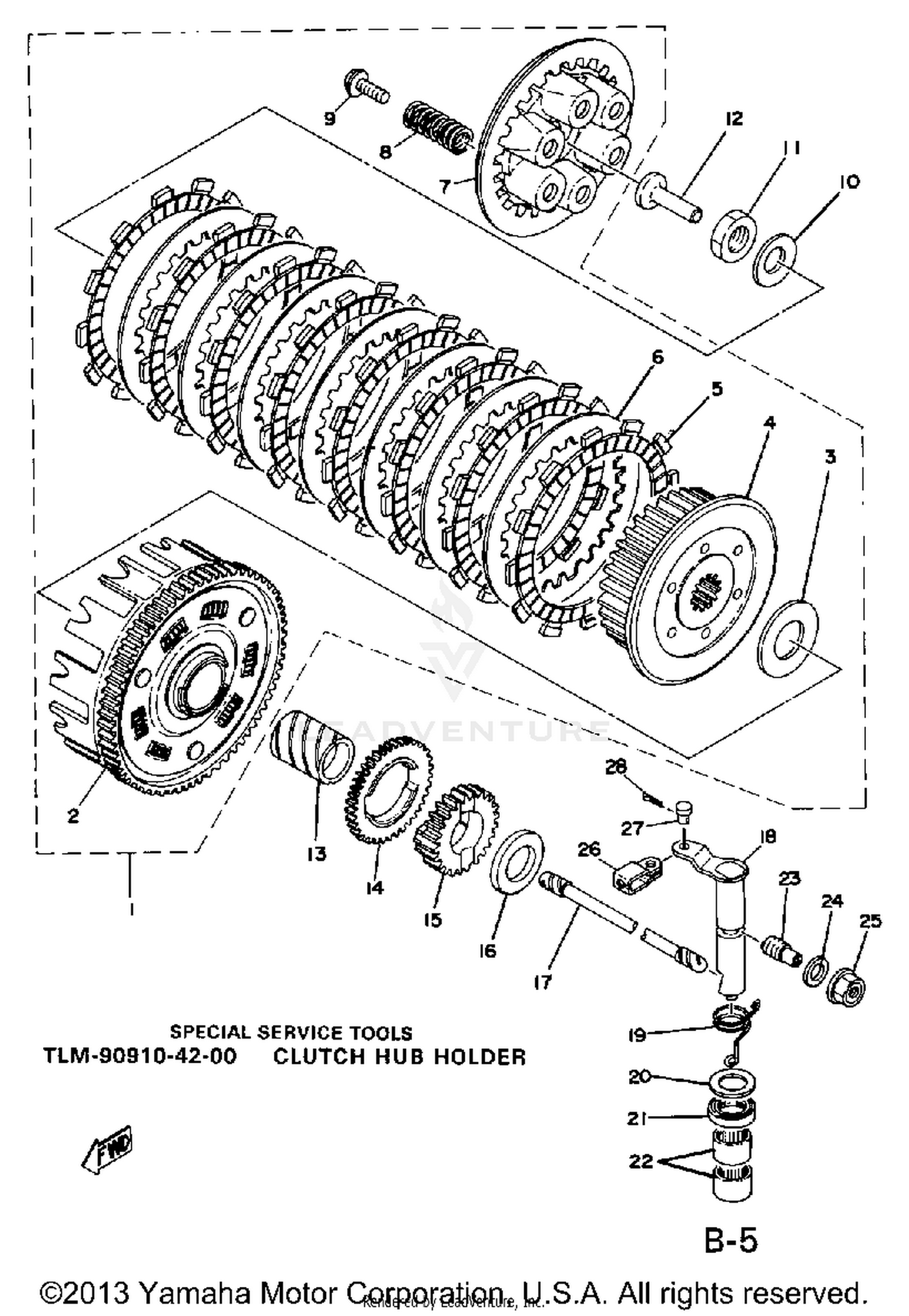

1979 Yamaha XT500 CLUTCH OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
583-16301-00-00
|
$96.94 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
583-16150-00-00
Superseded by 2J2-16150-00-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, THRUST 2
170-16164-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOSS, CLUTCH
583-16371-00-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION
5Y1-16321-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
360-16325-00-00
Superseded by 360-16325-10-00
|
$32.99 | ||
|
Unavailable |
|||
|
#7
PLATE, PRESSURE 1
498-16351-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-23391-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, WITH WASHER
90159-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, BELLEVILLE
214-16119-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEXAGON
90170-18086-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, PUSH 1
174-16356-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
90560-25153-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, PUMP DRIVE
583-13324-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, KICK PINION
583-15631-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#16
PLATE, THRUST 1
363-16154-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
583-16357-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
AXLE, PUSH LEVER
583-16381-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TORSION
90508-12279-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-17357-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93315-11720-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, ADJUSTING
364-16343-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-12172-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, ADJUSTING
583-16344-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, CLEVIS
90240-06005-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
