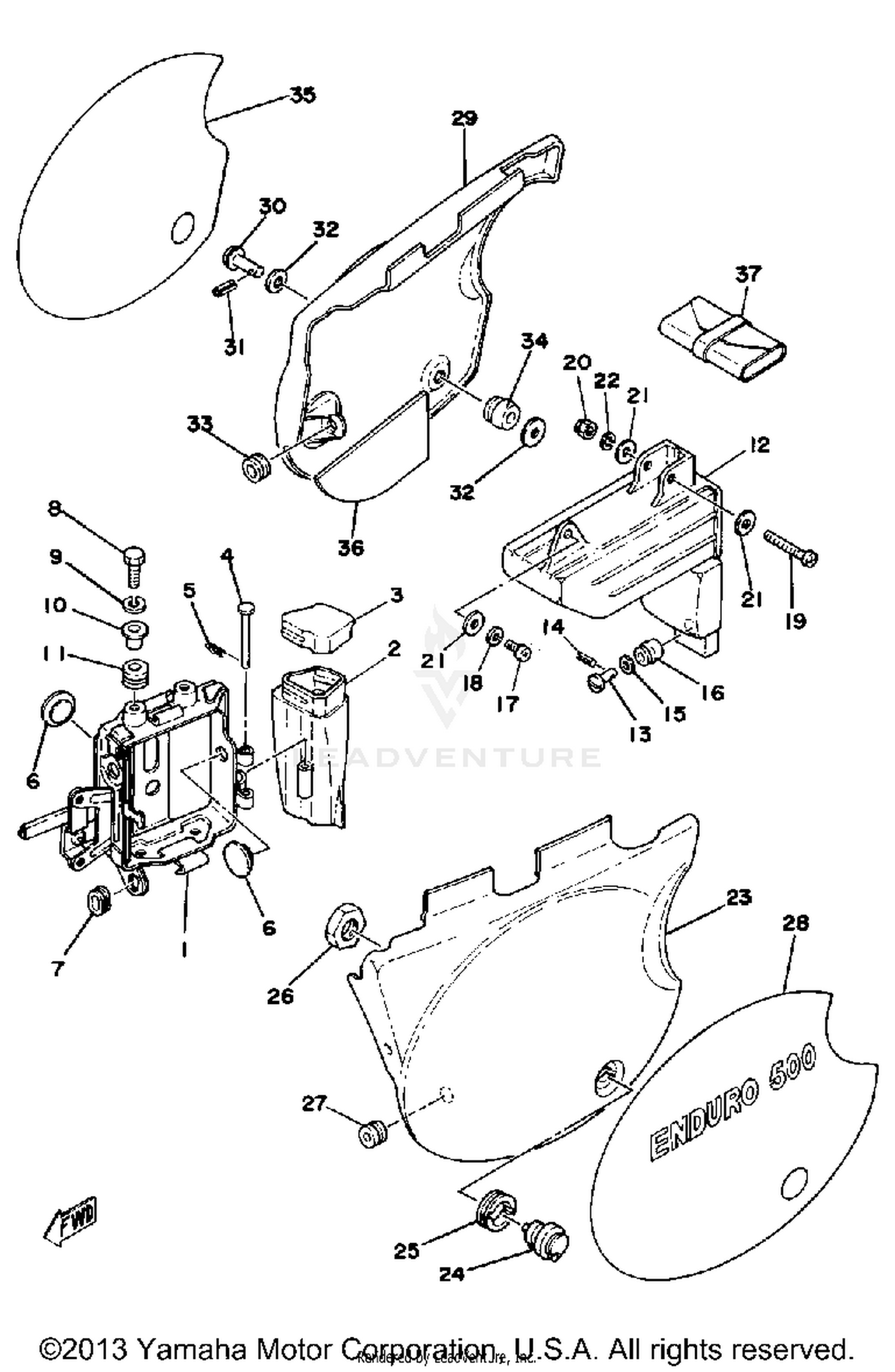

1979 Yamaha XT500 SIDE COVER - BATTERY BOX OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX, BATT.
2H0-21240-00-00
|
$80.35 | ||
|
Unavailable |
|||
|
#2
BOX
1E6-21245-00-00
|
$11.08 | ||
|
Unavailable |
|||
|
#3
CAP, TOOL BOX
1E6-21399-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
PIN, CLEVIS
91701-05055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90468-10050-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-01176-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-14023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX, TOOL
1T2-21171-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
KNOB, SIDE COVER 1
583-21714-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPRING
91609-25018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
583-21747-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98506-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98506-06045-00
Superseded by 98507-06045-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-063J2-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
COVER, SIDE 1
4T9-21711-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SIDE COVER LOCK ASSEMBLY
1E6-21708-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-24186-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90170-22187-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET
90480-01176-00
|
$10.49 | ||
|
Unavailable |
|||
|
#28
EMBLEM 6
2H0-21786-10-00
|
$7.06 | ||
|
Unavailable |
|||
|
#29
COVER, SIDE 2
4R9-21721-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
KNOB, SIDE COVER 1
583-21714-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
PIN, SPRING
91609-25018-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
DAMPER
583-21747-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
GROMMET
90480-01176-00
|
$10.49 | ||
|
Unavailable |
|||
|
#35
EMBLEM 7
2H0-21787-10-00
|
$7.06 | ||
|
Unavailable |
|||
|
#36
INSULATOR, SIDE CVR (1T1-2174A-
1T1-2174A-02-00
|
$16.49 | ||
|
Unavailable |
|||
|
#37
TOOL KIT (1E6-28100-10)
1E6-28100-10-00
Superseded by 1JN-W2810-00-00
|
$152.99 | ||
|
Unavailable |
|||
