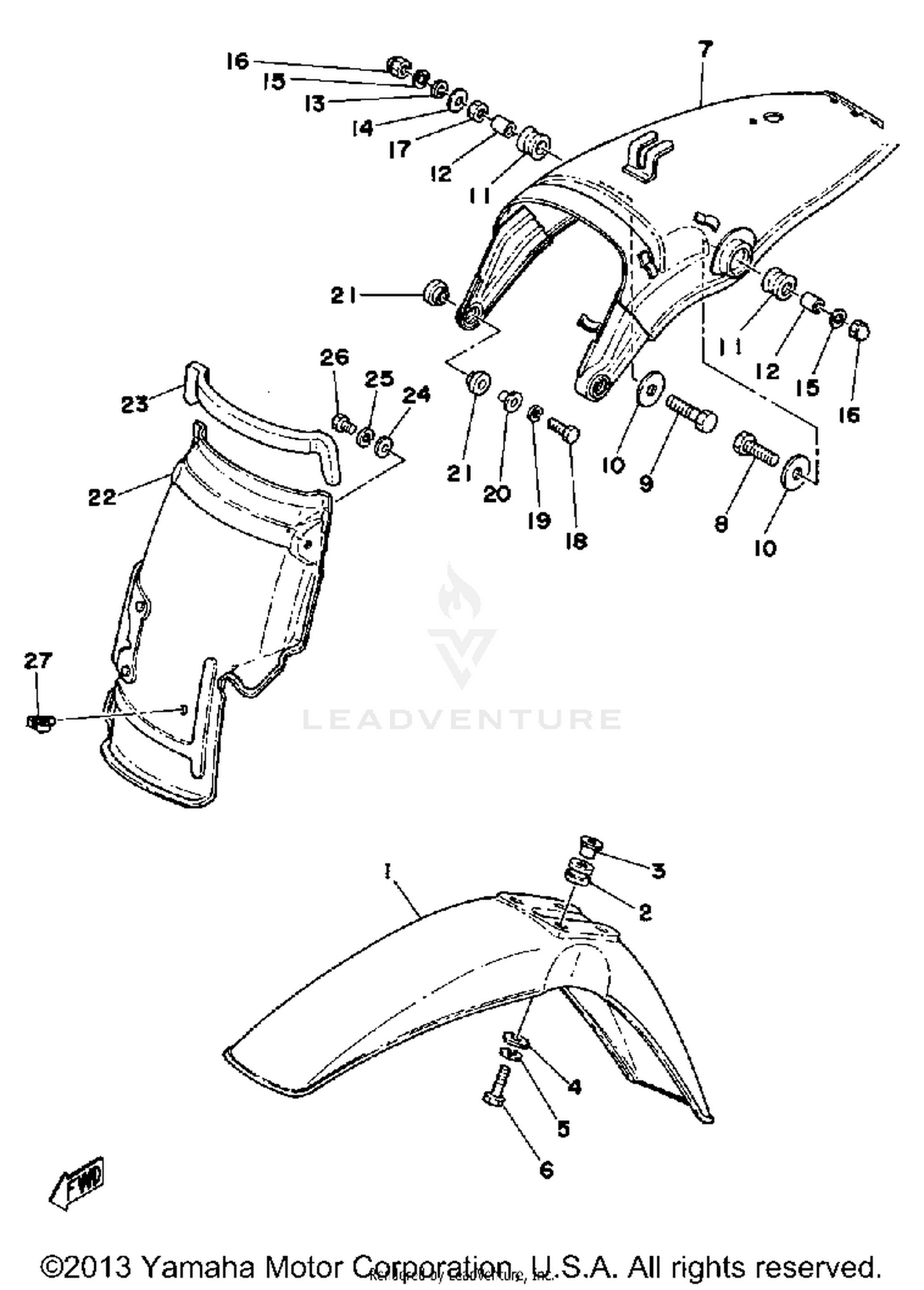

1979 Yamaha XT500 FRONT FENDER - REAR FENDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (583-21511-00)
583-21511-00-36
|
$68.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-14198-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
1U6-21610-00-36
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97313-08045-00
Superseded by 97013-08045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 2
168-21639-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08258-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-08200-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08326-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT (CROWN) (93501-08800-00)
95303-08800-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95333-08600-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#20
COLLAR
90387-07391-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER 1
322-21541-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD, MUD
1T1-21620-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER
583-21746-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-06571-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
