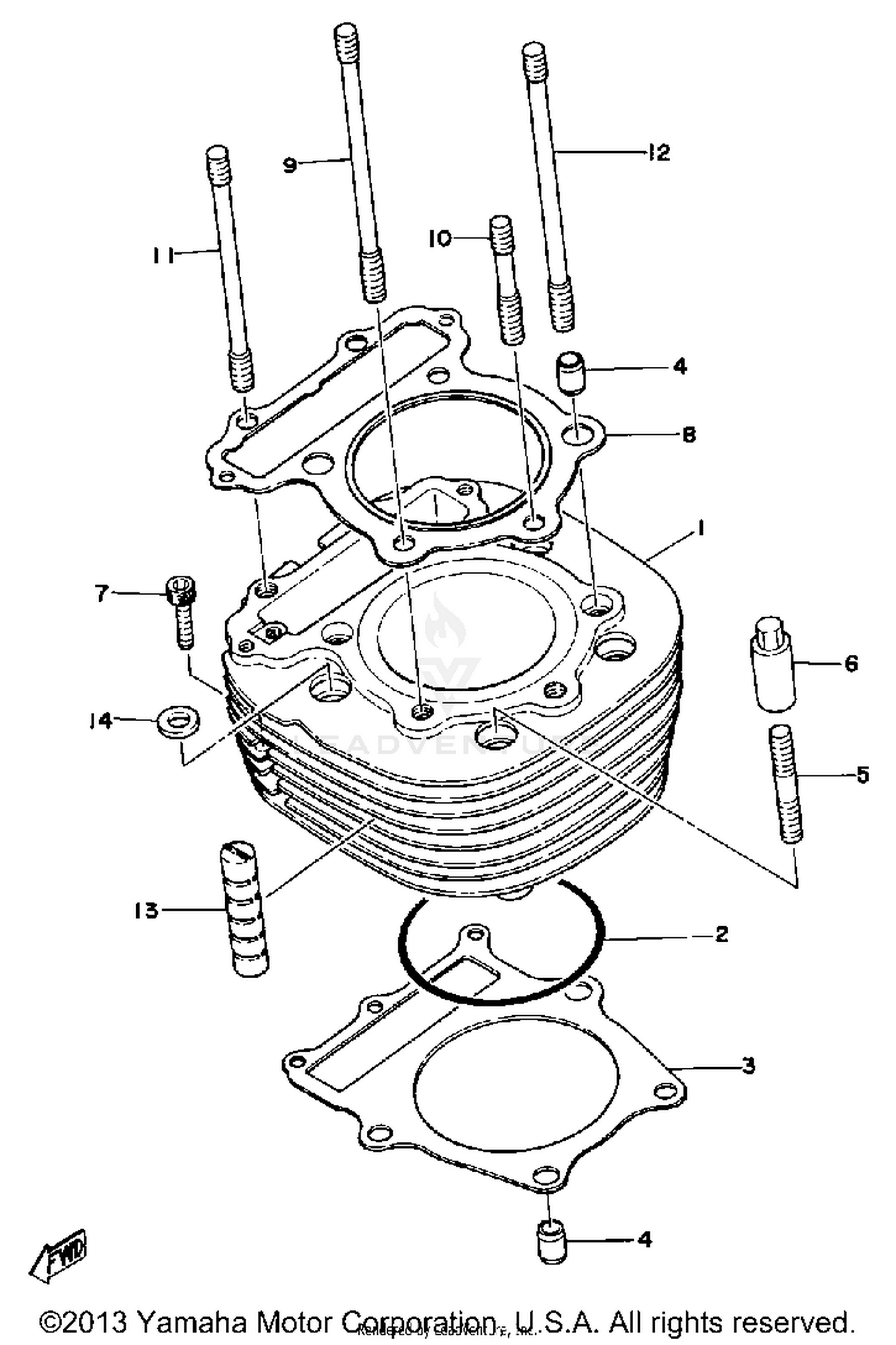

1979 Yamaha XT500 CYLINDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
583-11310-00-00
|
$605.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-92295-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GSKT, CYLN DR
583-11351-00-00
Superseded by 3HT-11351-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-14016-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-10087-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-10201-00
Superseded by 90179-10021-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GSKTKT XT/TT500E/F
2H0-00000-20-00
|
$18.45 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNAVAILABLE IN PRICE BOOK (583-
2J2-11181-01-00
|
|||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-10222-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-10223-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-08190-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-10225-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ABSORBER 3
583-11127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10590-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
