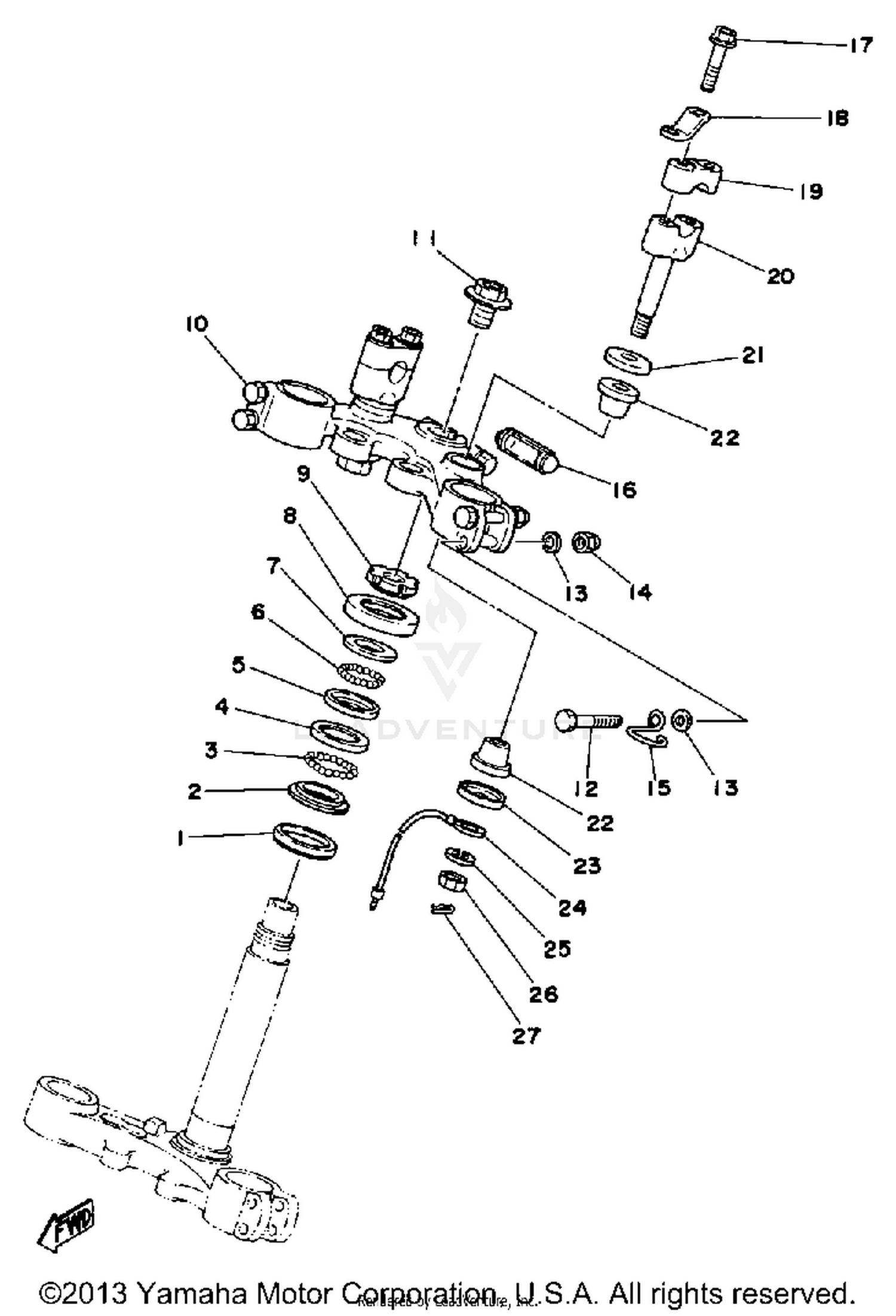

1979 Yamaha XT500 STEERING OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, DUST
164-23462-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL
93501-04011-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, BALL RACE 2
1T1-23416-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#9
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CROWN, HANDLE
2H0-23435-00-98
|
$60.42 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-14102-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (661)
97313-08055-00
Superseded by 97013-08055-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (CROWN) (93501-08800-00)
95303-08800-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, CABLE
4H7-23317-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#16
CAP, BOLT
583-23469-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08091-00
Superseded by 95814-08040-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, CABLE
1T2-23389-00-00
|
$4.20 | ||
|
Unavailable |
|||
|
#19
HOLDER, HANDLE UPPER
1E6-23441-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER,HANDLE LWR
1E6-23442-00-00
Superseded by 4AA-23442-01-98
|
$21.26 | ||
|
Unavailable |
|||
|
#21
WASHER, SPEC''L SHAP
90209-12143-00
|
$3.90 | ||
|
Unavailable |
|||
|
#22
HOLDER, DAMPER
1E6-23434-00-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPEC''L SHAP
90209-12143-00
|
$3.90 | ||
|
Unavailable |
|||
|
#24
WIRE, EARTH LEAD 1
3FU-83364-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90468-12006-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
