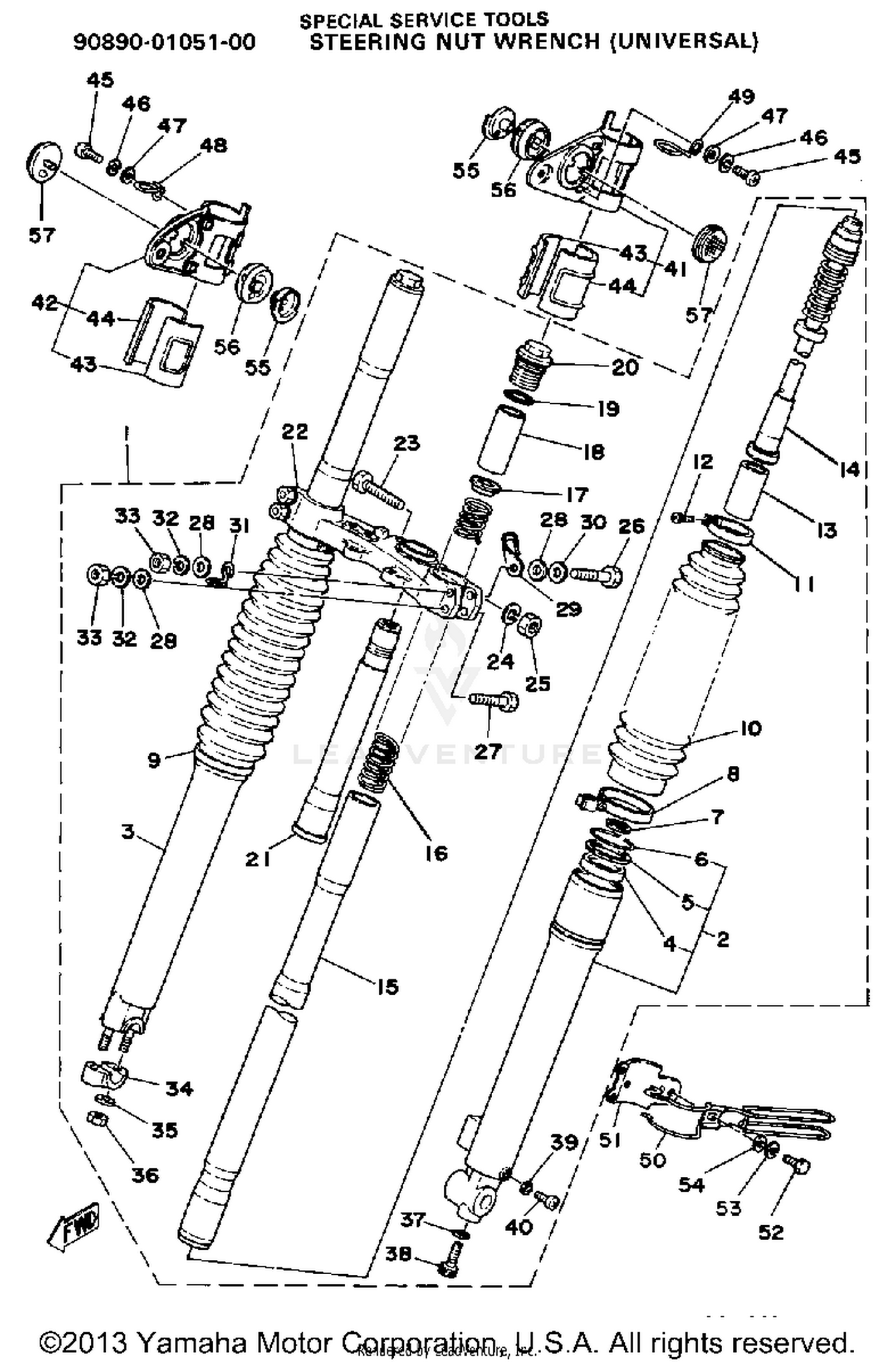

1979 Yamaha XT500 FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
1T2-23101-01-00
|
$381.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1T2-23126-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
1T2-23136-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
341-23146-50-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
341-23156-50-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, INNER
93450-30039-00
|
$2.39 | ||
|
Unavailable |
|||
|
#8
HOLDER, CABLE 1
1W1-23318-L0-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
BAND
509-23489-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#10
BOOT, FRONT FORK
509-23191-L1-00
|
$28.99 | ||
|
Unavailable |
|||
|
#11
BAND, BOOT
341-92090-60-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BOOT BAND
509-23194-L0-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON, FRONT FORK
583-23171-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#14
CYLINDER, FRTFRK
1T1-23170-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#15
TUBE, INNER 1
1T1-23124-00-00
|
$84.59 | ||
|
Unavailable |
|||
|
#16
SPRING, FRONT FORK
3Y1-23141-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#17
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#18
SPACER
1T2-23118-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#19
GASKET
240-23114-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CAP (583-23111-00)
2W6-23111-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#21
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#22
UNDER BRACKET
2H1-23340-00-33
|
$177.99 | ||
|
Unavailable |
|||
|
#23
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#26
BOLT
90101-08340-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90101-08340-00
|
$2.99 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90462-08024-00
|
$2.37 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.40 | ||
|
Unavailable |
|||
|
#31
HOLDER, CABLE
1E6-23317-10-00
|
$2.17 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, HEXAGON
90170-08180-00
|
$1.74 | ||
|
Unavailable |
|||
|
#34
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#35
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.40 | ||
|
Unavailable |
|||
|
#36
NUT, SELF-LOCKING
90185-08089-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
509-23158-L0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET, DRAIN PLUG
122-23129-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, PAN HEAD
98580-04008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, UPPER 1
1N5-23121-00-33
|
$20.99 | ||
|
Unavailable |
|||
|
#42
COVER, UPPER 2
1N5-23131-00-33
|
$20.99 | ||
|
Unavailable |
|||
|
#43
GASKET, UPPER CVR 1
1N5-23137-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#44
GASKET, UPPER CVR 2
1N5-23138-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#45
SCREW, PAN HEAD
98580-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#48
GUIDE, CABLE
1E6-23389-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#49
GUIDE, PIPE
1T2-24667-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#50
HOLDER, CABLE 1
1T2-23318-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#51
HOLDER, CABLE 2
1E6-23319-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#52
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Unavailable |
|||
|
#54
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#55
BRACKET, RFLCTR 1
1T2-85112-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#56
DAMPER, FLASHER 1
1E6-83321-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
REFLECTOR, FRONT 1
355-85111-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
