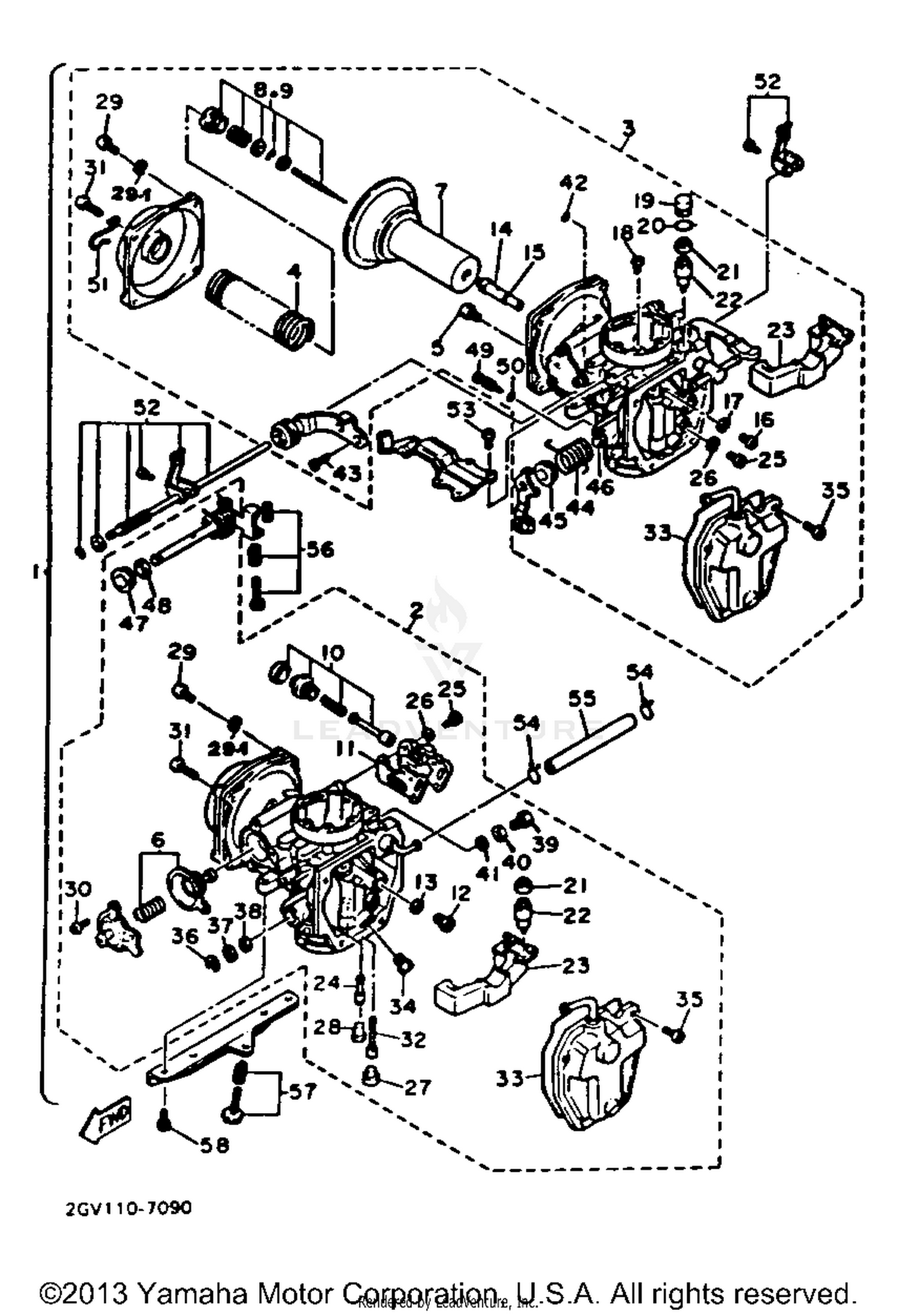

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY
2GV-14900-00-00
|
|||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY
2J-V1490-00-00
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASY 1
2JU-14901-01-00
Superseded by 2JU-14901-02-00
|
$766.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASY 2
2JU-14902-01-00
Superseded by 2JU-14902-02-00
|
$766.99 | ||
|
Unavailable |
|||
|
#4
SPRING, DIAPHRAGM
1FK-14933-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (#160)
3G2-14231-32-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIAPHRAGM SET 5
22U-1490H-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM ASSEMBLY
2GV-14940-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE SET
2GV-1490J-00-00
Superseded by 3BM-1490J-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEEDLE SET
2GV-1490J-10-00
Superseded by 3BM-1490J-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER SET
11H-1410A-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
22U-14536-00-00
Superseded by 3JB-14536-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
22U-14565-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NOZZLE, MAIN
2JU-14141-90-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
22U-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#18
JET, POWER (# 60)
3G2-14231-12-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP
41-R1411-80-10
|
|||
|
Unavailable |
|||
|
#20
O-RING
1FK-14147-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NEEDLE VALVE ASSEMBLY
22U-14190-15-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLOAT
22U-14985-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#24
JET, PILOT ( 32.5)
4G0-14142-32-A0
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#27
CAP
22U-14968-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
22V-14968-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
90157-05050-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE, MAIN BLEED
22U-1414G-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#33
O-RING
22V-14147-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
JET, MAIN (#137.5)
3G2-1423A-78-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
812-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
1A8-14953-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAL
22-U1499-70-00
|
|||
|
Unavailable |
|||
|
#39
PLUG, SCREW
341-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
26H-14952-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER
22-U1495-20-00
|
|||
|
Unavailable |
|||
|
#42
O-RING
93210-03119-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, FLAT HEAD
92680-06010-00
Superseded by 98780-06010-00
|
$2.10 | ||
|
Unavailable |
|||
|
#44
SPRING, THROTTLE 2
22-U1493-20-00
|
|||
|
Unavailable |
|||
|
#45
BODY, FLOAT CHAMBER
4U-81491-80-00
|
|||
|
Unavailable |
|||
|
#46
JET, MAIN
22-U1494-30-00
|
|||
|
Unavailable |
|||
|
#47
WASHER
341-14954-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
RING
4U8-14194-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#49
PLUG, DRAIN
2L1-14191-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP
2J-U1493-70-00
|
|||
|
Unavailable |
|||
|
#52
STARTER LEVER SET, 1
2JU-1490L-00-00
|
|||
|
Unavailable |
|||
|
#53
SCREW, PAN HEAD
98501-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
HOSE
31H-14987-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
UNAVAILABLE IN PRICE BOOK
22-U1490-K0-00
|
|||
|
Unavailable |
|||
|
#57
THROTTLE SCREW SET
22-U1410-30-00
|
|||
|
Unavailable |
|||
|
#58
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
