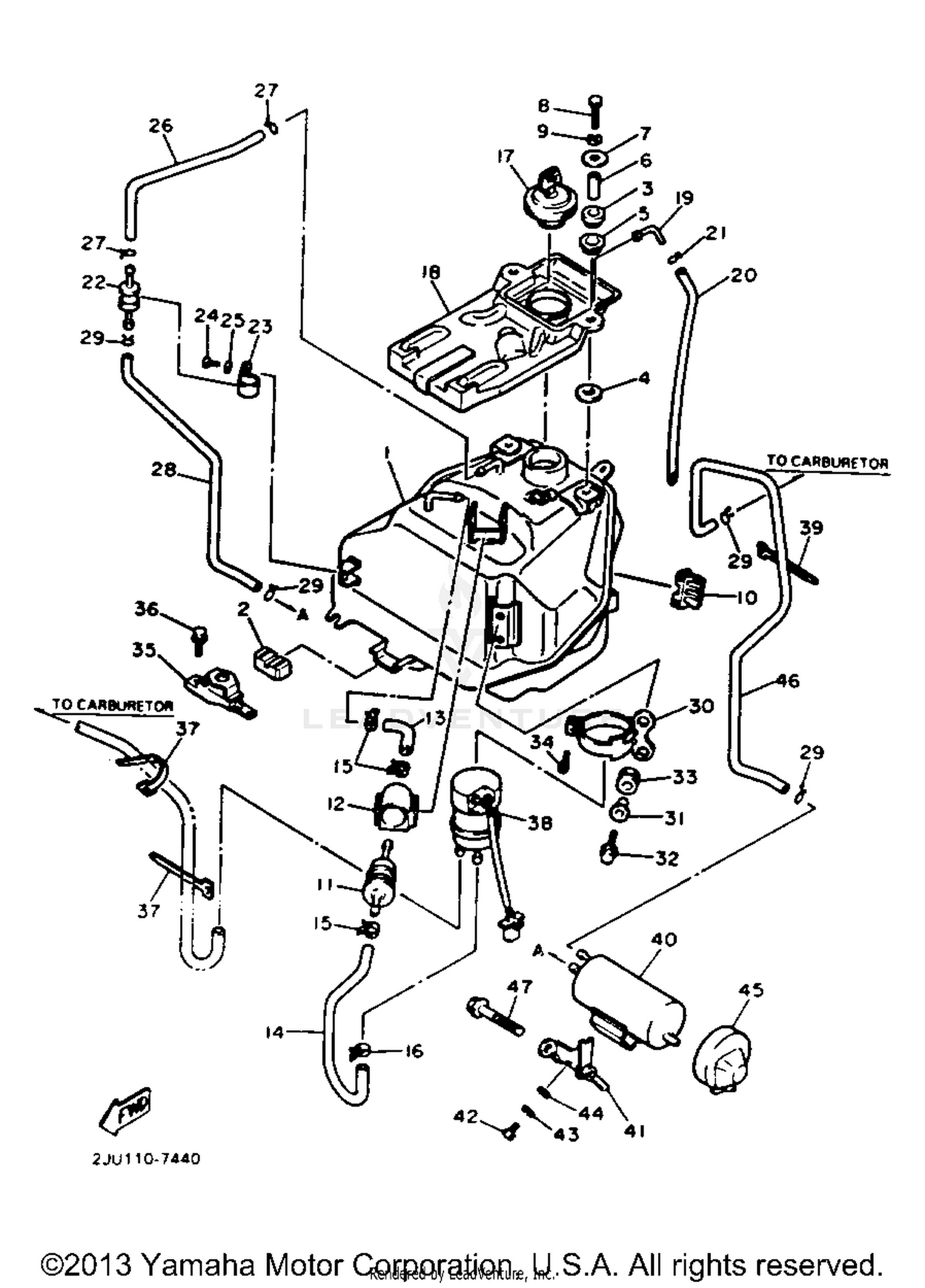

Fuel Tank California Model Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2GV-24110-00-33
|
$245.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 1
2GV-24181-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 2
1FK-24182-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 3
23T-24724-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
1FK-24186-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06387-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 4
2GV-24184-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#11
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FILTER
1FK-24566-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, FUEL 1
2GV-24311-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 2
2GV-24312-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP ASSY
47G-24650-00-00
Superseded by 54K-24602-10-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, FILLER
2GV-2414A-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#19
PIPE, JOINT 1
1FK-24376-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
90445-08376-00
Superseded by 90445-08684-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98501-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE 3
2G-V2431-30-00
|
|||
|
Unavailable |
|||
|
#27
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 4
2JU-24314-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
BRACKET, FUEL PUMP
2GV-24491-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98506-05016-00
Superseded by 98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, FUEL TANK 1
2GV-24191-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#36
BOLT, WITH WASHER
90119-06123-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
FUEL PUMP COMP.
1HX-13907-00-00
Superseded by 1HX-13907-01-00
|
$282.99 | ||
|
Unavailable |
|||
|
#39
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#40
CANISTER ASSY
2JU-24170-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER
2JU-2419A-00-00
|
$179.99 | ||
|
Unavailable |
|||
|
#42
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#44
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, CANISTER
2JU-2419E-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE 4
2JU-24314-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE
95806-10065-00
|
$1.33 | ||
|
Unavailable |
|||
