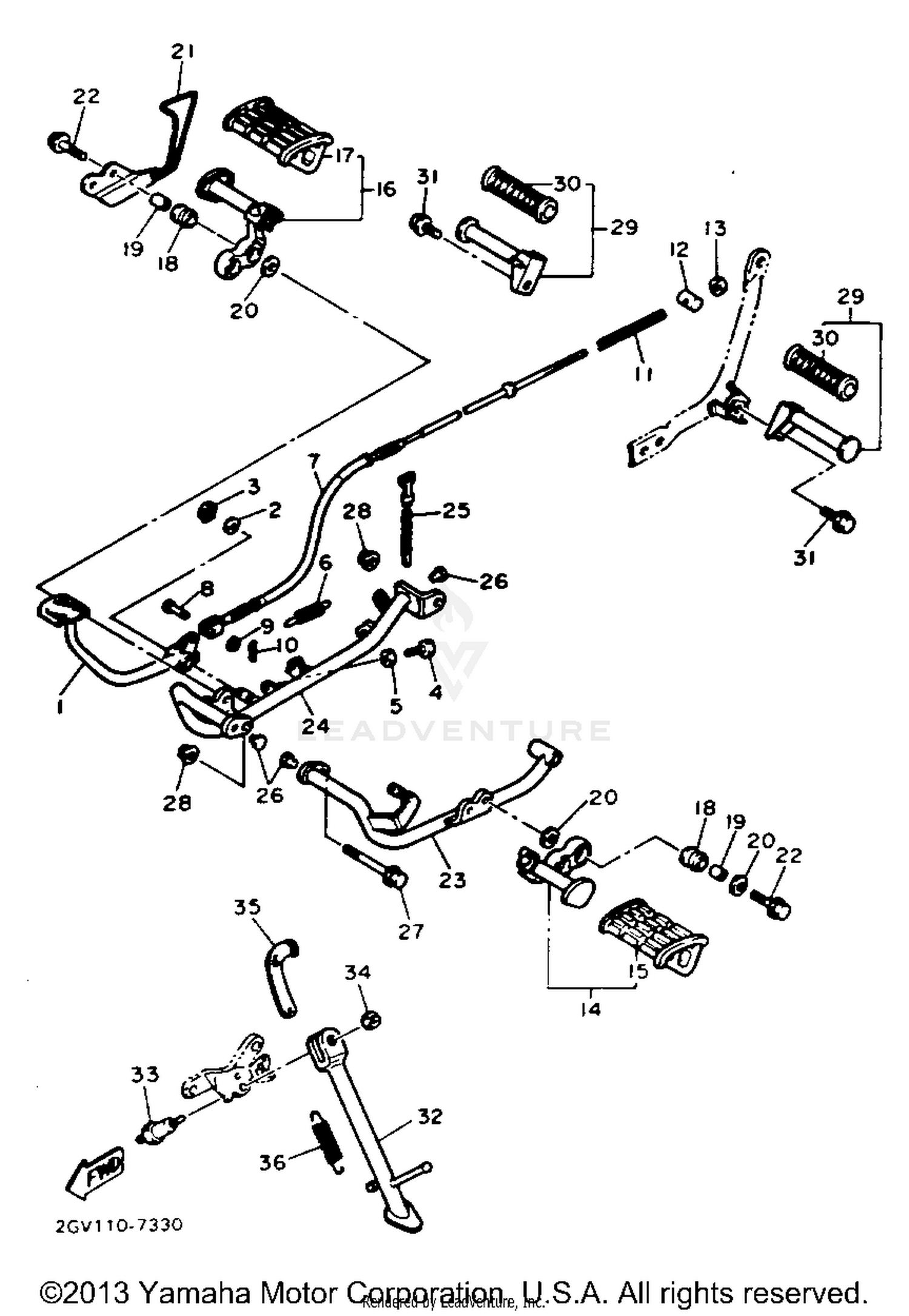

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2GV-27211-00-93
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-152L1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-06288-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-20380-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, BRAKE
2GV-26351-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
91701-06022-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06176-00
Superseded by 90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRT FOOTREST ASSEMBLY LASSEMBLY
2GV-27410-00-93
|
$137.99 | ||
|
Unavailable |
|||
|
#15
COVER, FOOTREST
4X7-27413-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FRT FOOTREST ASSEMBLY RASSEMBLY
2GV-27420-00-93
|
$134.99 | ||
|
Unavailable |
|||
|
#17
COVER, FOOTREST
4X7-27413-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#18
DAMPER, FOOTREST
4X7-27414-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-107A7-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PROTECTOR
2GV-27491-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90109-101A3-00
Superseded by 90109-100G0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR, FOOTREST 1
2GV-27471-00-00
Superseded by 2GV-27471-02-00
|
$216.99 | ||
|
Unavailable |
|||
|
#24
BAR, FOOTREST 2
2GV-27472-00-00
Superseded by 2GV-27472-02-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, WASHER BASED
90105-10312-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
RR FOOTREST ASSEMBLY 1ASSEMBLY
2GV-27430-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#30
COVER, REAR FOOTREST
120-27433-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAND, SIDE
2GV-27311-00-R4
|
$101.99 | ||
|
Unavailable |
|||
|
#33
BOLT
90109-10474-00
Superseded by 90109-104E6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
LINK, SIDE STAND
5H0-27315-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#36
SPRING, TENSION
90506-29266-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
