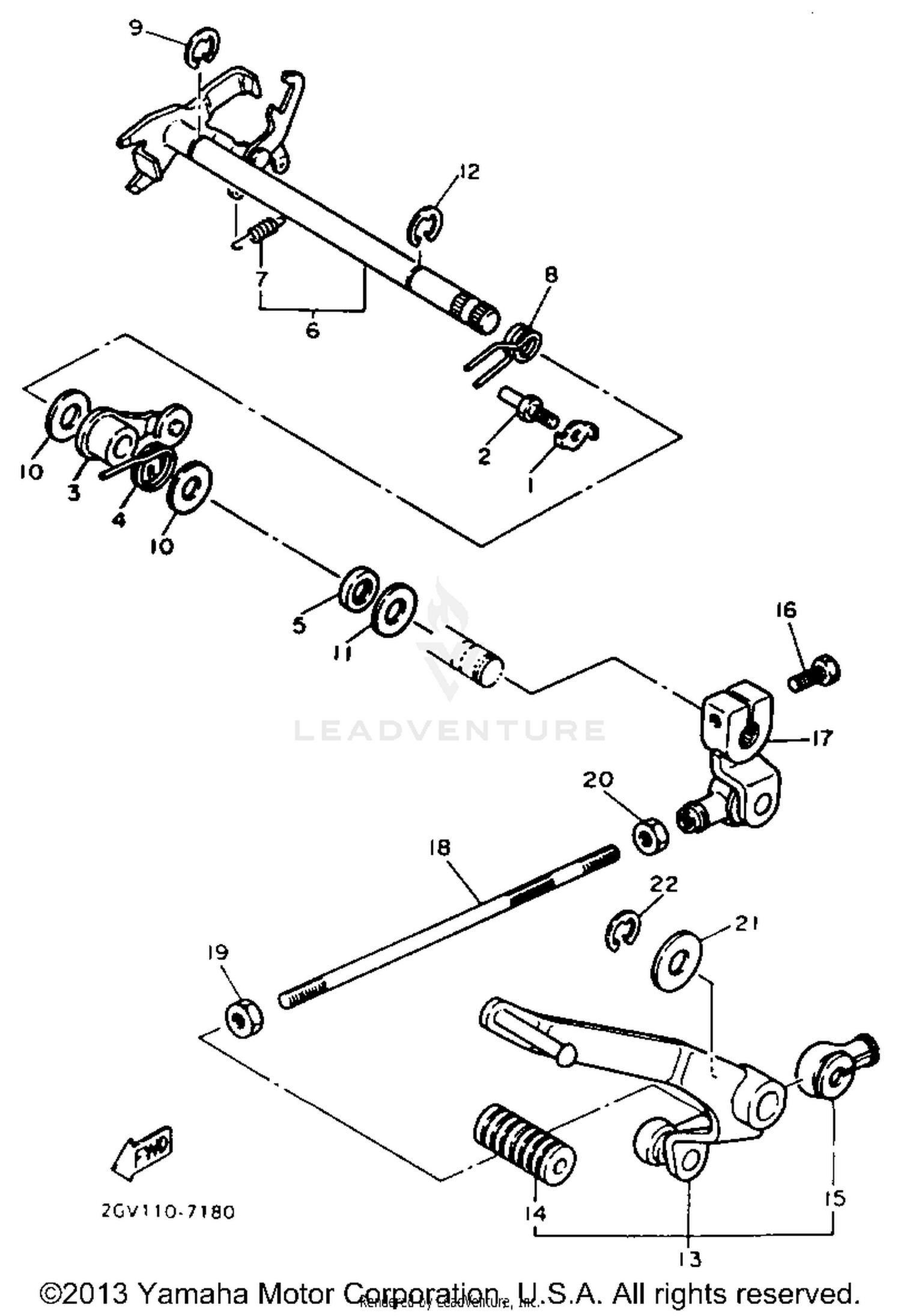

1987 Yamaha XV535T/C SHIFT SHAFT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, LOCK
90215-18178-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, SCREW
4G0-18127-00-00
Superseded by 5VK-18127-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER LEVER ASSEMBLY
11H-18140-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#4
SPRING, TORSION
90508-29519-00
|
$4.15 | ||
|
Unavailable |
|||
|
#5
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIFT LEVER ASSEMBLY
22U-18120-01-00
Superseded by 22U-18120-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#7
SPRING, TENSION
90506-08227-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TORSION
90508-32536-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99006-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-12575-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99006-10600-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
SHIFT PEDAL ASSEMBLY
2GV-18110-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, DUST
2H9-18154-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM, SHIFT
2GV-18112-00-00
Superseded by 4TR-18112-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, SHIFT
2GV-18115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95380-06700-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-124E4-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
99009-12400-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
