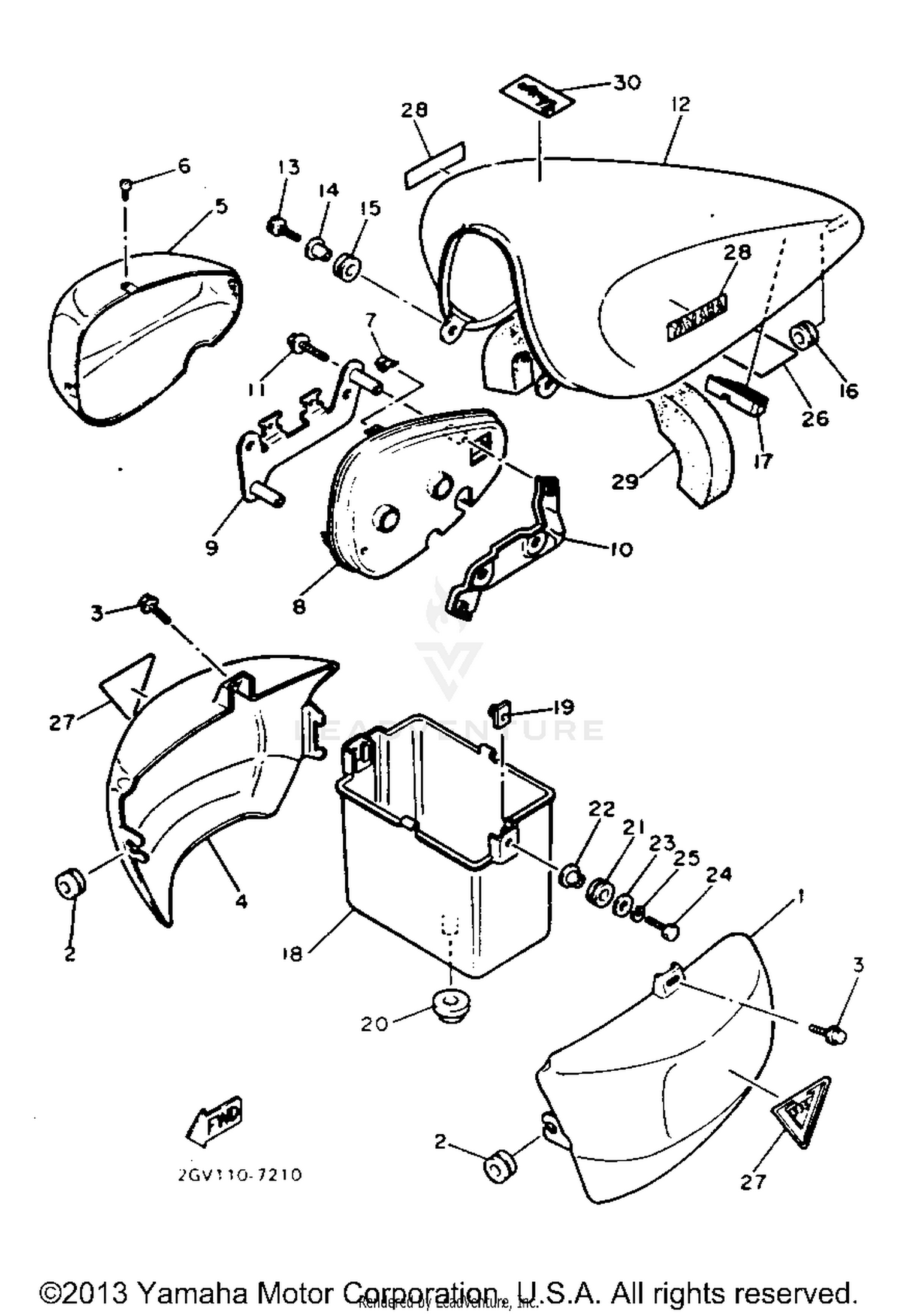

1987 Yamaha XV535T/C SIDE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SIDE 1
2GV-21711-00-KU
Superseded by 2GV-21711-00-MV
|
$92.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
2GV-21711-00-RL
|
$89.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-12320-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06123-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,SIDE 2
2GV-21721-00-KU
Superseded by 2GV-21721-00-MV
|
$89.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
2GV-21721-00-RL
|
$71.99 | ||
|
Unavailable |
|||
|
#5
COVER, SIDE 3
2GV-21731-00-93
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97701-40012-00
Superseded by 97704-40012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-04027-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL 1
2GV-2172A-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PANEL 2
2GV-2172F-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#10
STAY, SIDE COVER 2
2GV-2174E-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95816-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, TOP (2GV-2171A-00-KU)
2GV-Y217F-00-KU
|
$358.99 | ||
|
Unavailable |
|||
|
#
COVER, TOP (2GV-2171A-00-RL)
2GV-Y217F-00-RL
|
$340.99 | ||
|
Unavailable |
|||
|
#13
SCREW
90149-06264-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-12237-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-12053-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 4
2G-V2177-N0-00
|
|||
|
Unavailable |
|||
|
#18
BOX
2GV-21171-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
31A-14477-00-00
Superseded by 31A-14477-10-00
|
$1.55 | ||
|
Unavailable |
|||
|
#20
GROMMET
90480-22362-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-14229-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE SPECIFICATION
2JU-21687-70-00
|
$6.99 | ||
|
Unavailable |
|||
|
#
PLATE SPECIFICATION
2GV-21683-70-00
|
$5.00 | ||
|
Unavailable |
|||
|
#27
EMBLEM 1
2GV-21781-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
EMBLEM 1
2GV-21781-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
EMBLEM, YAMAHA
99225-00025-00
Superseded by 99245-00100-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER
2GV-21747-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#30
EMBLEM 2
2GV-24162-01-00
|
$33.99 | ||
|
Unavailable |
|||
