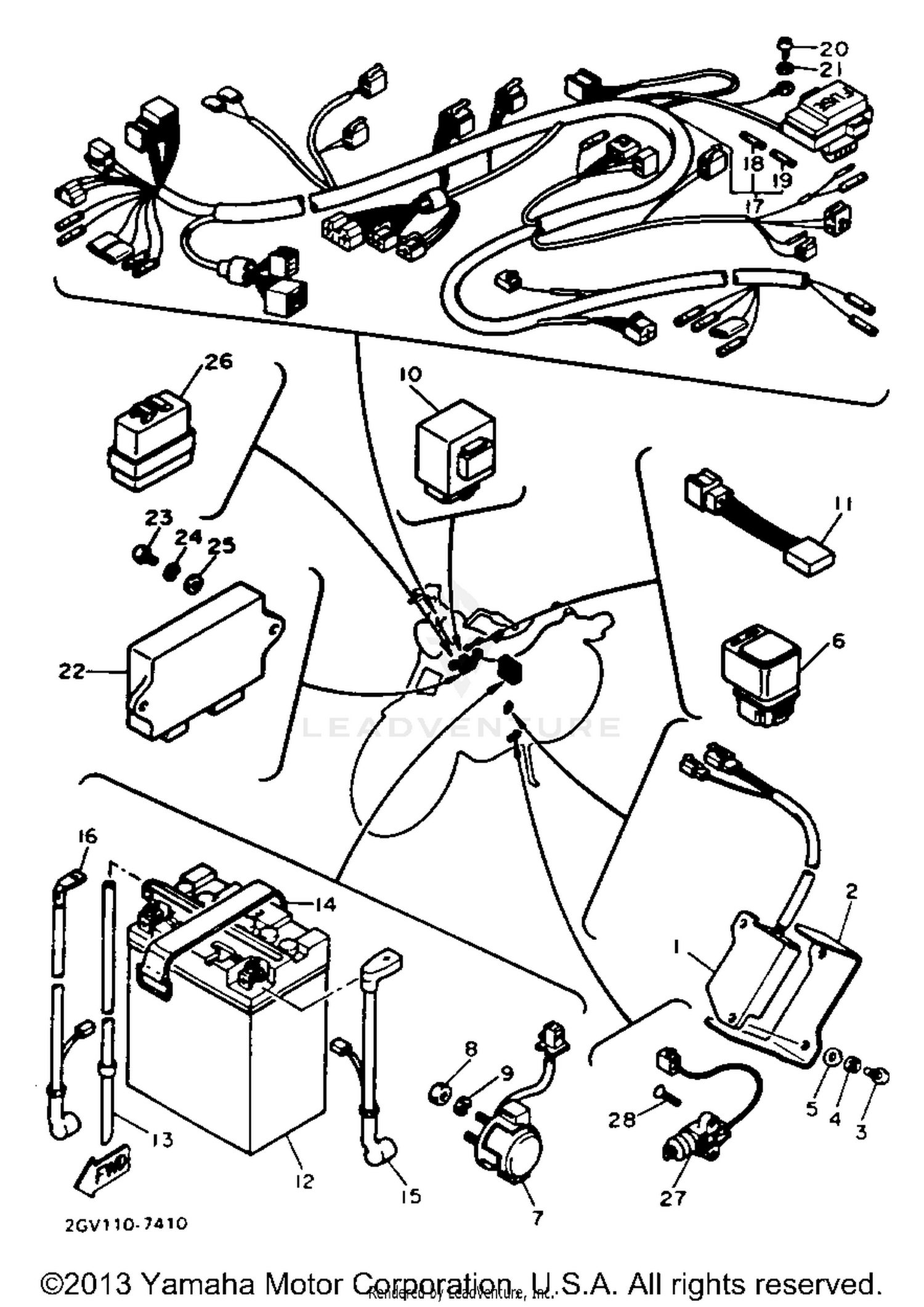

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSEMBLY
42X-81960-A1-00
|
$323.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, RECTIFR FTNG
2GV-81975-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$79.99 | ||
|
Unavailable |
|||
|
#7
STARTER RELAY ASSY (MS5D-611)
3AY-81940-00-00
Superseded by 4KD-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
42H-85740-00-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIODE ASSY
4U8-81980-M0-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
YB12ALA2 YUASA BATT
BTG-GM12A-Z3-A2
Superseded by YB1-2ALA2-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-08248-00
Superseded by 90445-08719-00
|
$10.99 | ||
|
Unavailable |
|||
|
#14
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, PLUS LEAD
2GV-82115-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, MINUS LEAD
2GV-82116-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE HARNESS ASSEMBLY
2GV-82590-00-00
|
$199.99 | ||
|
Unavailable |
|||
|
#18
FUSE (20A-BL)
2GV-82151-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE (10A-BL)
42X-82151-20-00
Superseded by 42X-82151-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#22
IGNITOR UNIT ASSEMBLY 1
2GV-82305-20-00
|
$676.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
92580-06020-00
Superseded by 98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#26
FLASHER RELAY ASSY
41R-83350-71-00
Superseded by 41R-83350-72-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SWITCH, SIDE STAND
5H0-82566-00-00
Superseded by 33E-82566-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT HEAD
90152-05016-00
Superseded by 98707-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
