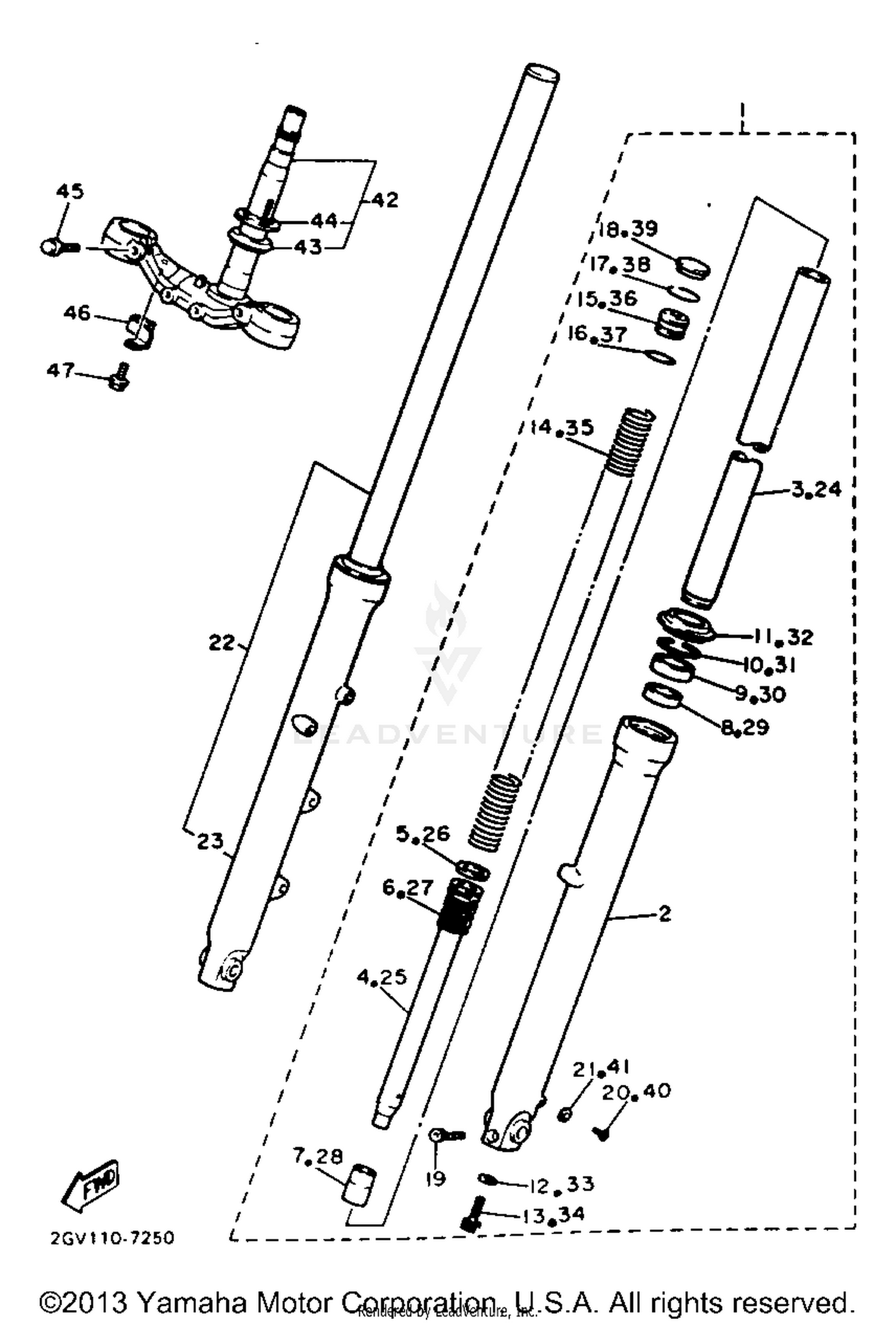

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L (L.H)
2GV-23102-00-00
|
$359.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
2GV-23126-00-35
|
$145.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP.1
2GV-23110-00-93
Superseded by 2GV-23110-01-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
2GV-23171-00-00
Superseded by 2GV-23171-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#5
RING, PISTON
1GU-23157-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
SPRING, REBOUND
1GU-23151-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
SPINDLE, TAPER
1GU-23173-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#8
METAL, SLIDE 1
2GV-23125-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
2AJ-23145-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, OIL SEAL
1HX-23156-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
2GV-23144-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-08155-00
Superseded by 90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
2GV-23141-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
1HX-23111-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-24709-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93450-32116-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, INNER TUBE
1HX-23154-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-08110-00
Superseded by 91314-08035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98501-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, DRAIN PLUG
5U8-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRT FRK ASY R
2NT-23103-00-00
Superseded by 3JB-23103-01-00
|
$627.99 | ||
|
Unavailable |
|||
|
#23
TUBE, OUTER 2
2GV-23136-00-35
|
$172.99 | ||
|
Unavailable |
|||
|
#24
INNER TUBE COMP.1
2GV-23110-00-93
Superseded by 2GV-23110-01-00
|
$190.99 | ||
|
Unavailable |
|||
|
#25
PISTON, FRONT FORK
2GV-23171-00-00
Superseded by 2GV-23171-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#26
RING, PISTON
1GU-23157-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
SPRING, REBOUND
1GU-23151-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
SPINDLE, TAPER
1GU-23173-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#29
METAL, SLIDE 1
2GV-23125-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
2AJ-23145-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#31
CLIP, OIL SEAL
1HX-23156-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#32
SEAL, DUST
2GV-23144-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#33
GASKET
90430-08155-00
Superseded by 90430-08143-00
|
$3.10 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
SPRING, FRONT FORK
2GV-23141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#36
BOLT, CAP
1HX-23111-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#37
O-RING
93210-24709-00
|
$8.49 | ||
|
Unavailable |
|||
|
#38
CIRCLIP
93450-32116-00
|
$1.05 | ||
|
Unavailable |
|||
|
#39
PLUG, INNER TUBE
1HX-23154-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#40
SCREW, PAN HEAD
98501-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#41
GASKET, DRAIN PLUG
5U8-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
UNDER BRACKET COMP.
3BR-23340-00-00
Superseded by 99999-03559-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE
95816-10035-00
Superseded by 95817-10035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOLDER, BRAKE HOSE
2GV-25886-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#47
BOLT,FLANGE
95826-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
