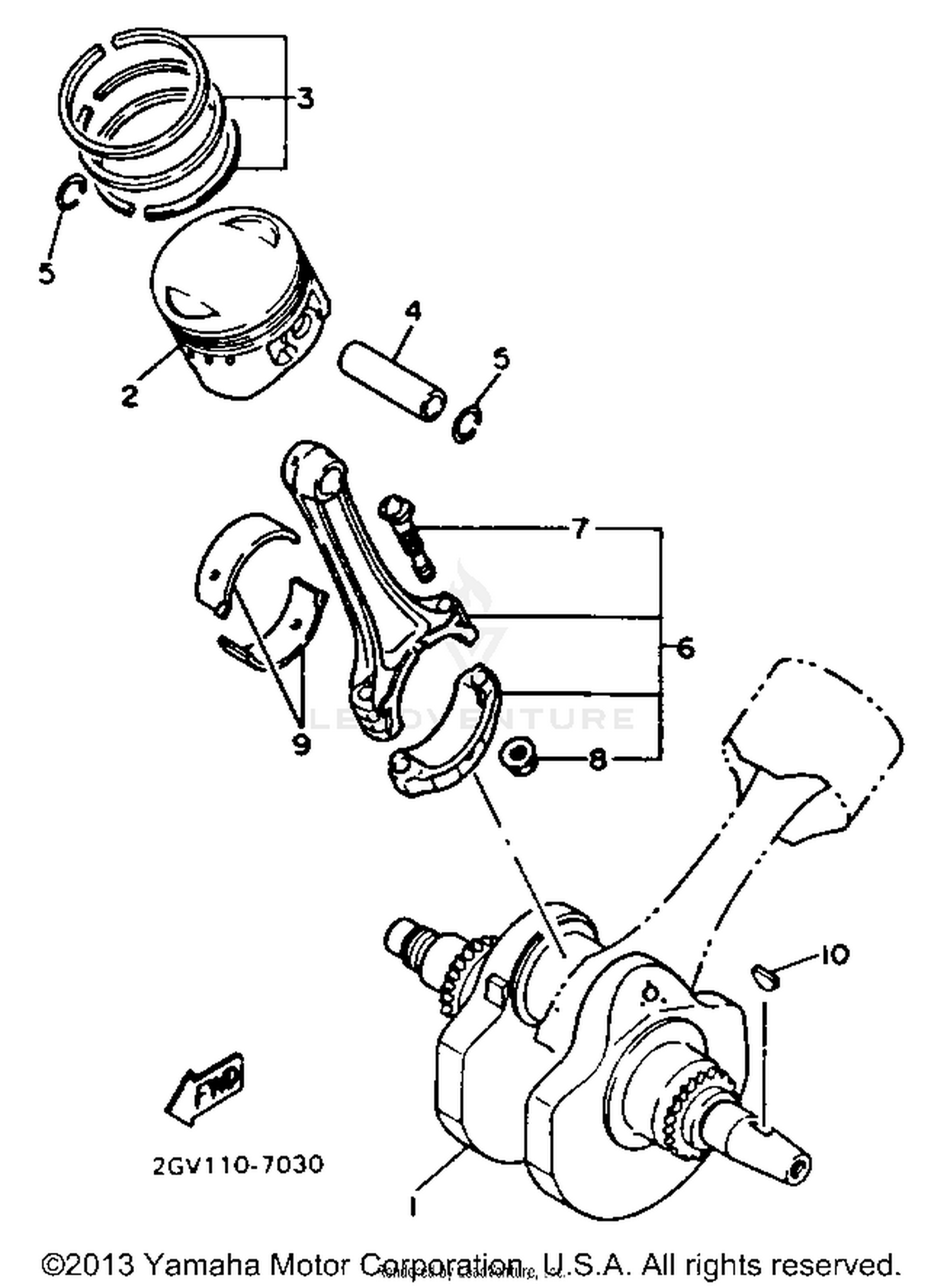

1987 Yamaha XV535T/C CRANKSHAFT PISTON OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
22U-11411-00-00
|
$664.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (1.00MM O/S)
2GV-11638-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#
PISTON (STD)
2GV-11631-00-C0
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
2GV-11636-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#3
PISTON RING SET (STD)
2GV-11610-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (1.00MM O/S)
2GV-11610-40-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
2GV-11610-20-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
22U-11633-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTING ROD ASSEMBLY
22U-11650-00-00
|
$217.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CONNECTING ROD
22U-11654-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-08327-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLANE BEARING, CONNECTING ROD
22U-11656-20-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
22U-11656-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
22U-11656-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CONNECTING ROD
22U-11656-30-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
