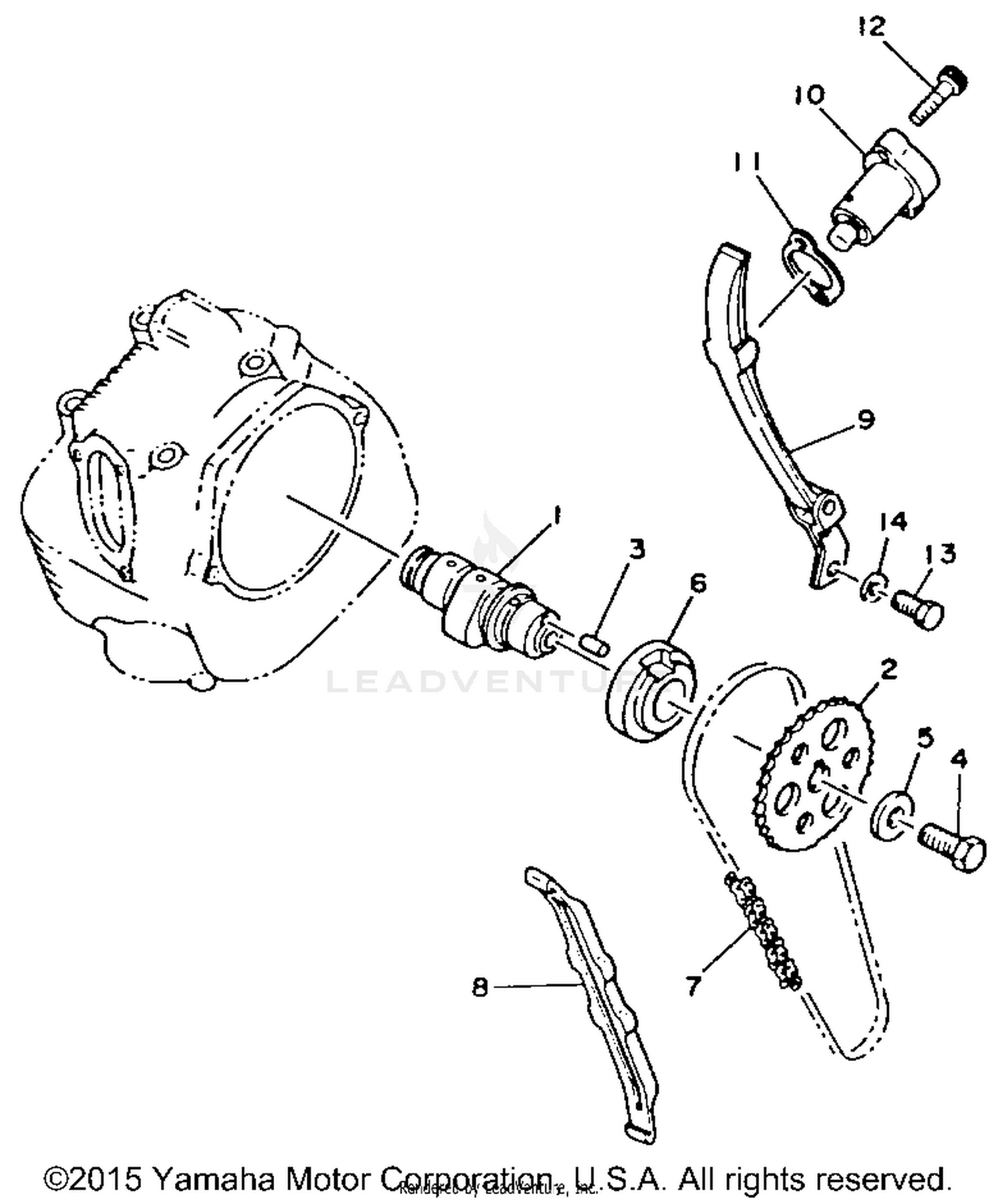

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
5N0-12171-10-00
Superseded by 5N0-12171-11-00
|
$124.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN (40T)
5H0-12176-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-255F3-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN (DID25SH 104L)
94580-41104-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, STOPPER 1
5H0-12231-00-00
Superseded by 5H0-12231-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 2
5N0-12241-00-00
Superseded by 5N0-12241-01-00
|
$54.99 | ||
|
Unavailable |
|||
|
#10
TENSIONER ASSY
2LN-12210-10-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, TENSIONER CASE
4BE-12213-00-00
Superseded by 4FM-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
