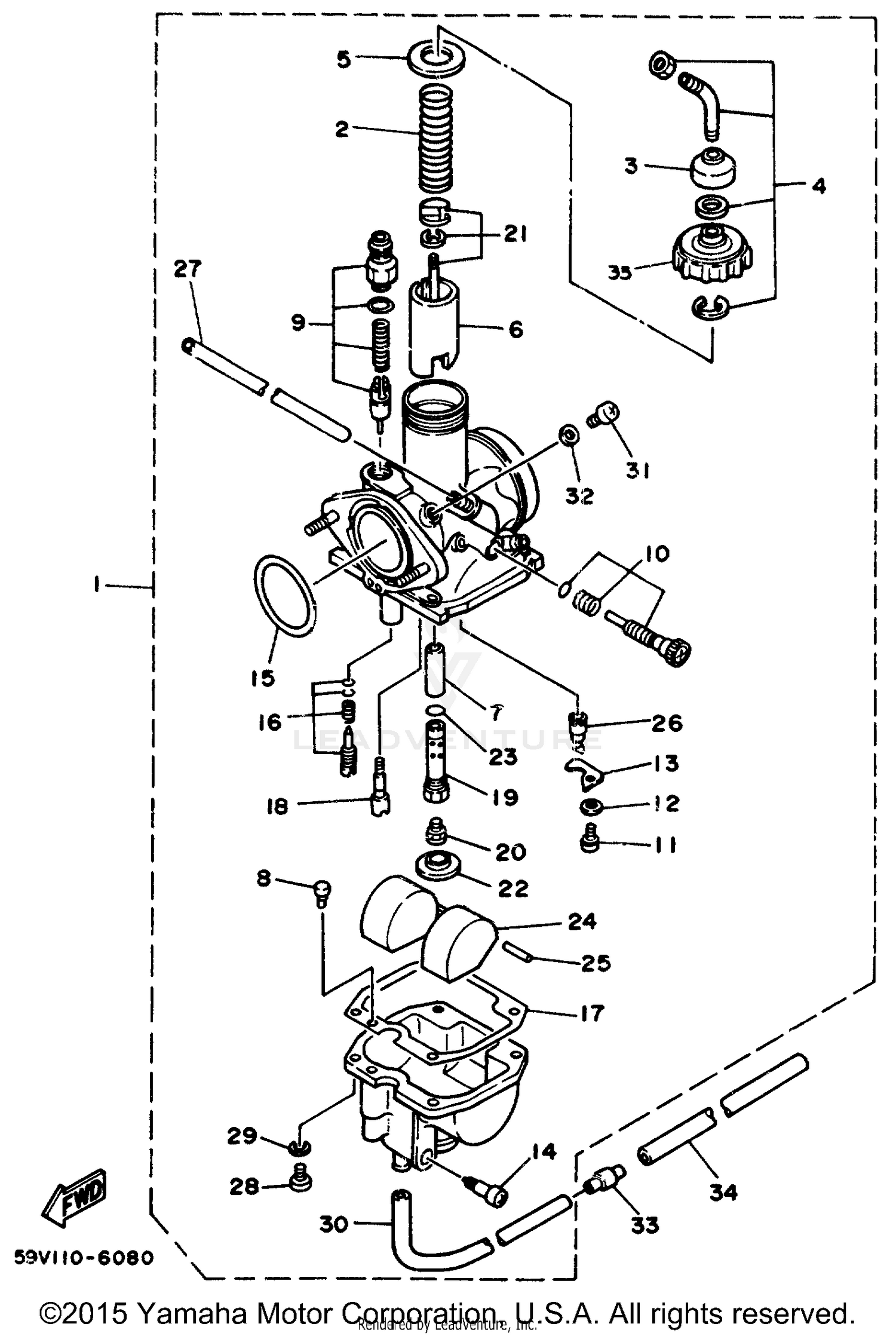

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARB ASY 1
59V-14101-00-00
Superseded by 59V-14101-02-00
|
$386.99 | ||
|
Unavailable |
|||
|
#2
SPRING, THROTTLE VALVE
21V-14131-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE ADJUST SCREW SET
29U-14106-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
4U5-14126-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, THROTTLE 1
59V-14112-35-00
Superseded by 4BD-14112-35-00
|
$120.99 | ||
|
Unavailable |
|||
|
#7
JET, HOLDER
21V-14148-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JET, STARTER
18M-14144-12-00
|
$19.49 | ||
|
Unavailable |
|||
|
#9
STARTER SET
21V-1410A-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROTTLE SCREW SET
18G-14103-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE
59V-14146-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#14
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
29U-14147-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PILOT SCREW SET
21V-14105-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, FLOAT CHAMBER
24W-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, PILOT (# 20)
22F-14142-20-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NOZZLE, MAIN
21V-14141-32-00
|
$16.49 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (112.5)
620-1423A-73-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE SET
29U-1490J-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE,BAFFLE
5V7-14153-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
583-14561-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLOAT
21V-14185-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
NEEDLE VALVE ASSY
21V-14190-18-00
Superseded by 5HH-14190-18-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, AIR VENT
59V-14197-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE
90445-08619-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
59V-14962-00-00
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE
24W-14193-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE
91A20-07010-00
Superseded by 91A21-07020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
TOP, MIXING CHAMBER
4U5-14158-00-00
|
$20.99 | ||
|
Unavailable |
|||
