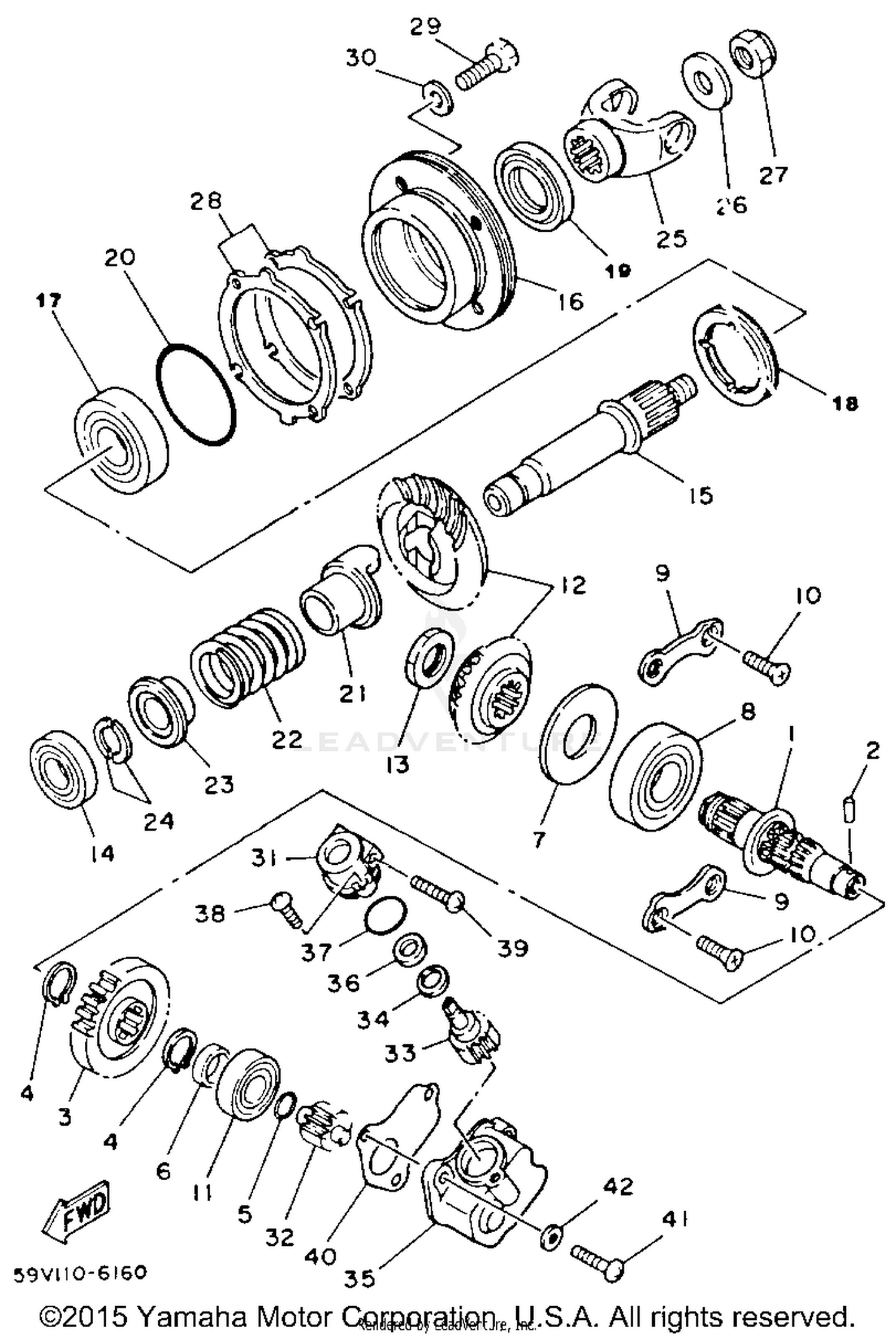

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT
59V-17523-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
93603-13185-00
|
$2.85 | ||
|
Unavailable |
|||
|
#3
GEAR, MIDDLE DRIVE
59V-17582-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-14155-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-177M4-00
|
$4.40 | ||
|
Unavailable |
|||
|
#7
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-30537-00
Superseded by 93306-30560-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BEARING COVER
11H-15383-01-00
Superseded by 11H-15383-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-08152-00
Superseded by 90149-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MIDDLE GEAR COMP
59V-Y1754-00-00
|
$234.99 | ||
|
Unavailable |
|||
|
#13
NUT
90179-18396-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-00435-00
Superseded by 93306-00423-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, MIDDLE DRIVEN
22U-17553-00-00
Superseded by 22U-17553-01-00
|
$231.99 | ||
|
Unavailable |
|||
|
#16
HOUSHING COMP.
59V-W1752-02-00
|
$249.99 | ||
|
Unavailable |
|||
|
#17
BEARING
93306-30560-00
|
$73.99 | ||
|
Unavailable |
|||
|
#18
NUT
90179-65305-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93101-35097-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-63514-00
Superseded by 93210-626A7-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAM, DRIVEN
22U-17527-00-00
Superseded by 22U-17527-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-60716-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER
22U-17524-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST
3H5-17529-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
YOKE, JOINT
22U-17556-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-14633-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHIM, PINION (0.2T)
59V-17531-00-20
Superseded by 59V-17531-20-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.4T)
59V-17531-40-00
|
$3.30 | ||
|
Unavailable |
|||
|
#
SHIM, PINION (0.1T)
59V-17531-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.2T)
59V-17531-20-00
|
$2.50 | ||
|
Unavailable |
|||
|
#
SHIM, PINION (0.3T)
59V-17531-30-00
|
$3.40 | ||
|
Unavailable |
|||
|
#29
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOUSING, TACHOMETER GEAR
59V-17811-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, DRIVE
59V-17831-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEAR, DRIVEN
59V-17841-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-12M34-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, OIL PUMP
2HT-15416-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#36
OIL SEAL
93102-08307-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
93210-24253-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW,PAN HEAD
92506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET, CARB COVER
59V-15453-01-00
Superseded by 59V-15453-02-00
|
$4.00 | ||
|
Unavailable |
|||
|
#41
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-063F3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
