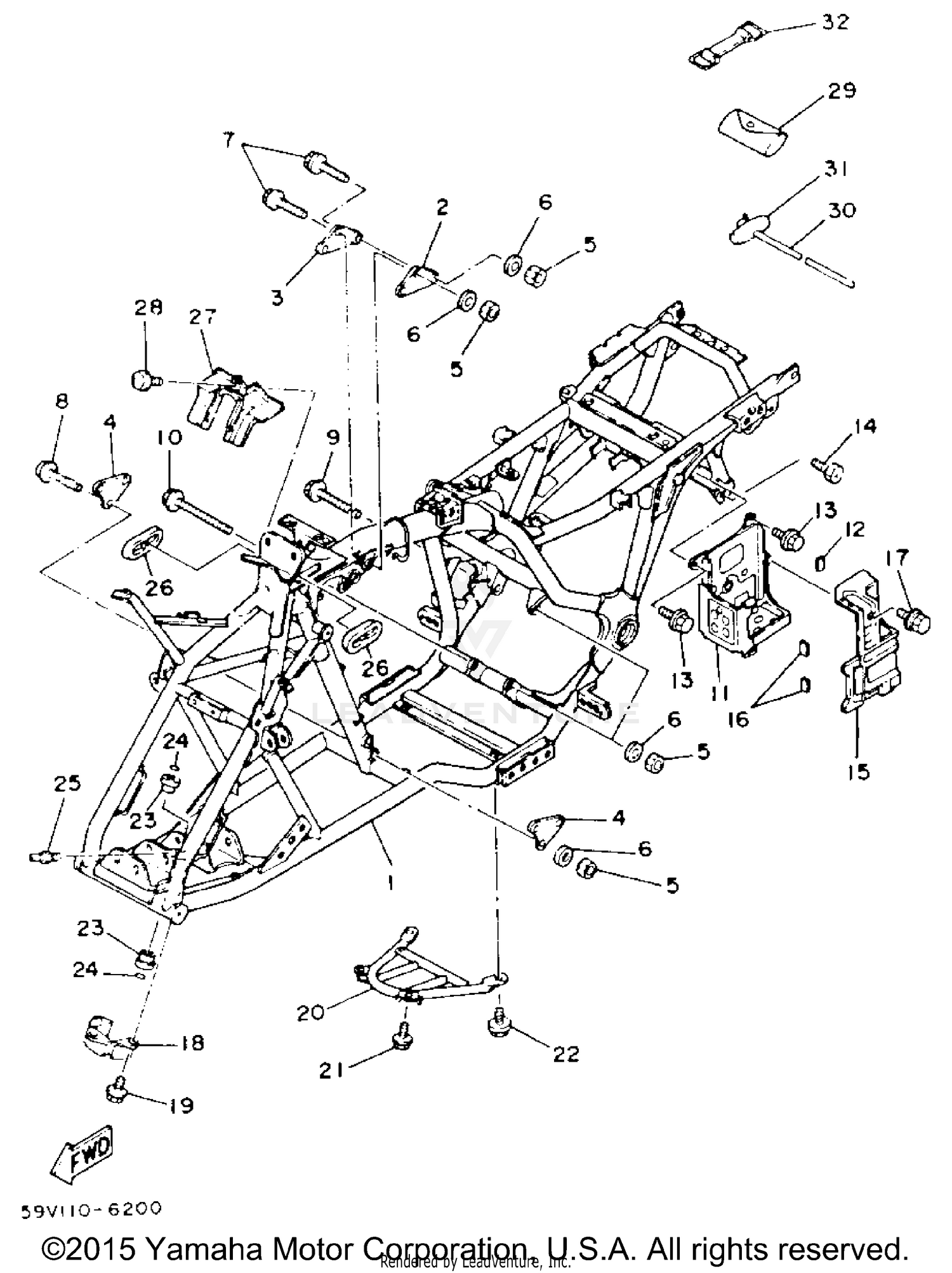

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2HT-21110-00-33
|
$1,418.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
29U-21315-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 2
59V-21315-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#4
STAY, ENGINE 3
59V-21316-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#5
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-094G1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-08060-00
Superseded by 95817-08060-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95811-08065-00
Superseded by 95814-08065-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95811-08100-00
Superseded by 95817-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95811-08105-00
Superseded by 95817-08105-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOX
59V-21170-00-00
|
$41.00 | ||
|
Unavailable |
|||
|
#12
COVER 2
3FC-2139R-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, HEXAGON
90153-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX
24W-21245-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER 2
3FC-2139R-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, ENGINE 1
59V-2147A-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Unavailable |
|||
|
#20
PROTECTOR, ENGINE
59V-21471-00-00
|
$45.94 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Unavailable |
|||
|
#23
BUSH, SOLID
90381-15040-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE, AIR
52H-2137Y-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#27
COVER
59V-2117F-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#28
SCREW, WITH WASHER
90159-05121-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
TOOL KIT (24W-28100-00)
59V-28100-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#30
ROPE
59V-15781-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#31
HANDLE, STARTER
646-15755-02-00
|
$2.65 | ||
|
Unavailable |
|||
|
#32
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
