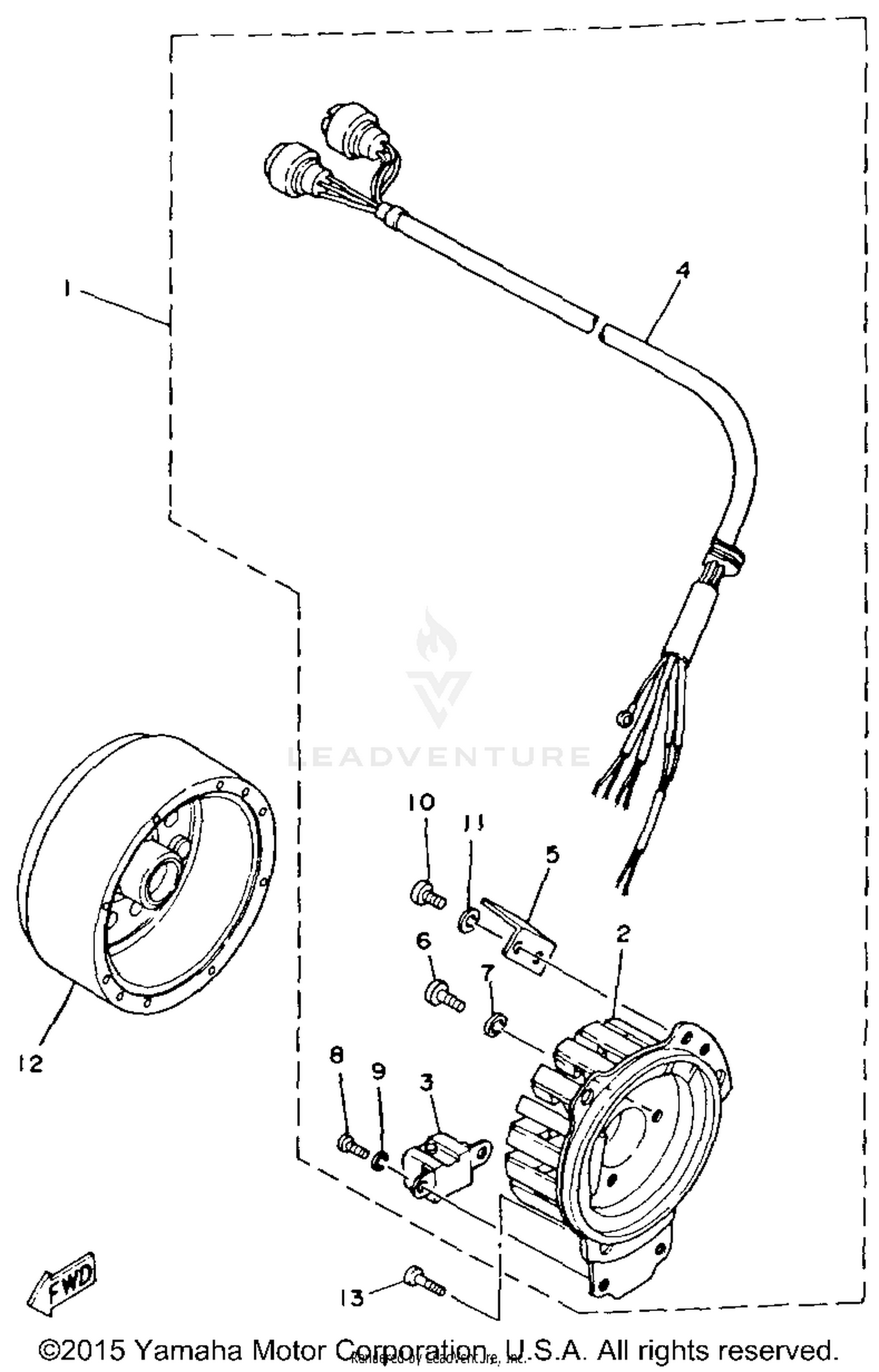

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSEMBLY
59V-85510-20-00
|
$671.99 | ||
|
Unavailable |
|||
|
#2
COIL ASSEMBLY
59V-85521-20-00
|
$169.31 | ||
|
Unavailable |
|||
|
#3
COIL, PULSER
59V-85580-20-00
|
$138.99 | ||
|
Unavailable |
|||
|
#4
LEAD WIRE ASSEMBLY
59V-85515-20-00
|
$140.99 | ||
|
Unavailable |
|||
|
#5
COVER
21V-85525-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98501-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98501-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROTOR ASSEMBLY
59V-85550-22-00
|
$585.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
