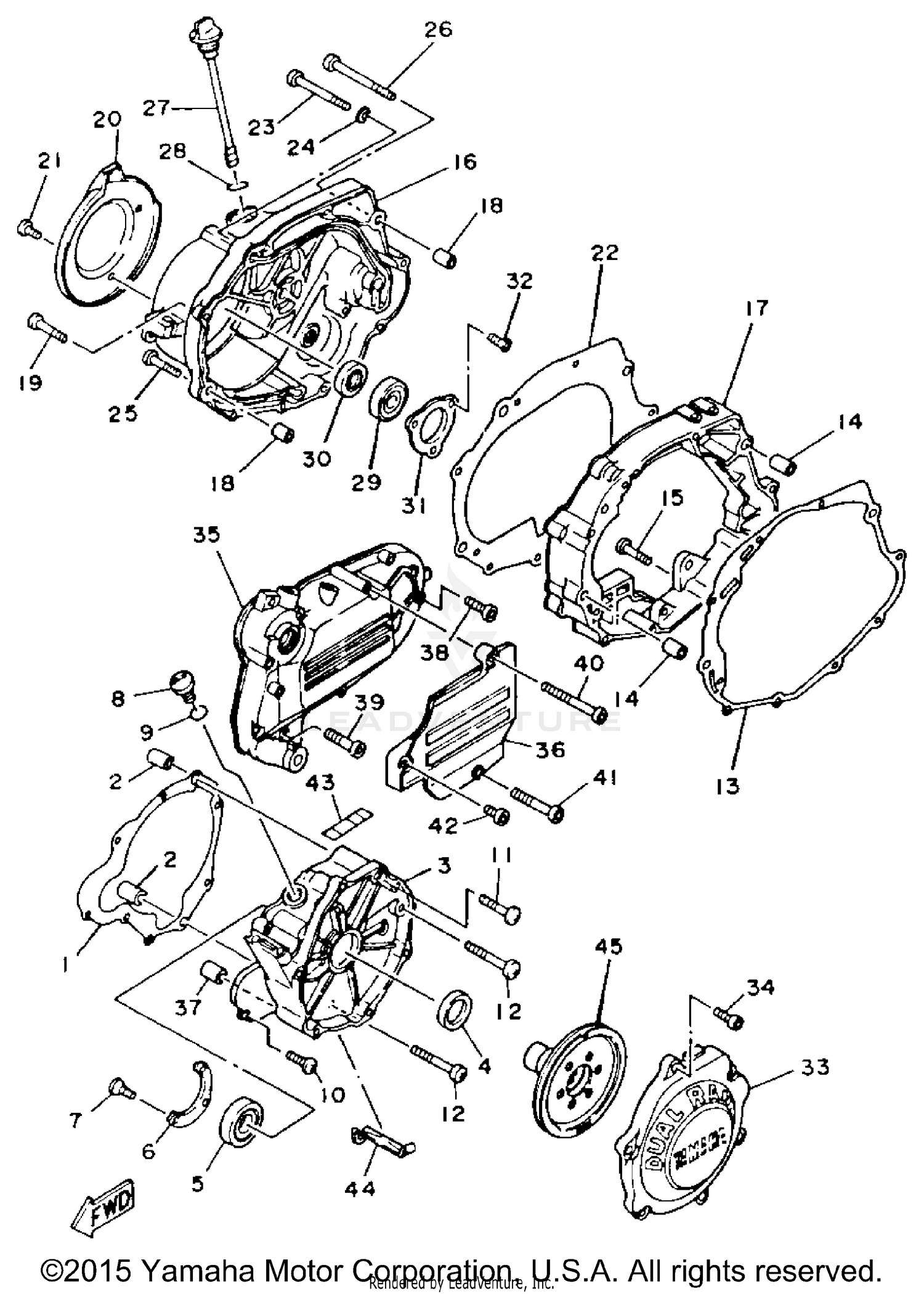

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CRANKCASE COVER
59V-15451-01-00
Superseded by 3GH-15451-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADAPTOR
59V-15787-01-00
|
$298.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
93103-28141-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20547-00
Superseded by 93306-07801-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, THRUST
21V-15719-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, COUNTERSUNK
90151-05031-00
Superseded by 90151-05023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14079-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98506-06060-00
Superseded by 98507-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, CRANKCASE COVER 3
5H0-15462-00-00
Superseded by 4BD-15462-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,CRANKCASE 3
21V-15431-00-00
Superseded by 99999-02617-00
|
$221.99 | ||
|
Unavailable |
|||
|
#17
SPACER, ENGINE
21V-15317-00-00
Superseded by 21V-15317-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#18
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Unavailable |
|||
|
#20
PROTECTOR, COVER
21V-15499-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#21
SCREW, BIND
98906-06014-00
Superseded by 98907-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, COVER PINION 2
21V-15462-01-00
Superseded by 4BD-15463-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98506-06070-00
Superseded by 98507-06070-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98506-06080-00
Superseded by 98507-06080-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, OIL LEVEL
1UY-15362-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93306-20313-00
Superseded by 93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93101-17113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, BEARING COVER
21V-15381-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#32
SCREW, COUNTERSUNK
90151-06025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CRANKCASE COVER ASSEMBLY L
59V-15410-01-00
|
$109.99 | ||
|
Unavailable |
|||
|
#34
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, CRANKCASE R
59V-15421-00-00
|
$163.99 | ||
|
Unavailable |
|||
|
#36
PROTECTOR
59V-15491-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#37
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#38
BOLT
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
91316-06080-00
Superseded by 91317-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
EMBLEM
59V-15443-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#44
PLATE, LOCK
59V-15144-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#45
PULLEY, STARTER
59V-15723-00-00
|
$174.99 | ||
|
Unavailable |
|||
