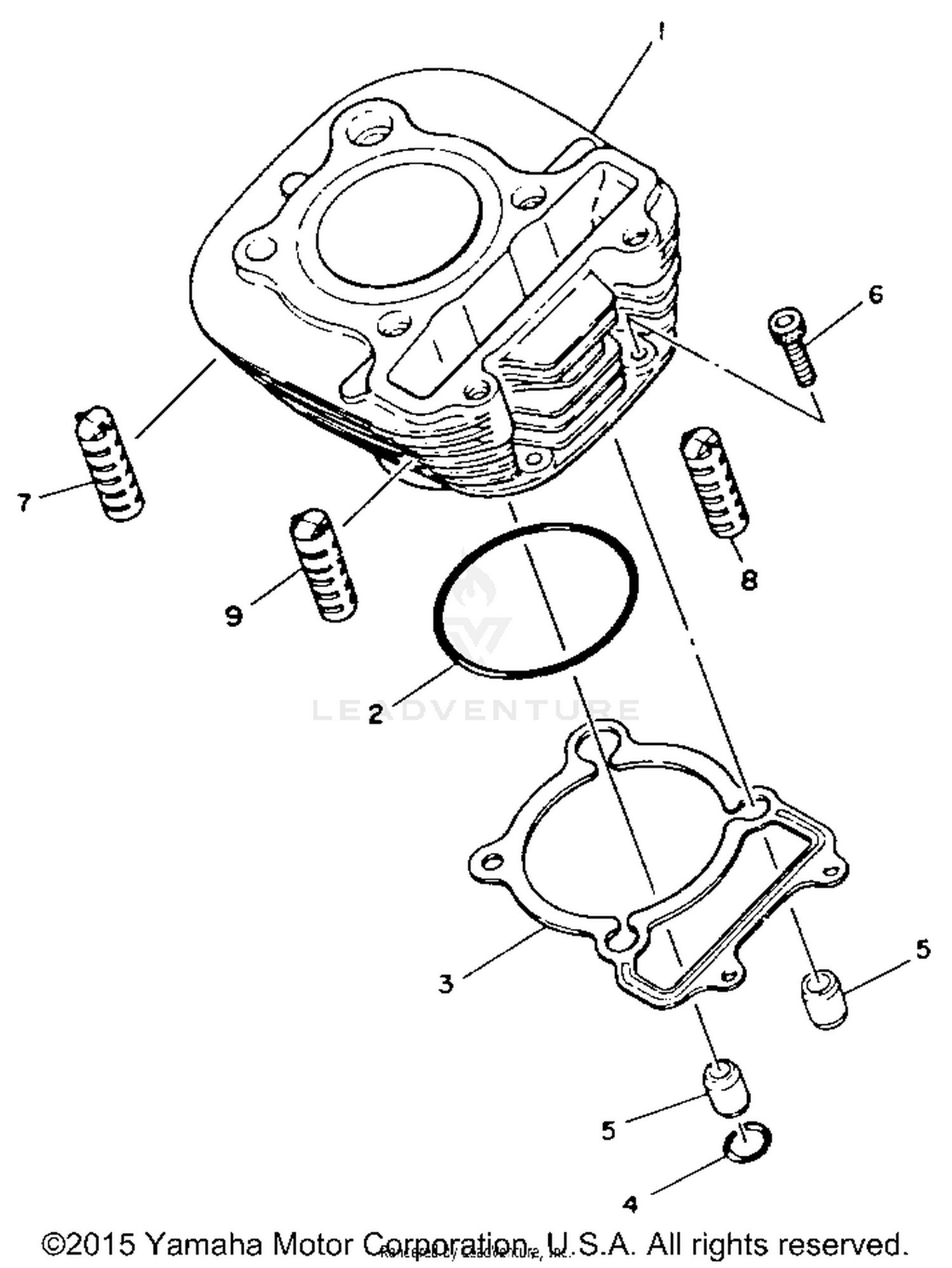

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (29U-11310-01)
29U-11310-03-00
|
$466.99 | ||
|
Unavailable |
|||
|
#2
O-RING (93210-72529-00)
93210-71470-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER (59V-11351-00
4VD-11351-00-00
|
|||
|
Unavailable |
|||
|
#4
O-RING
93210-13361-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ABSORBER 2
15A-11162-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ABSORBER 1
5H0-11161-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ABSORBER 2
15A-11162-00-00
|
$20.99 | ||
|
Unavailable |
|||
