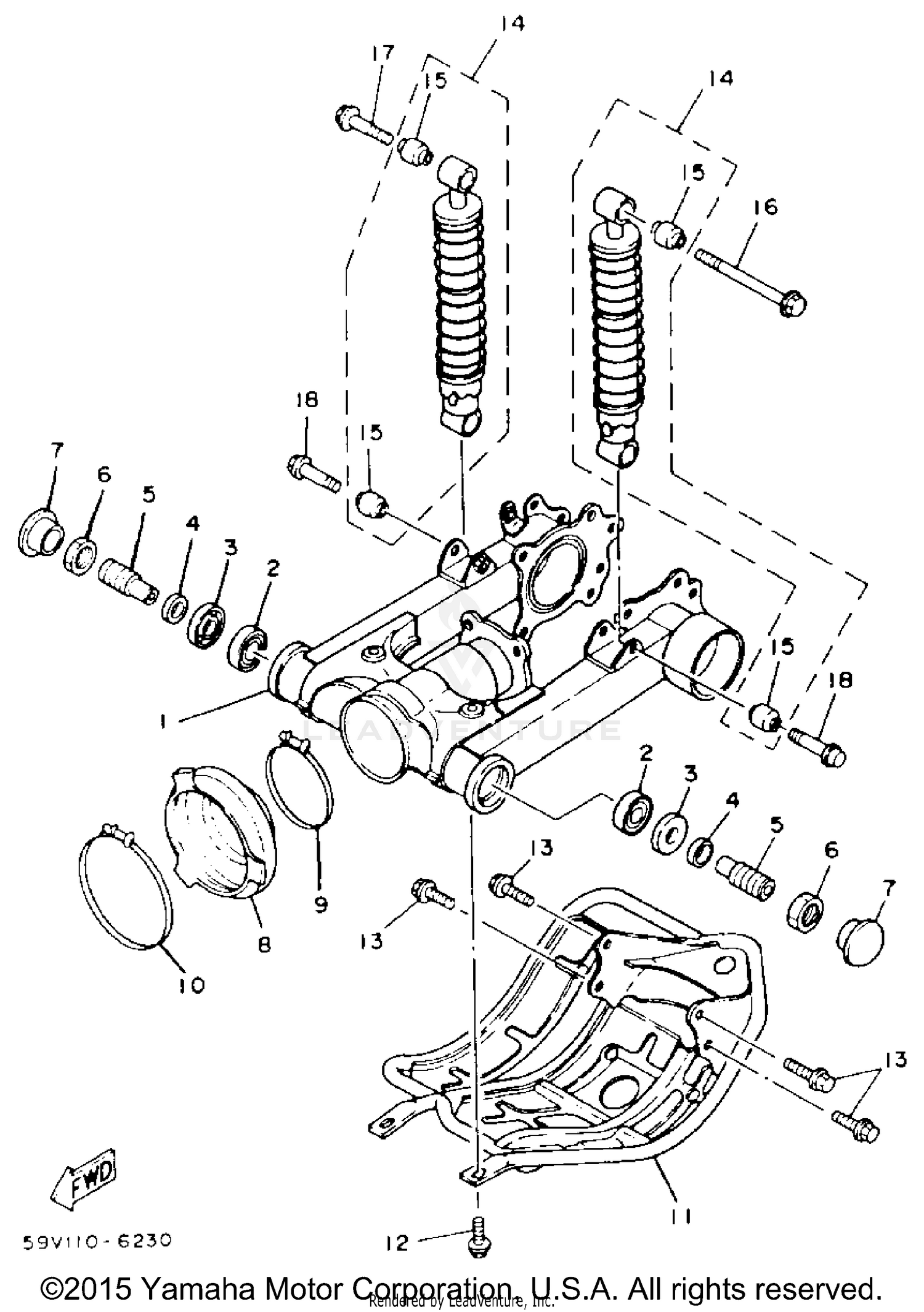

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
2HT-22110-00-33
|
$460.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93332-00010-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-25017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-17543-00
Superseded by 90387-17011-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
29U-22141-00-00
Superseded by 4WV-22141-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
1J7-22143-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-34069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, RUBBER (1YW-22189-00-00)
59V-22189-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-85277-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90460-99278-00
Superseded by 90450-99013-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
59V-2219X-00-00
|
$163.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHK/ABS ASSEMBLY, REAR ASSEMBLY
59V-22210-01-26
|
$183.99 | ||
|
Unavailable |
|||
|
#15
BUSH, REAR SHOCK ABSORBER
59V-22216-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10392-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10388-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-10388-00
|
$9.49 | ||
|
Unavailable |
|||
