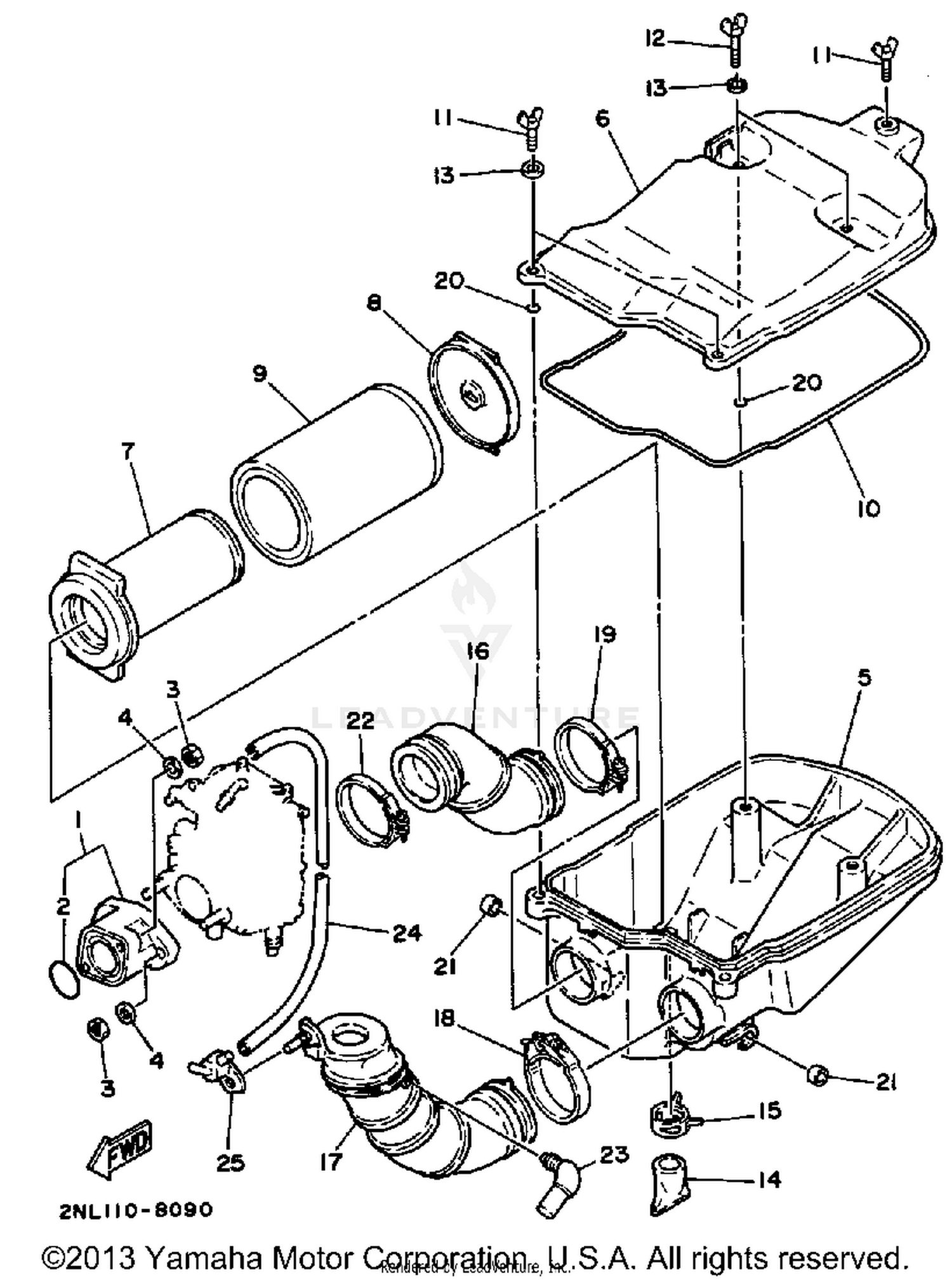

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
2NL-13586-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-36549-00
Superseded by 93210-36769-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-084L7-00
Superseded by 90201-08085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, AIR CLEANER 1
2NL-14411-00-00
|
$114.99 | ||
|
Unavailable |
|||
|
#6
CAP, CLEANER CASE 1
2NL-14412-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#7
GUIDE
1YW-14458-00-00
Superseded by 1YW-14458-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE,ELEMENT FITTING
1UY-14468-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ELEMENT,AIR CLNR
1YW-14451-00-00
Superseded by 1YW-14451-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL
55K-14476-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WING
90122-06019-00
|
$5.99 | ||
|
Unavailable |
|||
|
#12
BOLT, WING
90122-06027-00
|
$0.80 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-06050-00
Superseded by 90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
59V-14457-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-22080-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
INACTIVE PART NUMBER
2NL-14453-00-00
|
$24.95 | ||
|
Unavailable |
|||
|
#17
DUCT
2NL-14437-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#18
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90460-56105-00
Superseded by 90450-56001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-05098-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE
90445-12718-00
|
$1.78 | ||
|
Unavailable |
|||
|
#22
HOSE CLAMP ASSY
90460-56105-00
Superseded by 90450-56001-00
|
$16.99 | ||
|
Unavailable |
|||
|
#23
PIPE
2NL-14419-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE
90445-09222-00
|
$3.95 | ||
|
Unavailable |
|||
|
#25
SEAL
36F-14457-00-00
|
$25.99 | ||
|
Unavailable |
|||
