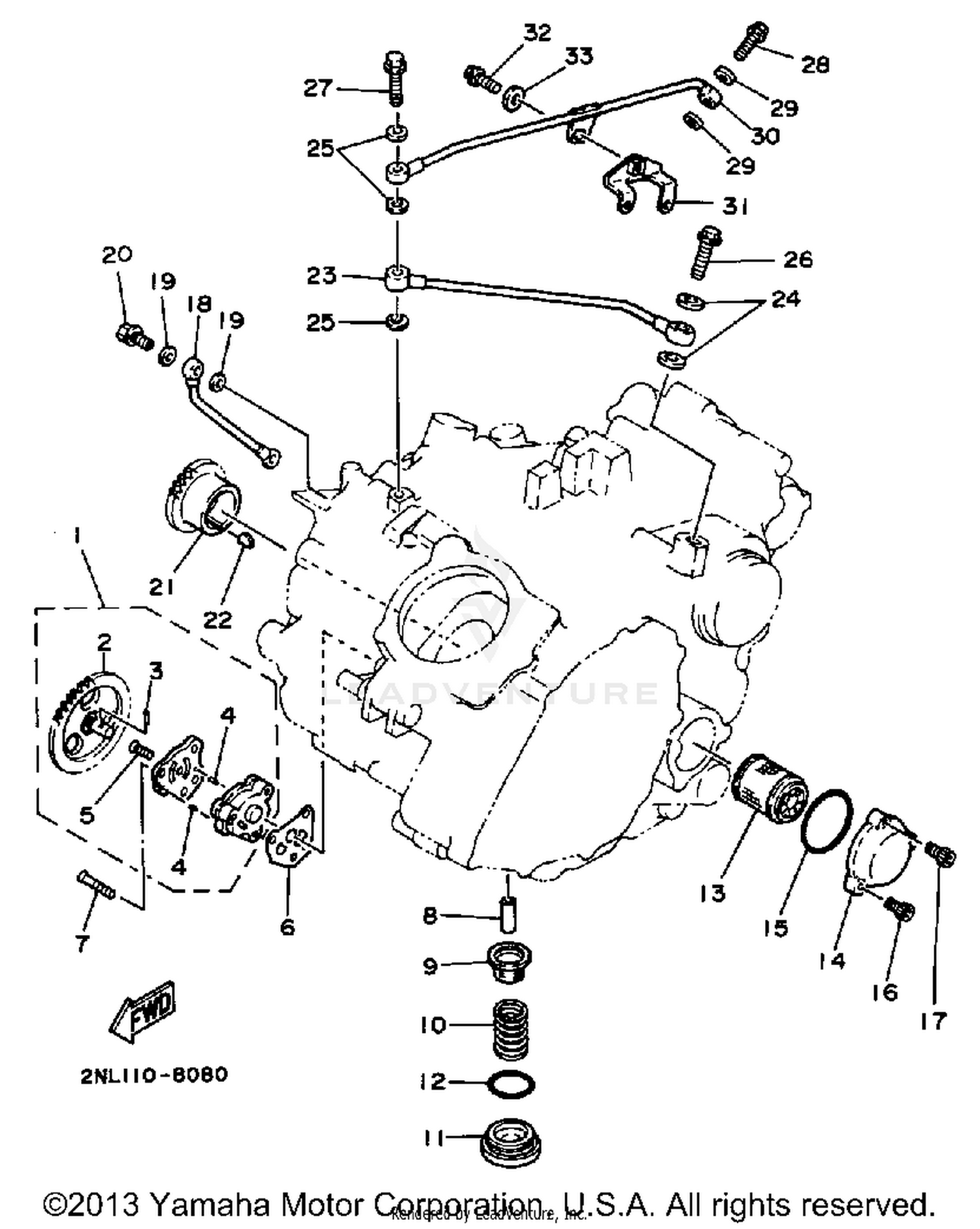

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
1UY-13300-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2
1UY-13326-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-12030-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-07073-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, COUNTERSUNK
90151-06010-00
Superseded by 90151-06005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, PUMP COVER
3GD-13329-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98701-06030-00
Superseded by 98707-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, OIL 1
2XK-13416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAINER, OIL
51Y-13411-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-18576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, DRAIN
30X-15351-00-00
Superseded by 4HC-15351-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-35512-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ELEMENT ASSY, OIL CLEANER
1UY-13440-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, OIL ELEMENT (1UY-13447-0
1UY-13447-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#
O-RING
93210-54175-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91311-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90110-06136-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, DELIVERY 1
1UY-13161-00-00
Superseded by 1UY-13161-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Unavailable |
|||
|
#20
BOLT, UNION
90401-08117-00
Superseded by 90401-08004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, PUMP DRIVE
1UY-13324-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, DELIVERY 1
2NL-13161-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#24
GASKET
90430-14042-00
Superseded by 90430-14043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, UNION
90401-14118-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, UNION
90401-08123-00
|
$4.70 | ||
|
Unavailable |
|||
|
#28
BOLT, UNION
90401-08125-00
|
$1.98 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Unavailable |
|||
|
#30
PIPE, DELIVERY 2
2NL-13171-01-00
Superseded by 2NL-13171-02-00
|
$50.99 | ||
|
Unavailable |
|||
|
#31
BRACKET
2NL-15199-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (SMALL HEAD)
95023-06010-00
Superseded by 95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
