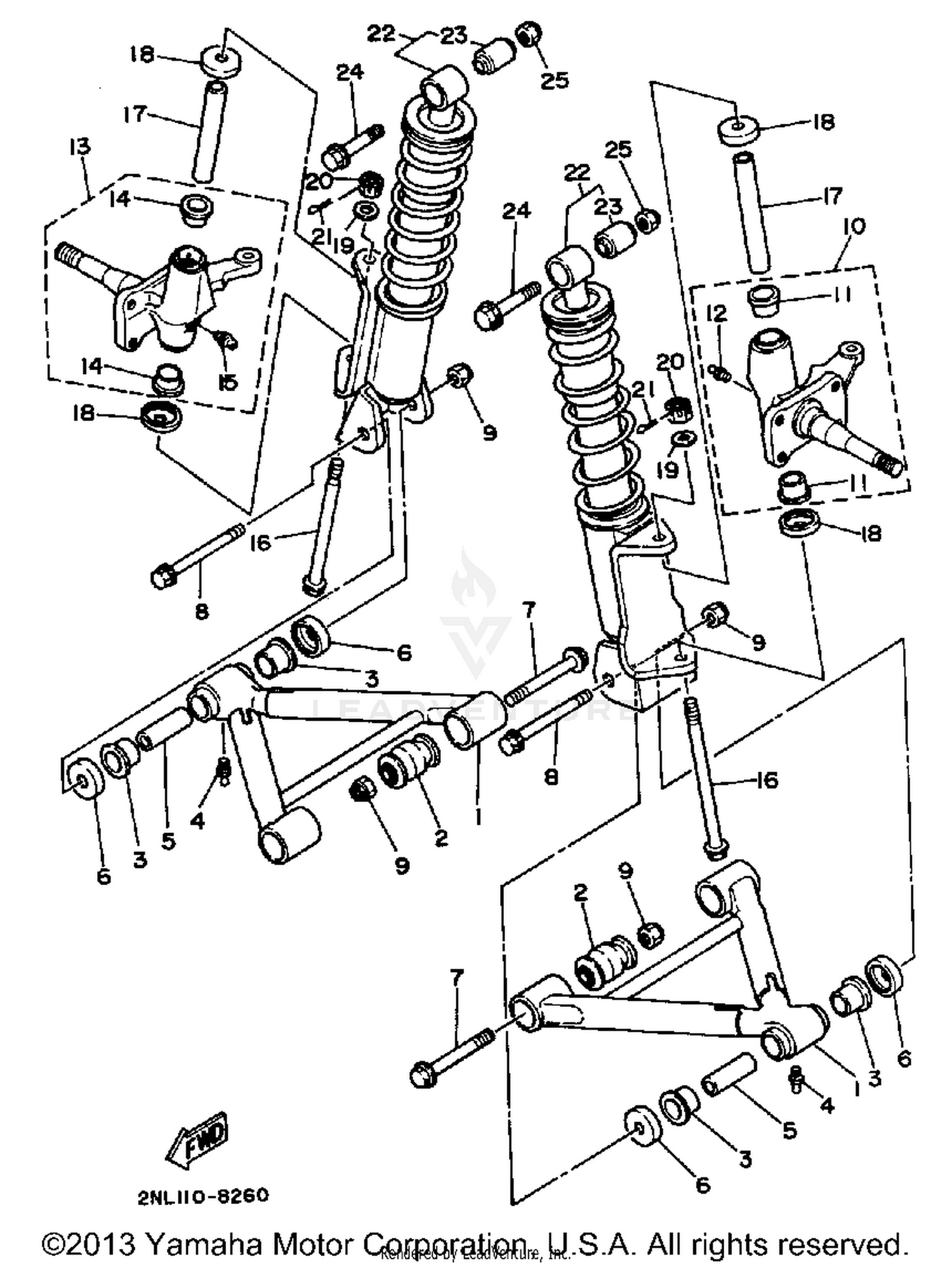

Front Suspension Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT LWR ARM CMPL LCOMP
2NL-23570-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#2
BUSH
2NL-23526-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#3
BUSH, SOLID
90381-18066-00
|
$6.49 | ||
|
Unavailable |
|||
|
#4
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-124R8-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-12468-00
Superseded by 90105-12660-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED
90105-12474-00
|
$7.99 | ||
|
Unavailable |
|||
|
#9
NUT, SELF-LOCKING
95601-12200-00
Superseded by 95607-12200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
KNUCKLE, STEERING 1
2NL-23510-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#11
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#13
KNUCKLE, STEERING 2
2NL-23520-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#14
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#16
BOLT, WASHER BASED
90105-10389-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
2NL-23448-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 1
3JN-23517-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHOCK ABSORBER ASSEMBLYASSY
2NL-23350-00-33
|
$303.99 | ||
|
Unavailable |
|||
|
#23
BUSH, REAR SHOCK ABSORBER
59V-22216-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-10388-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
