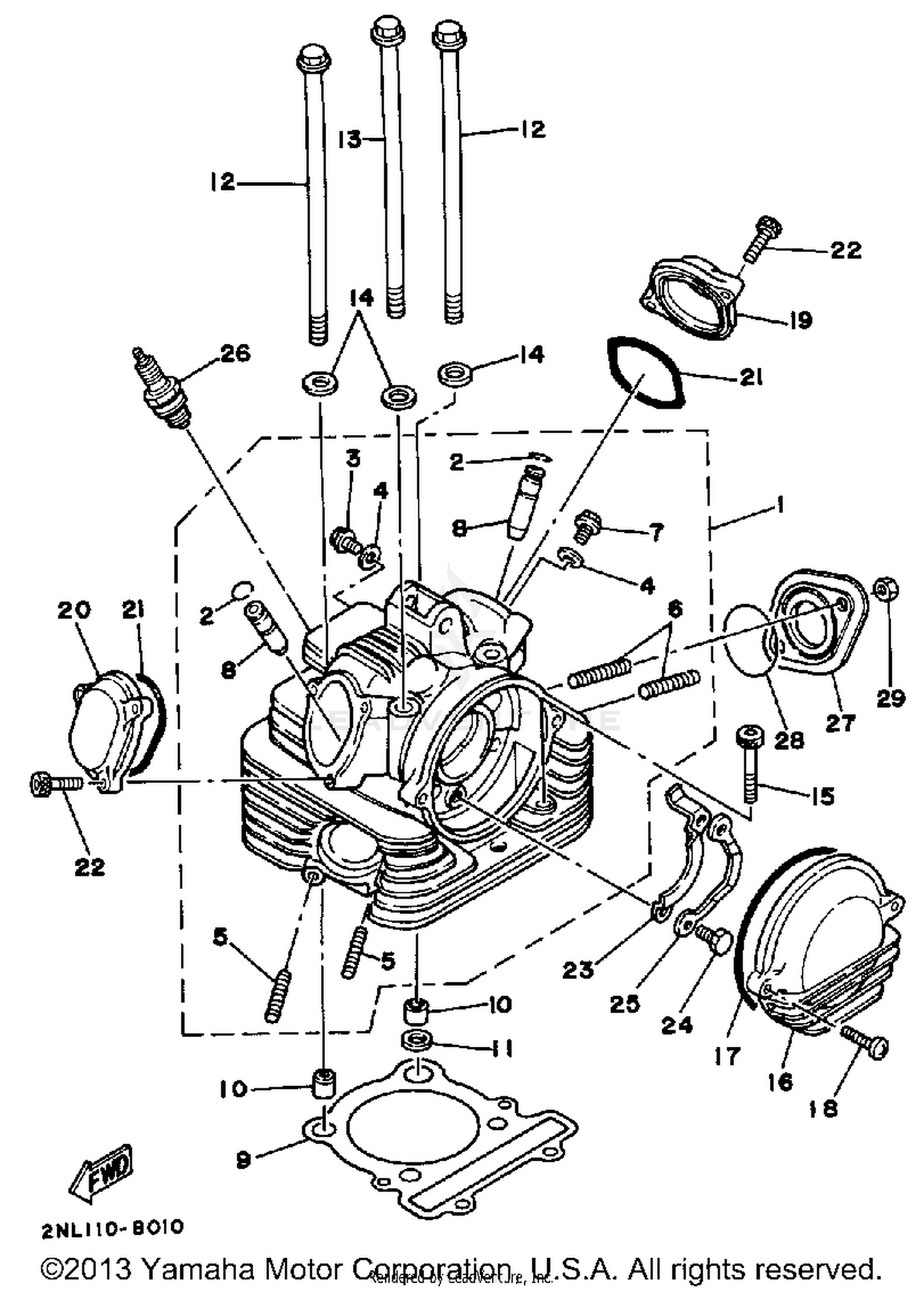

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
2NL-11110-00-00
|
$562.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, UNION
90401-06001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-06192-00
Superseded by 90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-06503-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD (2NL)
90116-08505-00
|
$0.94 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95821-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, VALVE 1
3Y1-11133-10-00
Superseded by 3Y1-11133-11-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, CYLINDER HEAD 1
1UY-11181-00-00
Superseded by 1UY-11181-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-14131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10421-00
Superseded by 90105-10137-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10422-00
Superseded by 90105-10136-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10128-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CYLINDER. HEAD 1
2NL-11185-00-00
|
$8.18 | ||
|
Unavailable |
|||
|
#17
O-RING
93211-06635-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD
3Y1-11186-00-00
Superseded by 3Y1-11186-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CYLINDER HEAD SIDE 3
2NL-11187-00-00
Superseded by 2NL-11187-11-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-57634-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE
3Y1-1111F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK
90215-06162-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
D8EA NGK SPLUG 10P
NGK-D8EA0-00-00
Superseded by D8E-A0000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#27
MANIFOLD, INTAKE
2NL-13555-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#28
O-RING
93210-44545-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
