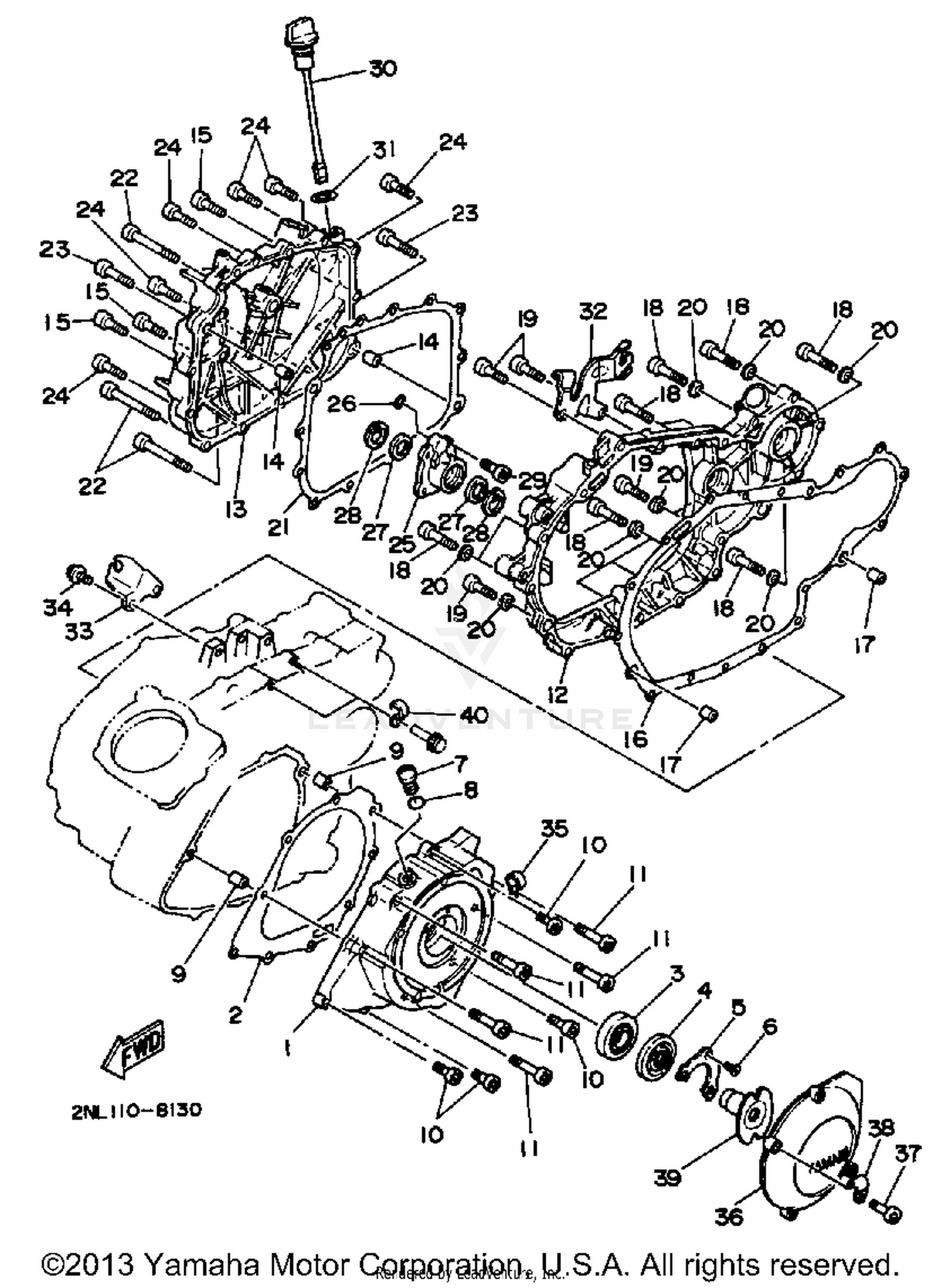

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADAPTOR
1UY-15787-02-00
|
$385.99 | ||
|
Unavailable |
|||
|
#2
GASKET,CRCS
2NL-15451-00-00
Superseded by 2NL-15451-10-00
|
$17.49 | ||
|
Unavailable |
|||
|
#3
BEARING (1YW)
93306-07802-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
93103-28164-00
Superseded by 93102-28476-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, THRUST
1UY-15719-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, COUNTERSUNK
90151-05031-00
Superseded by 90151-05023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-14079-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER, ENG MOUNT
2NL-15317-00-00
|
$192.99 | ||
|
Unavailable |
|||
|
#13
COVER, CRANKCASE 3
2NL-15431-00-00
|
$164.99 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#15
BOLT
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, GAS AIR 2
2NL-15461-00-00
Superseded by 2NL-15461-10-00
|
$50.99 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#18
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET,CRCS CVR3
2NL-15462-00-00
Superseded by 2NL-15462-10-00
|
$42.99 | ||
|
Unavailable |
|||
|
#22
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Unavailable |
|||
|
#24
BOLT
90110-06138-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
UNAVAILABLE IN PRICE BOOK
2N-L1516-40-00
|
|||
|
Unavailable |
|||
|
#26
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93102-20108-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (650)
99009-30500-00
Superseded by 93420-30042-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG, OIL LEVEL
1UY-15362-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-19522-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOLDER, CLCH CABLE
2NL-15441-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#33
UNAVAILABLE IN PRICE BOOK
2N-L1537-80-00
|
|||
|
Unavailable |
|||
|
#34
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90465-08277-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, CRANKCASE 1
2NL-15411-00-00
Superseded by 2NL-15411-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#37
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#38
CLAMP
90465-08028-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOSS, STARTER PULLEY
3GD-15777-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90465-06332-00
Superseded by 90465-06376-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
