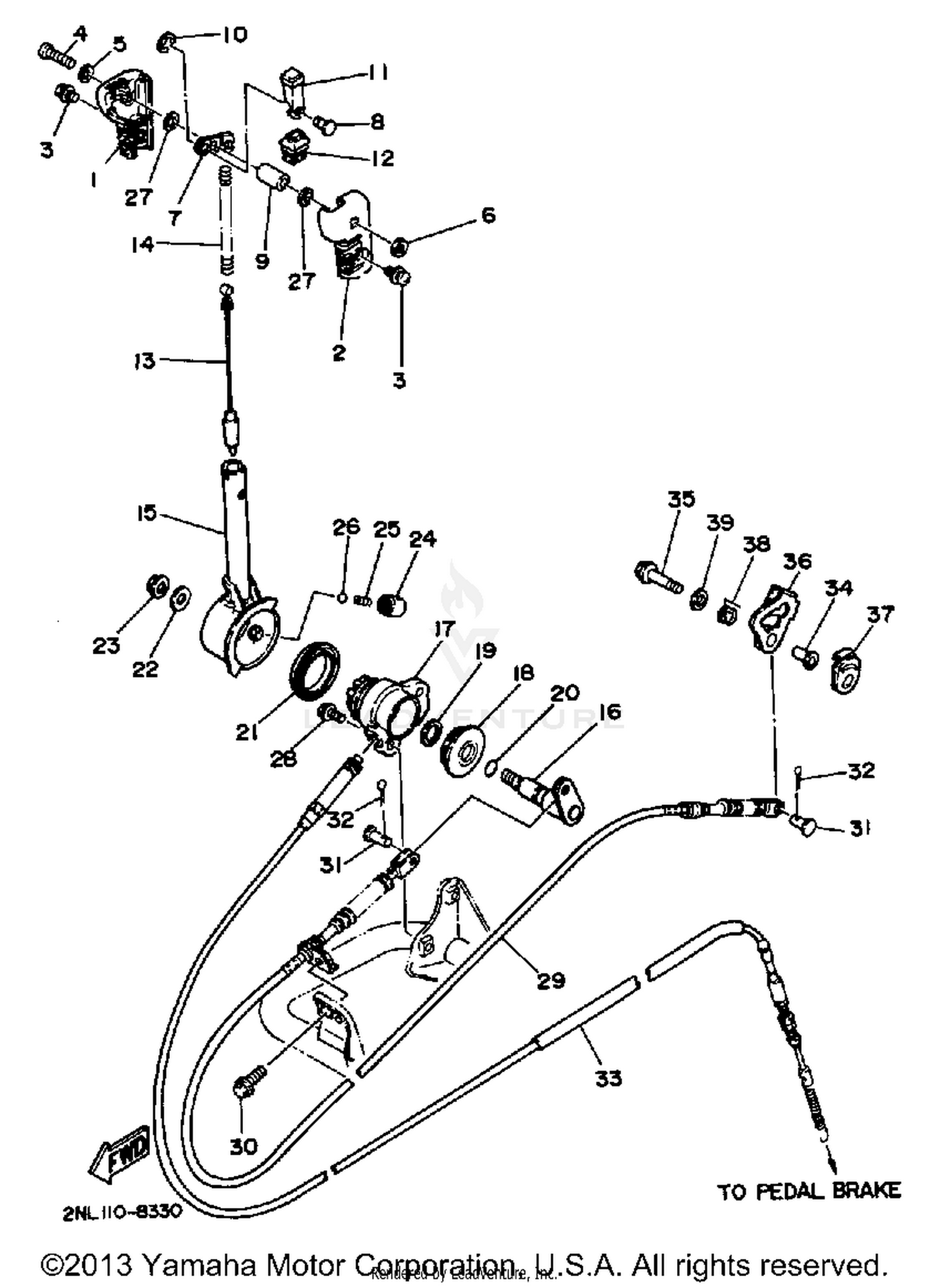

Reverse Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, LEVER
2NL-26153-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#2
CAP, GRIP
2NL-2628J-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#3
SCREW, WITH WASHER
90159-05152-00
Superseded by 90159-05055-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98506-05025-00
Superseded by 98507-05025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95316-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT
2NL-2629M-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#8
PIN, SPEC''L SHAPE
90249-04196-00
|
$2.70 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-05383-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99002-03600-00
Superseded by 99080-03600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, LOCK (BLACK)
2NL-26157-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
SEAL
2NL-2639G-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#13
STOPPER, HANDLE BAR
2NL-26114-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#14
SPRING, COMPRESSION
90501-126E5-00
|
$2.90 | ||
|
Unavailable |
|||
|
#15
LEVER, REVERSE
2NL-26152-00-00
|
$59.85 | ||
|
Unavailable |
|||
|
#16
SHAFT, REVERSE LVR
2NL-26155-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#17
BODY, REVERSE LEVER
2NL-26151-00-00
|
$185.99 | ||
|
Unavailable |
|||
|
#18
CAP, RUBBER
2NL-26329-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-16242-00
Superseded by 90201-162H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-12790-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93112-48009-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-08428-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT 1
2NL-26294-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#25
SPRING, COMPRESSION
90501-157E9-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL
93521-64032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
WIRE, CONTROL 1
2NL-2637E-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN
91701-06016-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WIRE, CONTROL 2
2NL-2637F-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#34
COLLAR
90387-061F8-00
|
$4.70 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
95811-06035-00
Superseded by 95817-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
LEVER
2NL-18191-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#37
LEVER
2NL-18198-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#38
SPRING, TORSION
90508-35764-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-06M02-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
