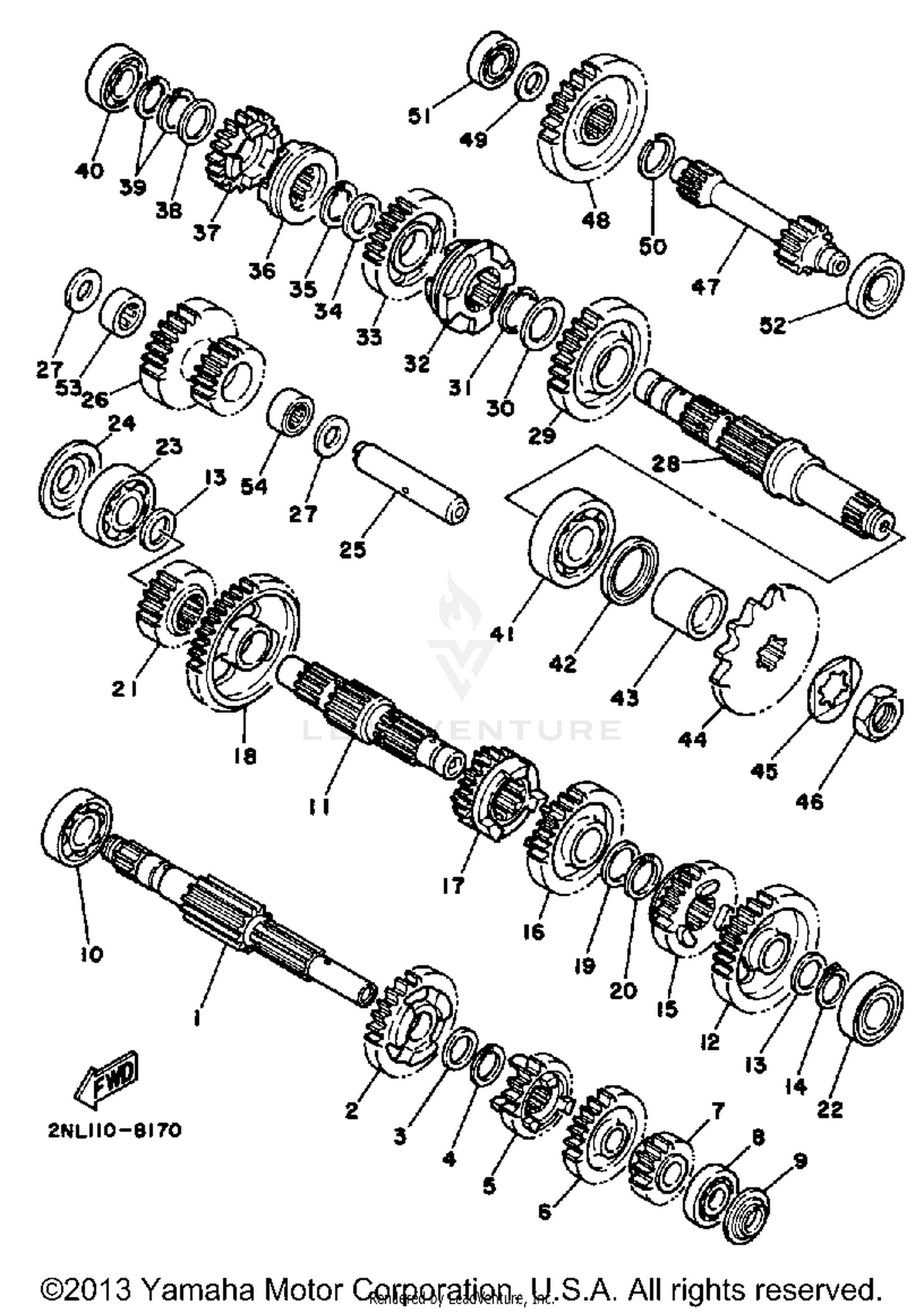

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (2NL-17411-00)
2NL-17411-01-00
|
$122.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION
2NL-17151-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#3
WASHER
90209-18208-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
2NL-17131-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 4TH PINION
2NL-17141-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION
2NL-17121-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#8
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93104-17094-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20427-00
Superseded by 93306-20447-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, DRIVE
2NL-17421-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#12
GEAR, 2ND WHEEL
2NL-17221-00-00
|
$52.66 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-203E7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 4TH WHEEL
2NL-17241-00-00
|
$39.12 | ||
|
Unavailable |
|||
|
#16
GEAR, 3RD WHEEL
2NL-17231-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 5TH WHEEL
2NL-17251-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#18
GEAR, 1ST WHEEL
2NL-17211-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#19
WASHER
90209-22191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, HIGH PINION
2NL-17123-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#22
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93104-20068-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, IDLE
1UY-17432-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, HIGH WHEEL (27T-17T)
2NL-17223-00-00
|
$92.65 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-150H2-00
Superseded by 90201-150U6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT
2NL-17523-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#29
GEAR, REV. WHEEL 2WHEEL 2 (31T)
2NL-17253-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#30
WASHER, SPEC''L SHAP
90209-27268-00
|
$3.90 | ||
|
Unavailable |
|||
|
#31
CIRCLIP
93440-30077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLUTCH, DOG
2NL-17285-00-00
|
$38.02 | ||
|
Unavailable |
|||
|
#33
GEAR, MIDDLE DRIVE
2NL-17582-00-00
|
$59.85 | ||
|
Unavailable |
|||
|
#34
WASHER
90209-22191-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
UNAVAILABLE IN PRICE BOOK
2N-L1728-60-00
|
|||
|
Unavailable |
|||
|
#37
GEAR, MIDDLE DRIVENDRIVEN (19T)
2NL-17583-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
90201-203E7-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING
93306-00431-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING
93306-30560-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
OIL SEAL
93102-35393-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-253T3-00
Superseded by 90387-2511R-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPROCKET, DRIVE 15T (1A11746150
93834-15087-00
|
$15.47 | ||
|
Unavailable |
|||
|
#45
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
AXLE, COUNTER
2NL-17431-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#48
GEAR, REV. WHEEL 1WHEEL 1 (37T)
2NL-17243-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#49
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#51
BEARING
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#52
BEARING
93306-00315-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BEARING
93311-51554-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BEARING CYLINDER. (2NL)
93311-41566-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
