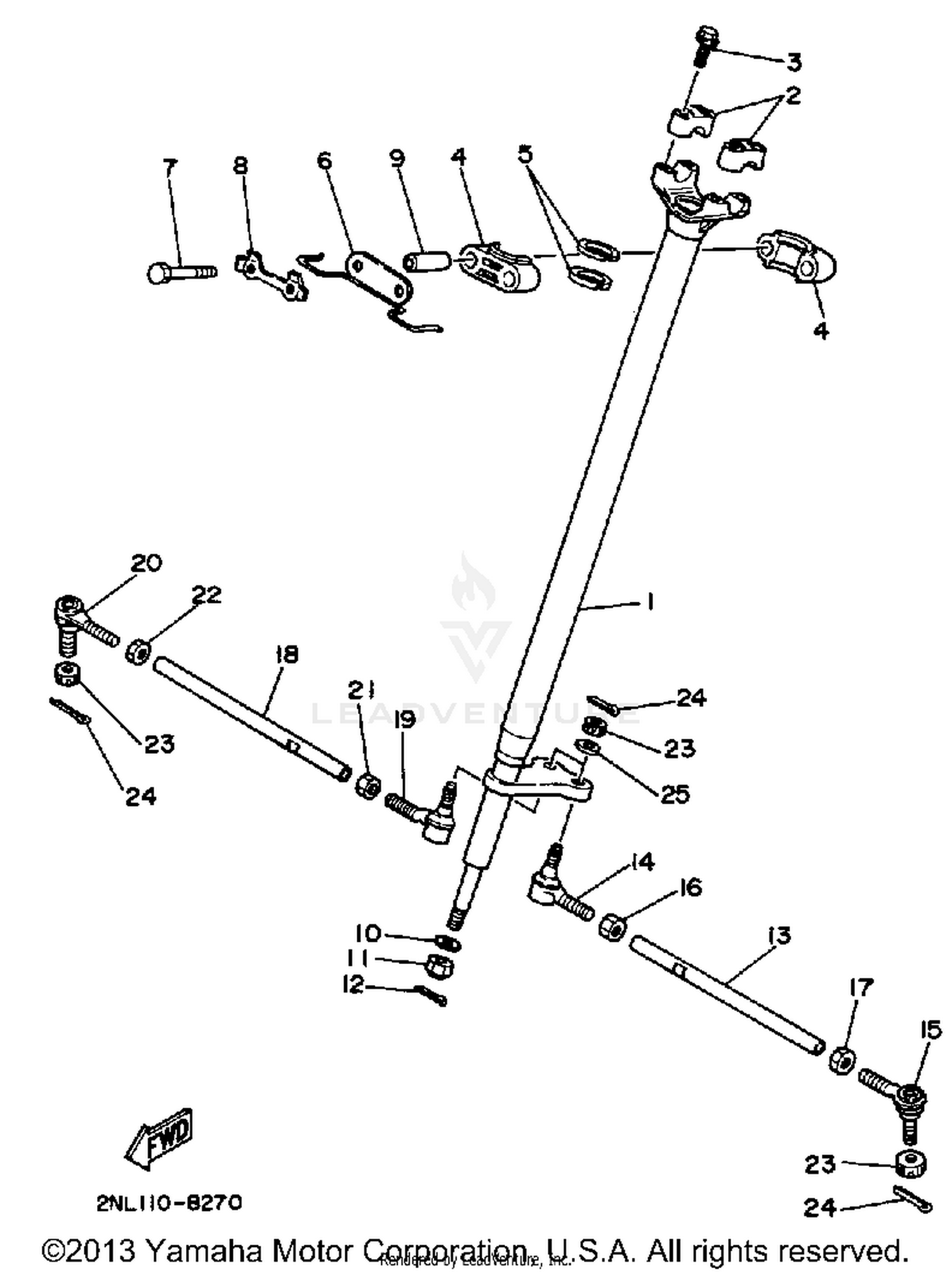

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING 2
2NL-23813-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#2
HOLDER, HANDLE UPR (1E6-23441-0
1E6-23441-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, STEERING
1UY-23812-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93112-31011-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT STEERING LOWRSTEERING LOWE
2NL-23868-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#7
BOLT (663)
97013-08060-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, LOCK 1
1UY-23894-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR (903-87090-R0-00)
90387-106T4-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-10115-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, TIE
2NL-23831-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#14
JOINT, UNIVERSAL 1
59V-23841-01-00
|
$49.99 | ||
|
Unavailable |
|||
|
#15
JOINT, UNIVERSAL 2
59V-23845-01-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90170-10186-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, TIE
2NL-23831-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#19
JOINT, UNIVERSAL 1
59V-23841-01-00
|
$49.99 | ||
|
Unavailable |
|||
|
#20
JOINT, UNIVERSAL 2
59V-23845-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#21
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Unavailable |
|||
|
#22
NUT
90170-10186-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
