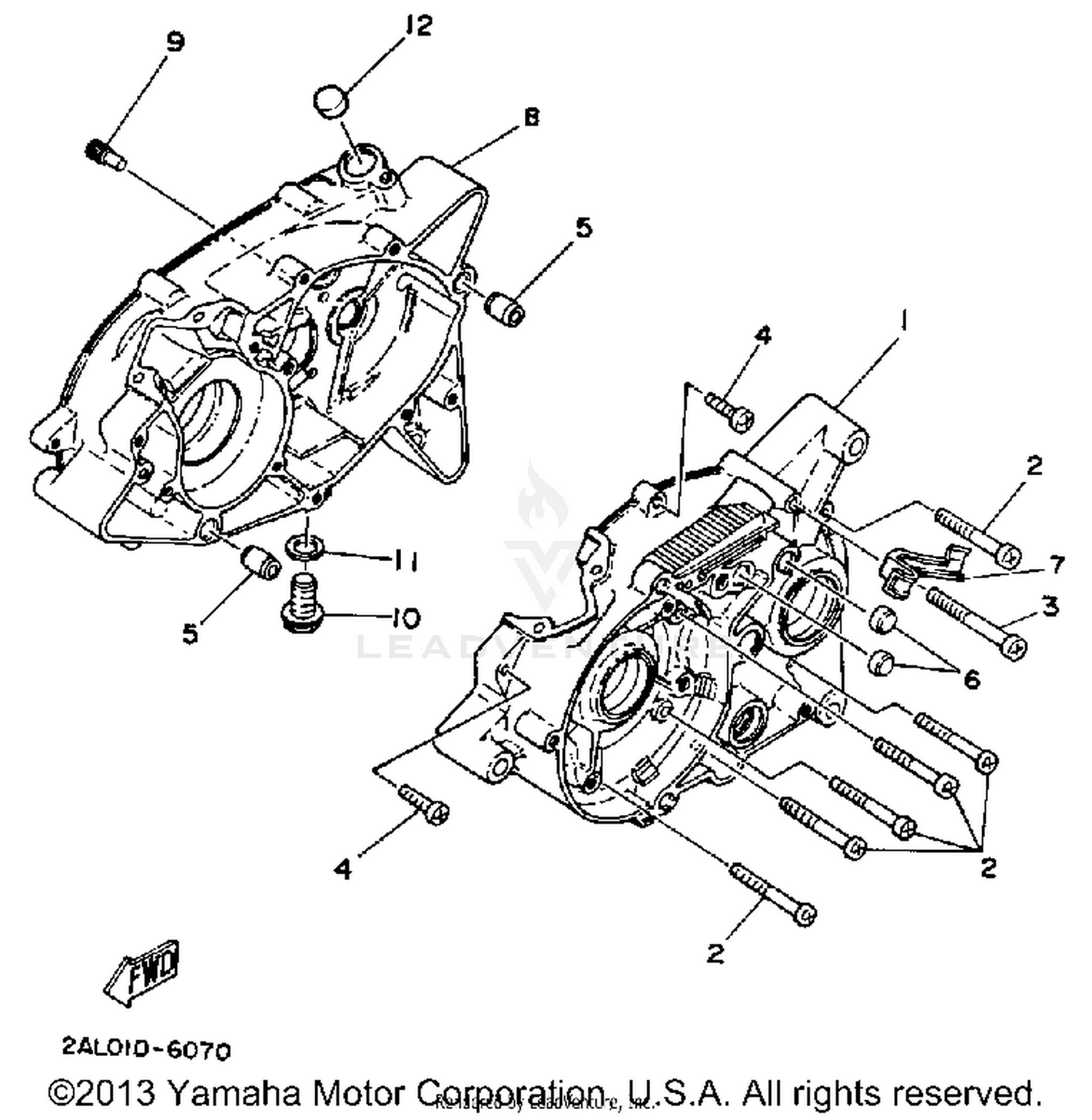

1991 Yamaha YSR50B CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
3T2-15111-01-00
|
$487.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-06550-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW,PANHEAD
98580-06055-00
Superseded by 98580-06555-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT
90334-12009-00
|
$5.99 | ||
|
Unavailable |
|||
|
#7
CLAMP 2
3T2-15484-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
CRANKCASE 2
3T2-15121-02-00
|
$602.99 | ||
|
Unavailable |
|||
|
#9
STOPPER
492-15387-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-12005-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-12207-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
90338-16015-00
Superseded by 90338-16029-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
