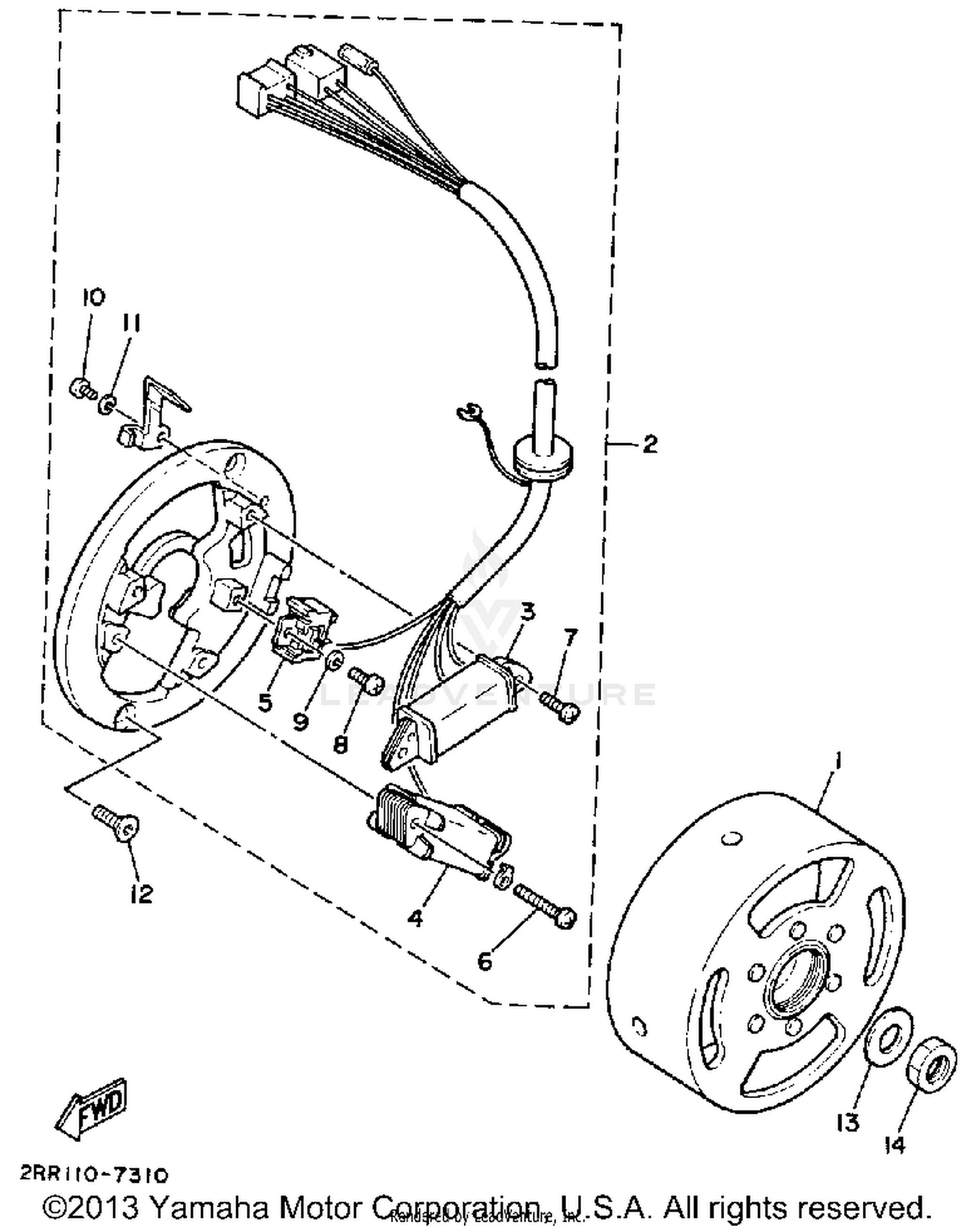

1991 Yamaha YSR50B GENERATOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
2AL-85550-M2-00
Superseded by 2AL-85550-M3-00
|
$156.99 | ||
|
Unavailable |
|||
|
#2
BASE ASSEMBLY
3AX-85560-00-00
|
$329.99 | ||
|
Unavailable |
|||
|
#3
COIL, CHARGE
4Y4-85520-M0-00
Superseded by 4Y4-85520-M1-00
|
$40.99 | ||
|
Unavailable |
|||
|
#4
COIL, LIGHTING 1
3AX-81313-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#5
COIL, PULSER
2AL-85580-M0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98511-04025-00
Superseded by 98517-04025-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-04010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#12
SCREW, COUNTERSUNK
90149-05237-00
Superseded by 90151-05048-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-123L6-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
