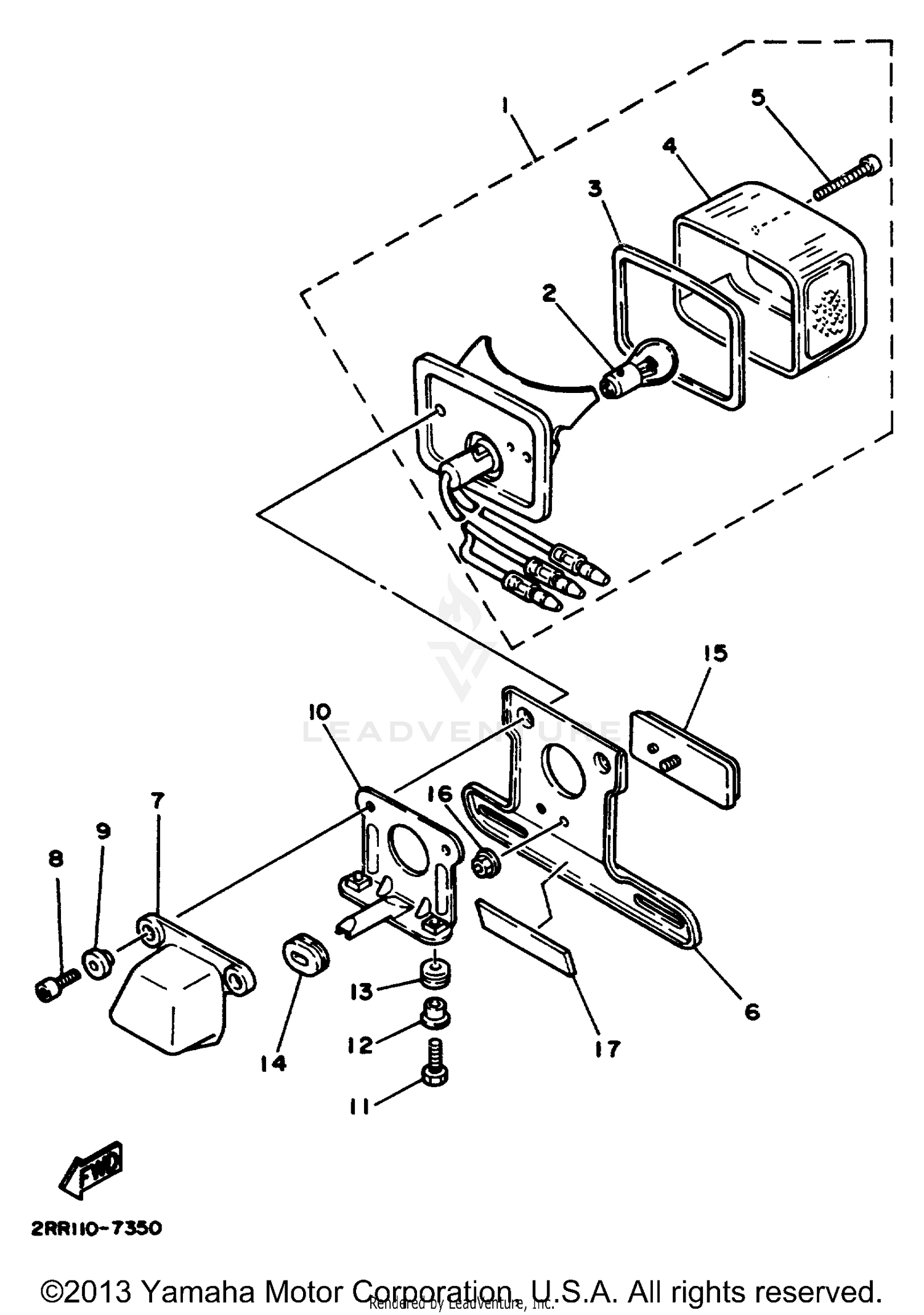

1991 Yamaha YSR50B TAILLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
1M1-84510-60-00
|
$179.99 | ||
|
Unavailable |
|||
|
#2
BULB 6VP21/5W(17904)
1M1-84514-60-00
Superseded by 1M1-84514-60-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, LENS
1M1-84523-60-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
1M1-84521-60-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, LICENSE
1UV-84751-00-98
Superseded by 1UV-84751-00-R4
|
$61.99 | ||
|
Unavailable |
|||
|
#7
COVER
3L8-84544-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06104-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06681-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, TAILLIGHT
2RR-84519-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06638-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-13428-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-01432-00
Superseded by 90480-01445-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER 2
34M-21639-00-00
|
$5.99 | ||
|
Unavailable |
|||
