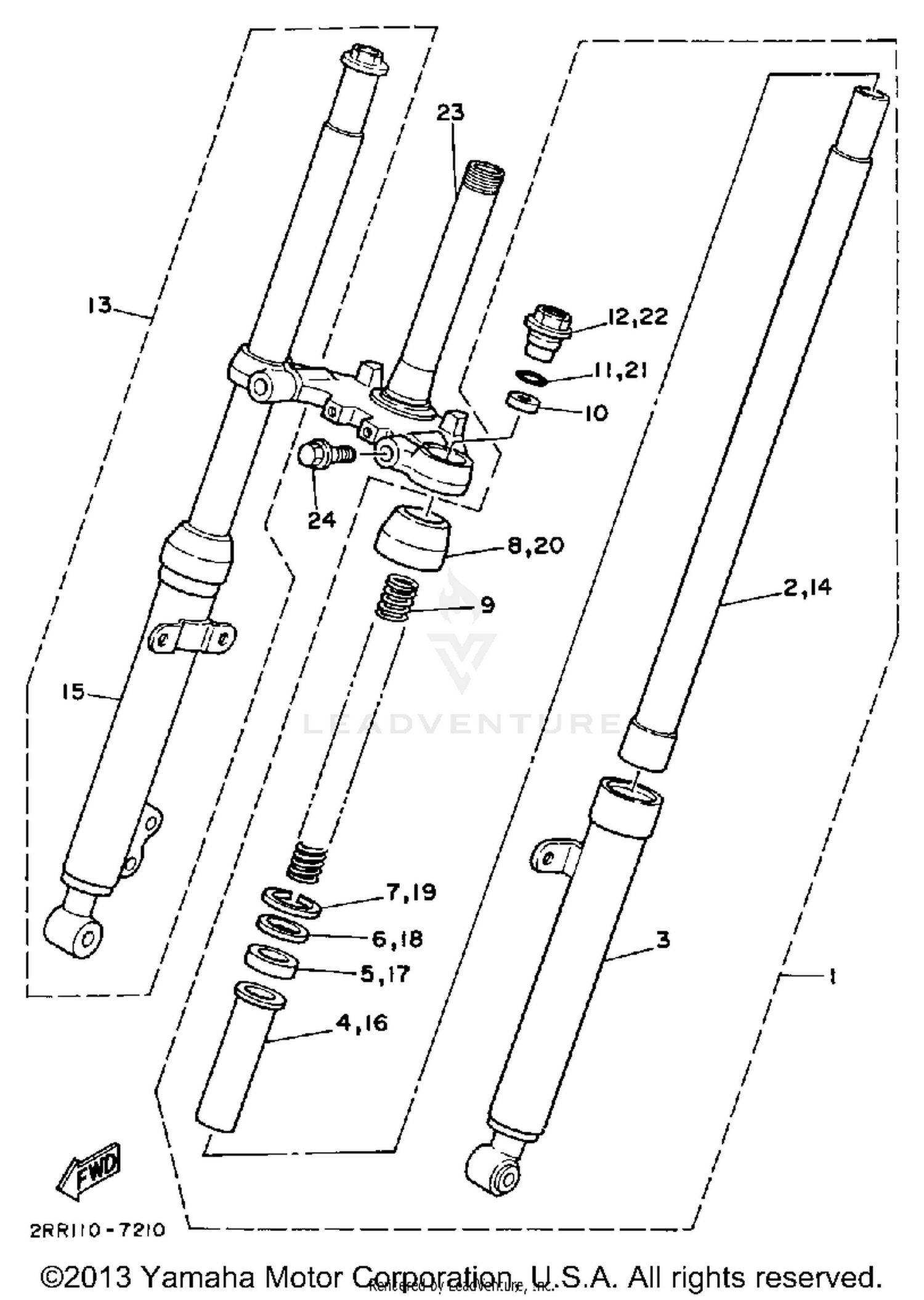

1991 Yamaha YSR50B FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
2RR-23102-00-00
|
$320.99 | ||
|
Unavailable |
|||
|
#2
INNER TUBE COMP. 1
2AL-23110-00-00
|
$260.99 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE COMP. L
2RR-23106-00-35
|
$249.99 | ||
|
Unavailable |
|||
|
#4
METAL, SLIDE 1
5A1-23125-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#5
OIL SEAL (5R6)
93110-27010-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHR, OIL SEAL
5A1-23146-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
93420-40064-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, DUST
5A1-23144-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, FRONT FORK
2AL-23141-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING UPPER
5R2-23142-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#11
O-RING
93210-17570-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CAP
2AL-23111-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#13
FRONT FORK ASSEMBLY R
2RR-23103-00-00
|
$463.99 | ||
|
Unavailable |
|||
|
#14
INNER TUBE COMP. 1
2AL-23110-00-00
|
$260.99 | ||
|
Unavailable |
|||
|
#15
OUTER TUBE COMP. R
2RR-23107-00-35
|
$211.99 | ||
|
Unavailable |
|||
|
#16
METAL, SLIDE 1
5A1-23125-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#17
OIL SEAL (5R6)
93110-27010-00
|
$20.99 | ||
|
Unavailable |
|||
|
#18
WASHR, OIL SEAL
5A1-23146-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93420-40064-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
SEAL, DUST
5A1-23144-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#21
O-RING
93210-17570-00
|
$6.99 | ||
|
Unavailable |
|||
|
#22
BOLT, CAP
2AL-23111-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#23
UNDER BRACKET
3AX-23340-00-00
|
$134.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95811-10030-00
Superseded by 95817-10030-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
