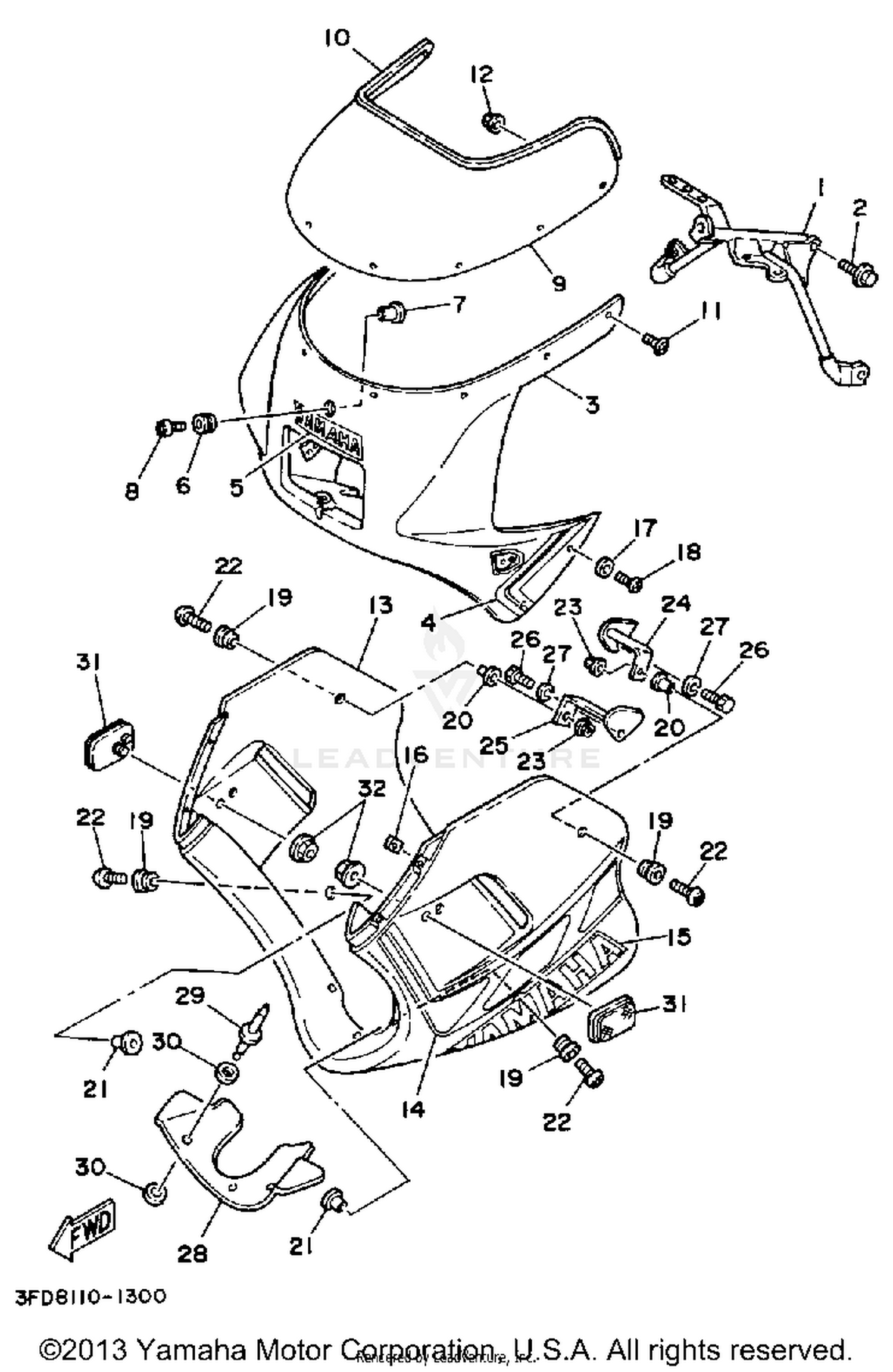

1991 Yamaha YSR50B FAIRING - COWLING OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY 1
2RR-28356-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, FRONT UPPER 1
3FD-2835G-00-00
|
$297.99 | ||
|
Unavailable |
|||
|
#4
GRPHC SET, COWLING
2UE-28390-10-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM, YAMAHA
99231-00020-00
Superseded by 99241-00080-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06083-00
Superseded by 90110-06202-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREEN
2RR-2837U-00-00
|
$148.99 | ||
|
Unavailable |
|||
|
#10
MOLD 2
2AL-28346-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
SCREW, ROUND HEAD
90150-05020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY, FRONT LOWER 1
2RR-2835J-30-00
|
$329.99 | ||
|
Unavailable |
|||
|
#14
GRAHIC SET, LWR CVRLOWER COVER
2UE-28301-10-00
|
$62.99 | ||
|
Unavailable |
|||
|
#15
EMBLEM, YAMAHA
99231-00060-00
Superseded by 99241-00240-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-06007-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, BINDING
90154-05059-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#20
COLLAR
90387-067N5-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06241-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06104-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, GUIDE 1
2AL-2831E-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#25
STAY, GUIDE 2
2AL-2831F-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
PANEL, INNER 1
2AL-2836K-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#29
RIVET, BLIND
90267-40029-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-044H9-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
REFLECTOR ASSY
23V-85110-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$6.99 | ||
|
Unavailable |
|||
