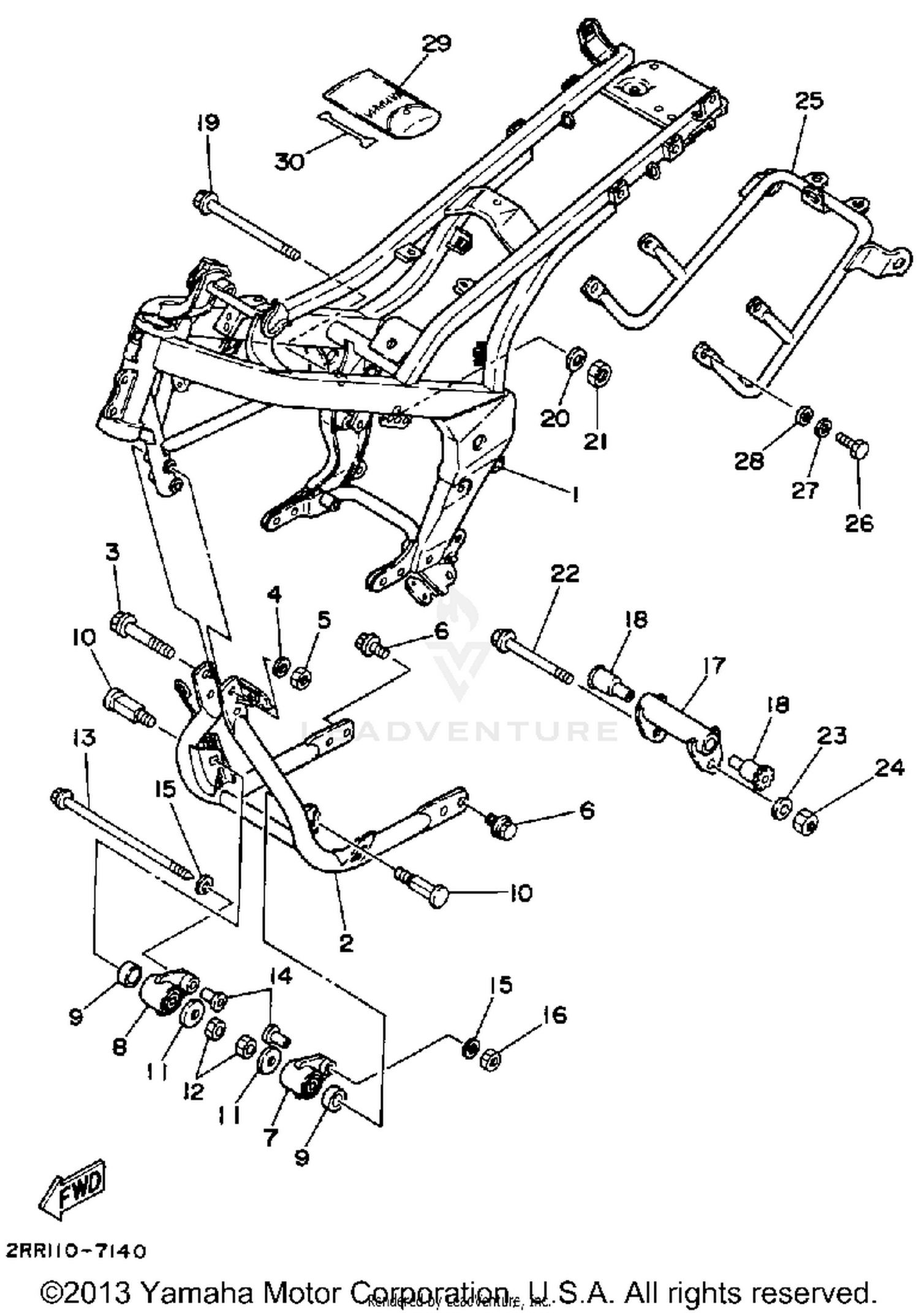

1991 Yamaha YSR50B FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, COMP.
2RR-21110-02-35
|
$673.99 | ||
|
Unavailable |
|||
|
#2
TUBE, DOWN
2GX-21140-01-00
|
$357.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
90105-08369-00
Superseded by 90105-08521-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08649-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENG BRKT SUB-COMP1SUB-COMP. 1
2GX-2140X-00-00
|
$284.99 | ||
|
Unavailable |
|||
|
#8
ENG BRKT SUB-COMP2SUB-COMP. 2
2GX-2140Y-00-00
|
$284.99 | ||
|
Unavailable |
|||
|
#9
COLLAR
2GX-21116-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#10
BOLT, ENG MNTNG 1
5G3-21481-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10321-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WASHER BASED
90105-08473-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
COLLAR
2GX-21459-00-00
Superseded by 90387-08664-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08326-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
BRACKET, ENG LOWER
2AL-21489-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#18
DAMPER 2
2GX-21486-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
90105-08024-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08649-00
|
$7.99 | ||
|
Unavailable |
|||
|
#21
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
BOLT, WASHER BASED
90105-08100-00
|
$2.60 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-08649-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
HANDLE, STANDING
2RR-21165-00-00
|
$270.99 | ||
|
Unavailable |
|||
|
#26
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
TOOL KIT
2U2-W2810-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#30
GAUGE, LEVEL
353-15361-00-00
|
$6.99 | ||
|
Unavailable |
|||
