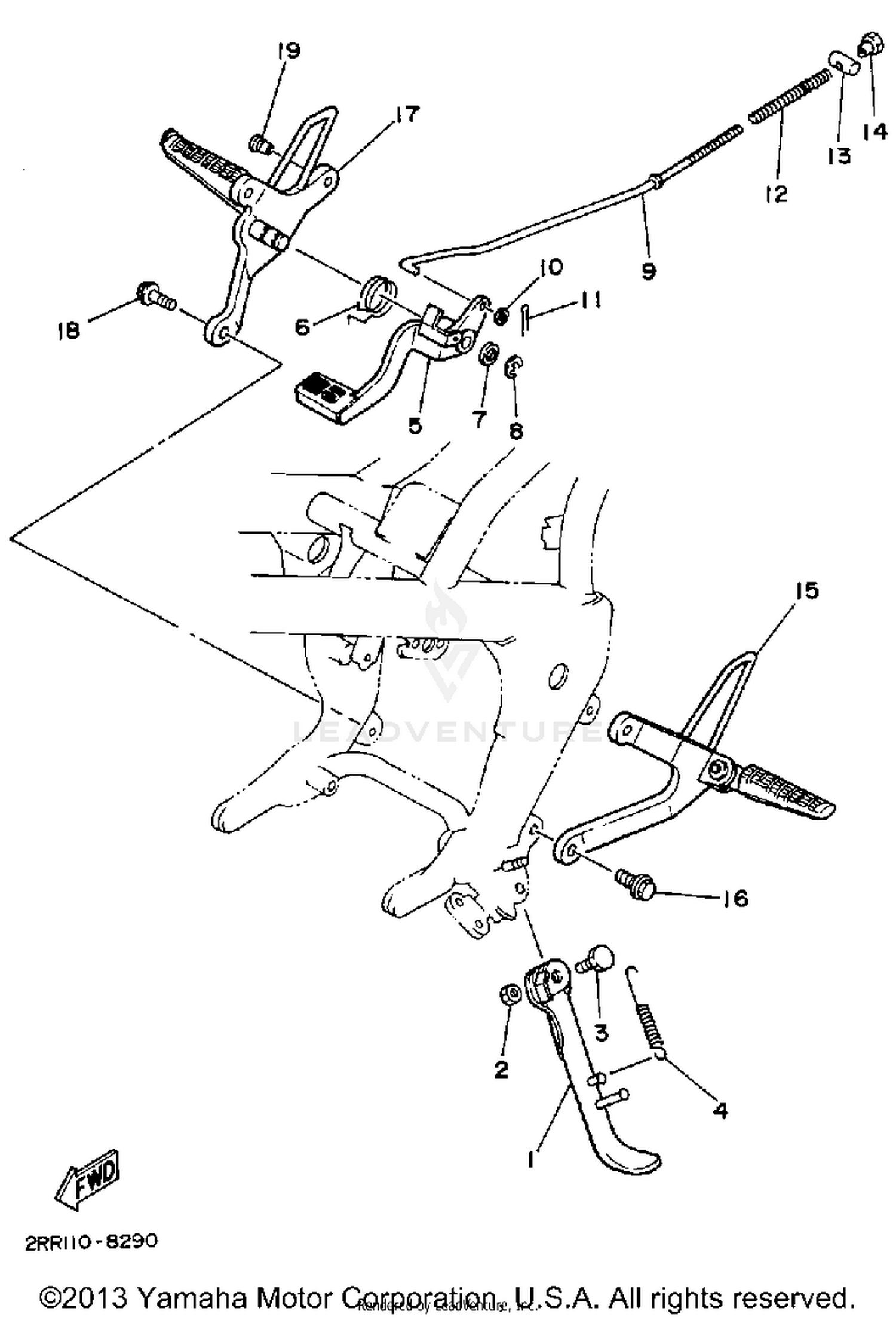

1991 Yamaha YSR50B STAND - FOOTREST OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
2RR-27311-00-R4
|
$83.99 | ||
|
Unavailable |
|||
|
#2
NUT, SELF-LOCKING
90185-08055-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-08034-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-26330-00
|
$10.49 | ||
|
Unavailable |
|||
|
#5
PEDAL, BRAKE
2AL-27211-01-91
|
$31.99 | ||
|
Unavailable |
|||
|
#6
SPRING, TORSION
90508-32716-00
|
$4.60 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-14212-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93430-10015-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, BRAKE
2AL-27231-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-10245-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
90249-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-06411-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FRT FOOTREST ASSEMBLY L (LEFT)
2RR-27410-00-35
|
$146.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-08307-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRT FOOTREST ASSEMBLY R (RIGHT)
2RR-27420-00-35
|
$128.99 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
90105-08307-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
PLUG
90338-07124-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
