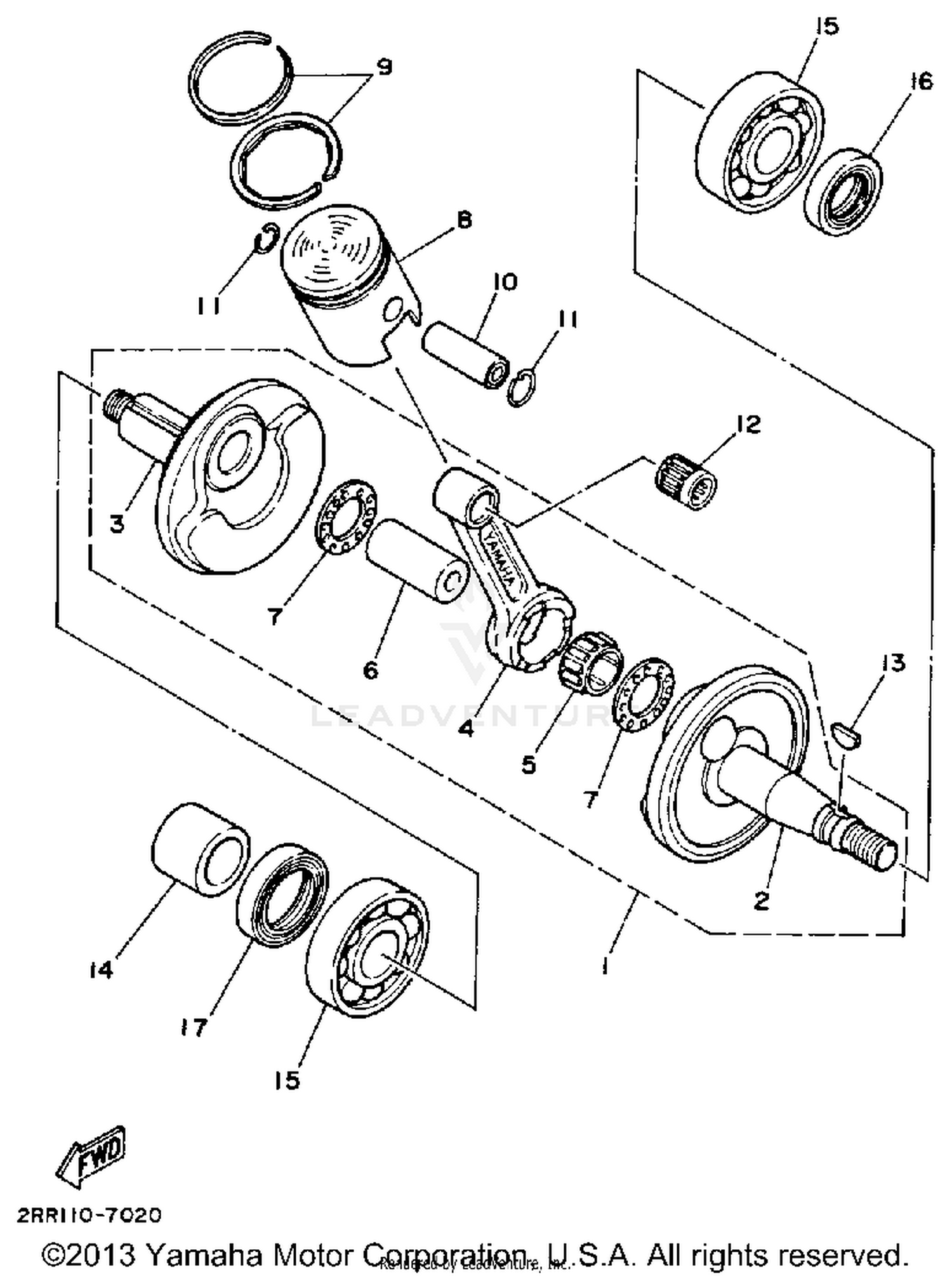

1991 Yamaha YSR50B CRANKSHAFT - PISTON OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
2RR-11400-01-00
|
$576.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
2RR-11412-01-00
|
$102.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
2RR-11422-00-00
|
$152.99 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING (3R1-11651-00
3R1-11651-01-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING CYLINDER #10
93310-418C4-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
257-11681-00-00
Superseded by 257-11681-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-18112-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTONSTD (3T2-11631-00-97)
3T2-11631-01-97
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON 2 O/S 0.50 (3T2-11636-00
3T2-11636-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (3T2-11635-00
3T2-11635-01-00
|
$100.99 | ||
|
Unavailable |
|||
|
#9
PISTON RINGSET STD
2W1-11610-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RINGSET 1ST
2W1-11610-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RINGSET 2ND
2W1-11610-20-00
|
$40.99 | ||
|
Unavailable |
|||
|
#10
PIN, PISTON
517-11633-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-13022-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93310-11268-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, WOODRUFF
90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-205E9-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20458-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93102-20009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
