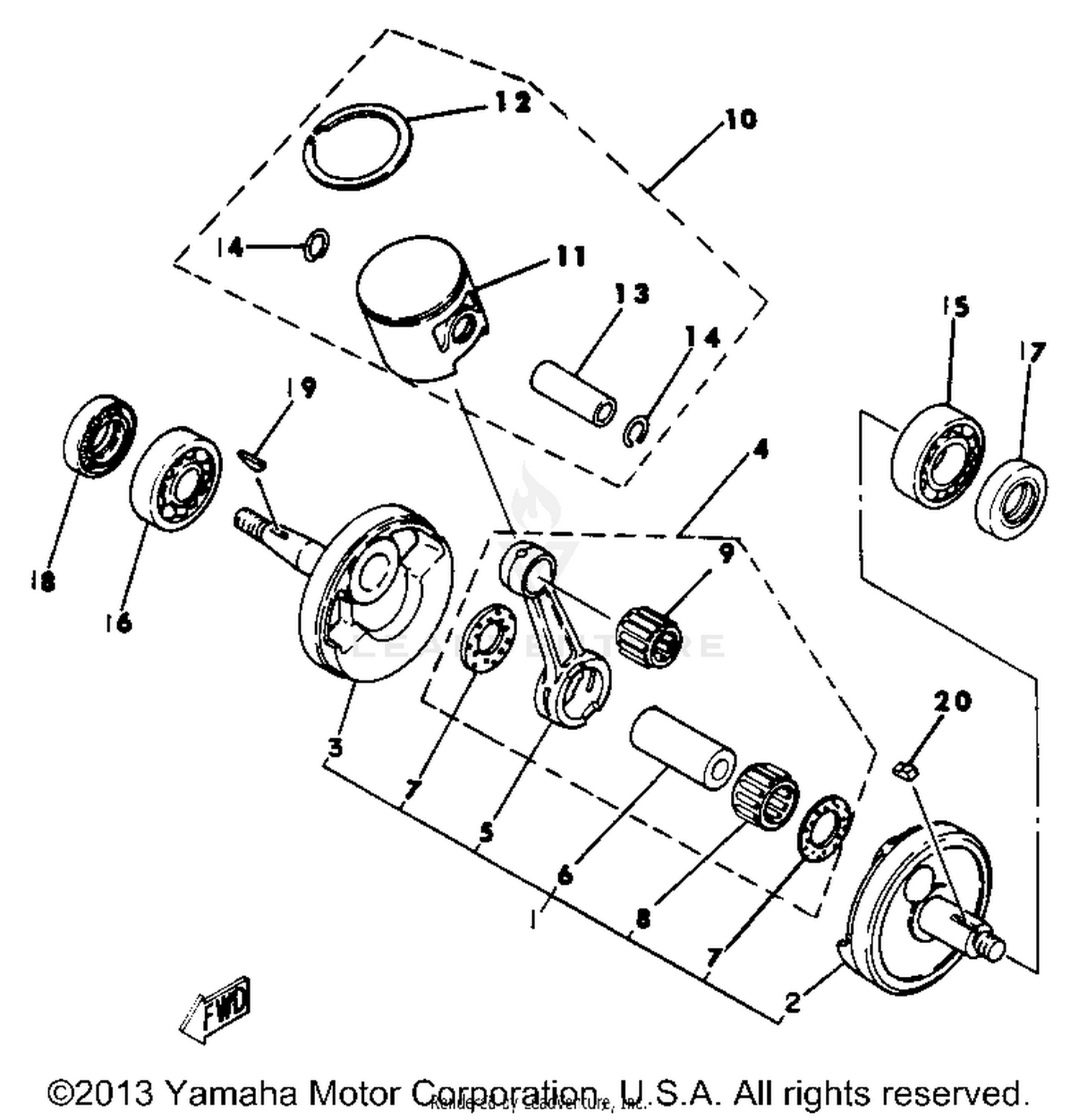

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
4V2-11400-00-00
|
$337.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
4V2-11412-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
4V2-11422-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#4
CONNECTING ROD ASSEMBLY
4V2-11650-00-00
|
$259.99 | ||
|
Unavailable |
|||
|
#5
ROD, CONNECTING
4V2-11651-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#6
PIN, CRANK 1
3M5-11681-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-22248-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CYLINDER.#10
93310-422H0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CYLINDRICAL
93310-216L2-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON KIT STD (STD)
4V2-11630-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#11
PISTON STD
3N8-11631-10-94
Superseded by 3N8-11631-10-93
|
$123.99 | ||
|
Unavailable |
|||
|
#12
RING, PISTON STD (STD)
2K6-11611-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#13
PIN, PISTON
137-11633-00-00
Superseded by 137-11633-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93450-17129-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-30421-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, SD-TYPE
93102-25258-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, PISTON 1ST (1ST O/S)
2K6-11611-10-00
|
$27.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 2ND (2ND O/S)
2K6-11611-20-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 3RD (3RD O/S)
2K6-11611-30-00
|
$21.99 | ||
|
Unavailable |
|||
|
#
RING, PISTON 4TH (4TH O/S)
2K6-11611-40-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
KEY, STRAIGHT
90282-05046-00
|
$5.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 1ST (1ST O/S)
4V2-11630-10-00
|
$102.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 2ND (2ND O/S)
4V2-11630-20-00
|
$106.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 3RD (3RD O/S)
4V2-11630-30-00
|
$81.12 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH (4TH O/S)
4V2-11630-40-00
|
$81.12 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25 (1ST O/S 0.25
3N8-11635-10-00
|
$114.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50 (2ND O/S 0.50
3N8-11636-10-00
|
$123.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75 (3RD O/S 0.75
3N8-11637-10-00
|
$98.99 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00 (4TH O/S 1.00
3N8-11638-10-00
|
$82.99 | ||
|
Unavailable |
|||
