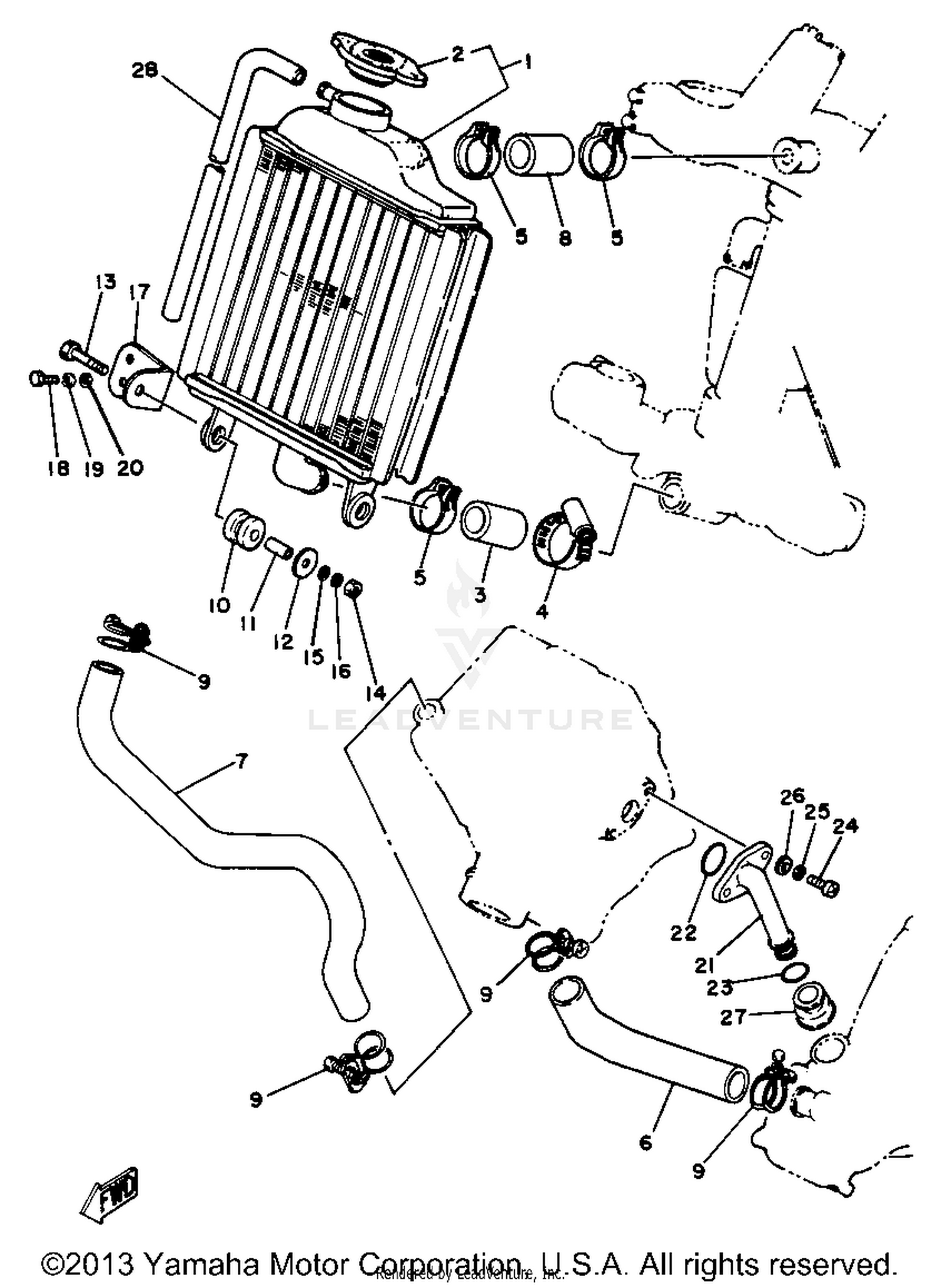

Radiator - Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSEMBLY
4V2-12460-01-00
|
$489.99 | ||
|
Unavailable |
|||
|
#2
CAP, RADIATOR
11H-12462-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE 1
4V2-12481-00-00
|
$9.20 | ||
|
Unavailable |
|||
|
#4
CLAMP, HOSE
90460-38292-00
|
$19.49 | ||
|
Unavailable |
|||
|
#5
CLAMP, HOSE
90460-28175-00
|
$3.57 | ||
|
Unavailable |
|||
|
#6
PIPE 2
4V2-12482-00-00
|
$21.49 | ||
|
Unavailable |
|||
|
#7
PIPE 3
4V2-12483-00-00
|
$34.15 | ||
|
Unavailable |
|||
|
#8
PIPE 4
4V2-12484-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#9
CLAMP, HOSE
90460-25170-00
|
$3.16 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-15064-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-072E7-00
Superseded by 90387-061V1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06570-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY (4V2-2331A-00)
4V2-2331A-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#18
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT
4V2-12446-00-00
|
$23.42 | ||
|
Unavailable |
|||
|
#22
O-RING
93210-19026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-16275-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL, PIPE 1
4V2-12494-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#28
HOSE
90445-12581-00
|
$7.42 | ||
|
Unavailable |
|||
