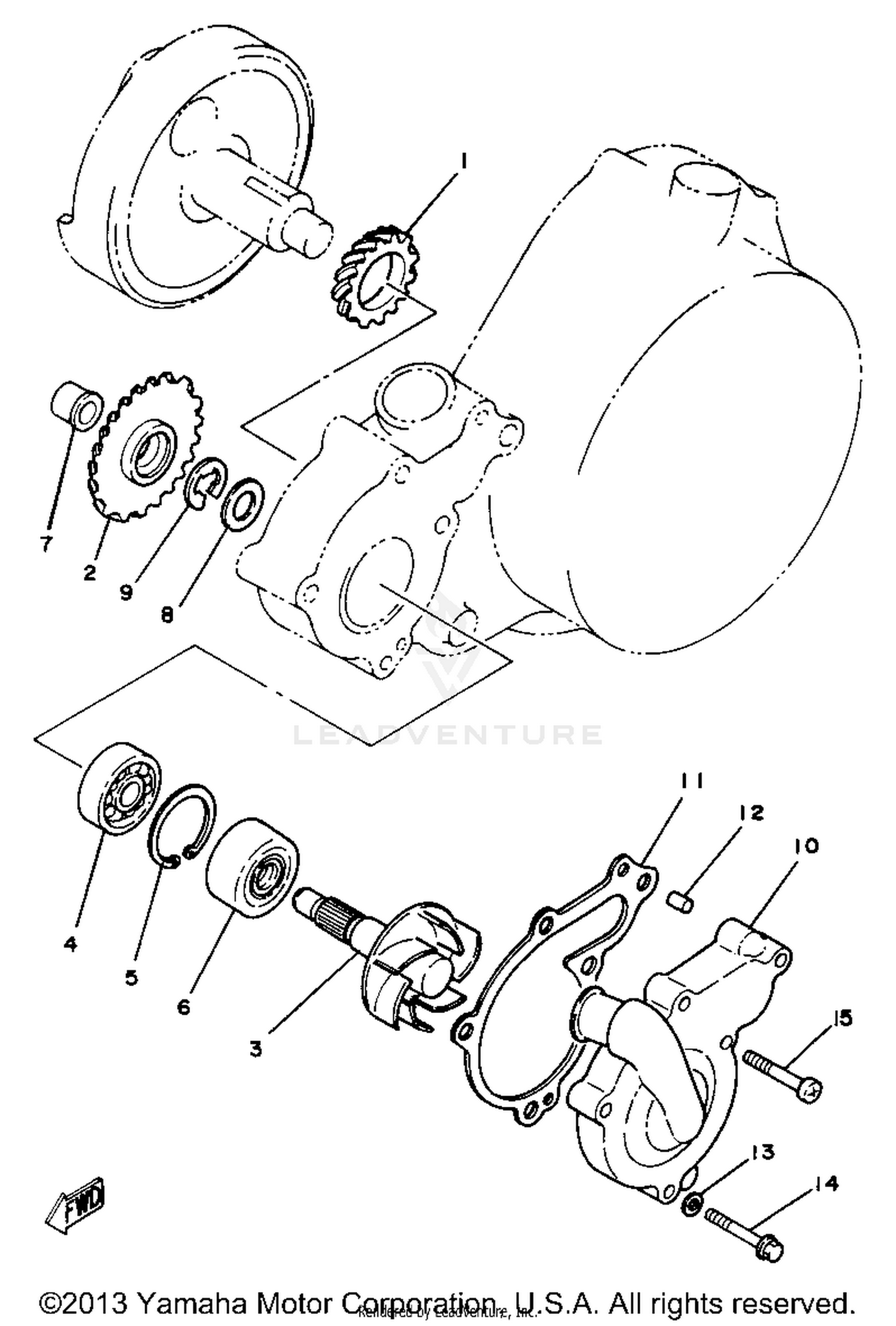

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, DRIVE
4V2-12436-01-00
|
$23.42 | ||
|
Unavailable |
|||
|
#2
GEAR, IMPELLER SHAF
4V2-12459-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#3
IMPELLER SHAFT ASSEMBLY
4V2-12450-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#4
BEARING
93306-00105-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93420-28055-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93103-12119-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, SOLID
90381-08002-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-10614-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99001-08600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, HOUSING
4V2-12422-01-00
|
$58.19 | ||
|
Unavailable |
|||
|
#11
GASKET, HSNG COR 2
4V2-12428-00-00
Superseded by 4V2-12428-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL
93604-10011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06166-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95826-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
