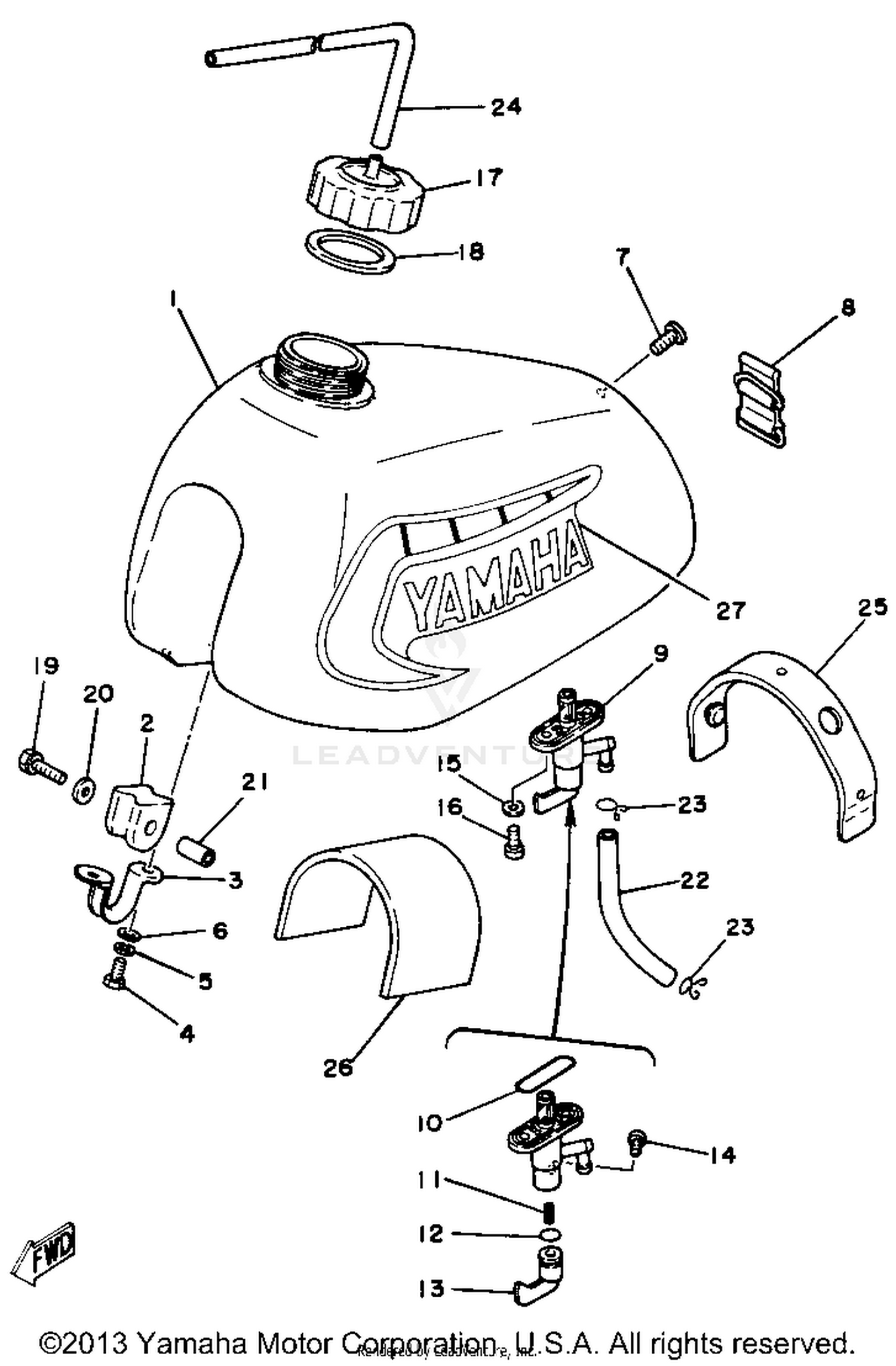

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3R3-24110-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 2
1W1-24182-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, DAMPER
1W1-24144-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
98903-06018-00
Superseded by 90149-06306-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, TANK FITTING 1
59V-24173-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSEMBLY 1
2K5-24500-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
1A0-24529-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
GASKET
1A0-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, COCK
1A0-24524-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#14
SCREW, LEVER FITTING
619-24535-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BODY, CAP
1W1-24611-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CAP
1W1-24612-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-06022-00
|
$2.15 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE
90445-11491-00
|
$4.05 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, LOCATING 1
3R4-24181-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#26
DAMPER, LOCATING 3
1W1-24183-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#27
GRAPHIC SET
4V2-24240-09-00
|
$64.99 | ||
|
Unavailable |
|||
