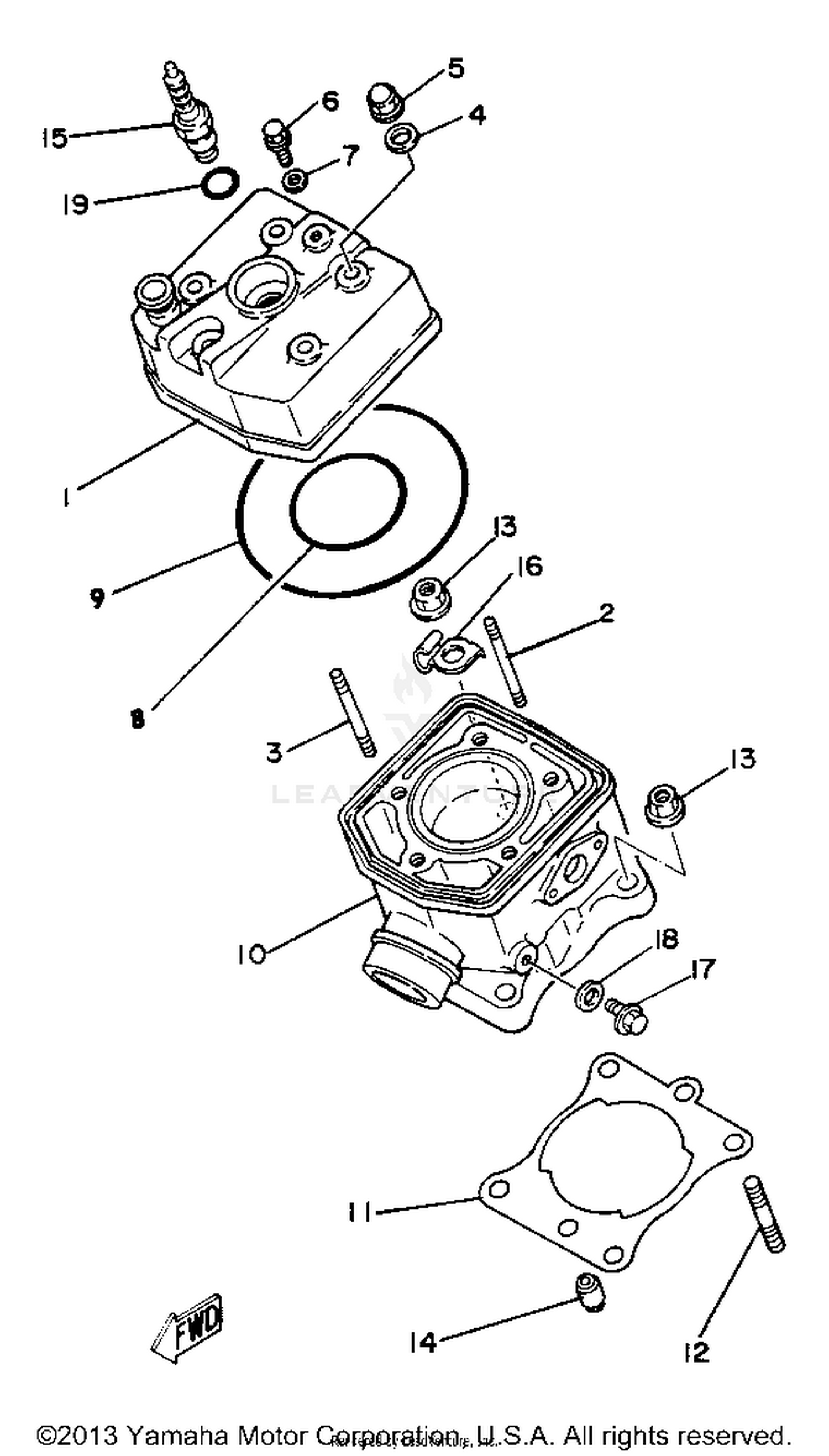

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
4V2-11111-00-00
|
$59.94 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08302-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-08364-00
|
$6.18 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-08087-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
90176-08026-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-06166-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-69434-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93211-19413-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER 1
4V2-11311-00-00
|
$695.99 | ||
|
Unavailable |
|||
|
#11
GASKET,CYLINDER
4V2-11351-00-00
Superseded by 4V2-11351-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-10132-00
|
$2.15 | ||
|
Unavailable |
|||
|
#13
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
BR10EIX NGK SPLUG
NGK-B10EV-00-00
Superseded by BR1-0EIX0-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER 1
4V2-1131E-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
90105-08163-00
Superseded by 95027-08012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08087-00
|
$3.64 | ||
|
Unavailable |
|||
|
#19
O-RING
93210-16290-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
