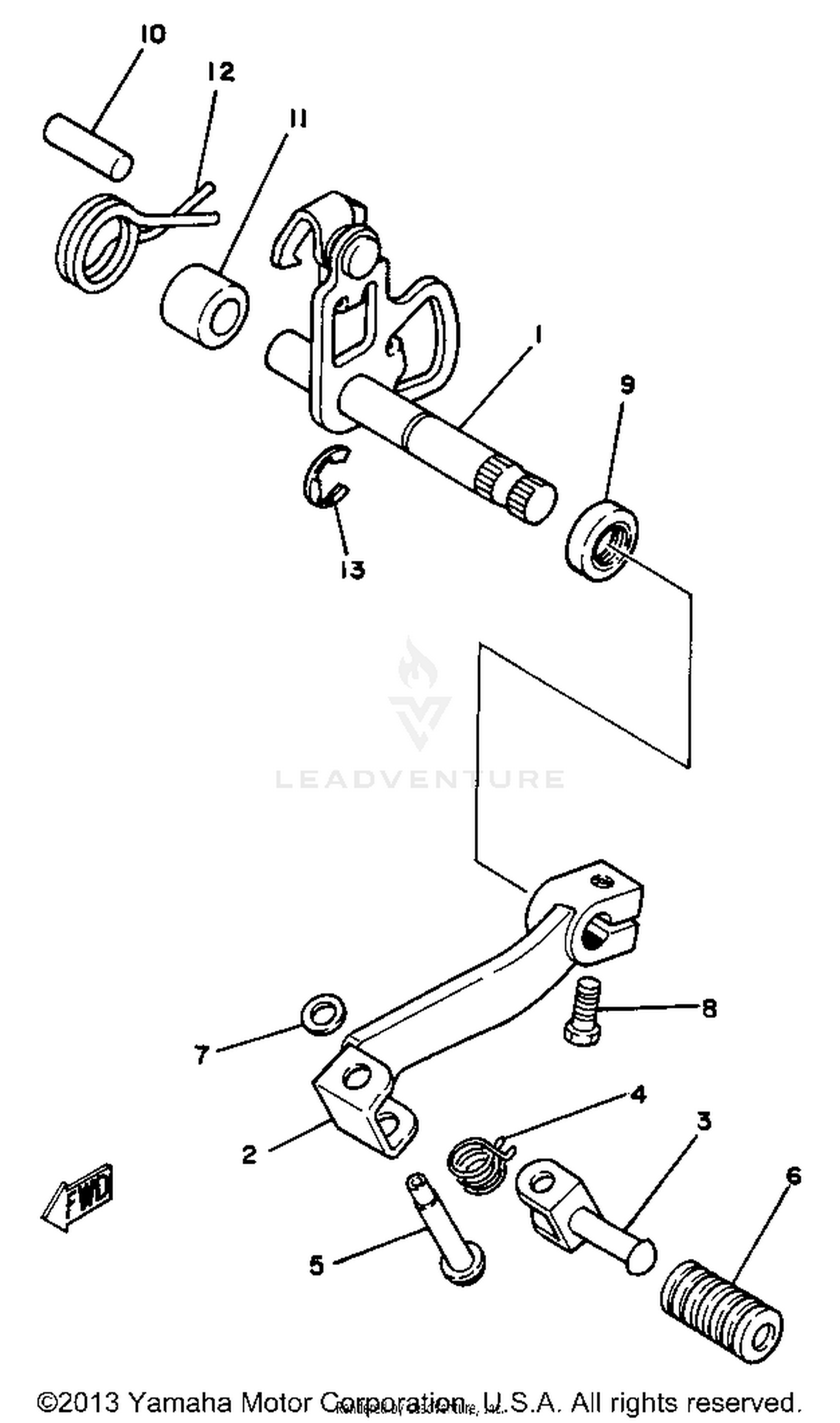

Shift Shaft - Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSEMBLY.1
4V2-18101-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#2
SHIFT PEDAL ASSEMBLY (509-18111
4V2-18111-02-00
Superseded by 5X4-18110-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#3
PEDAL, SHIFT
3R8-18162-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
SPRING, TORSION
90508-20415-00
|
$2.45 | ||
|
Unavailable |
|||
|
#5
PIN (90243-08017)
90243-08019-00
|
$4.15 | ||
|
Unavailable |
|||
|
#6
COVER, SHIFT PEDAL
1W6-18113-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93109-12012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93608-25150-00
|
$2.50 | ||
|
Unavailable |
|||
|
#11
SPACER
90560-11189-00
|
$8.99 | ||
|
Unavailable |
|||
|
#12
SPRING, TORSION
90508-32374-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
