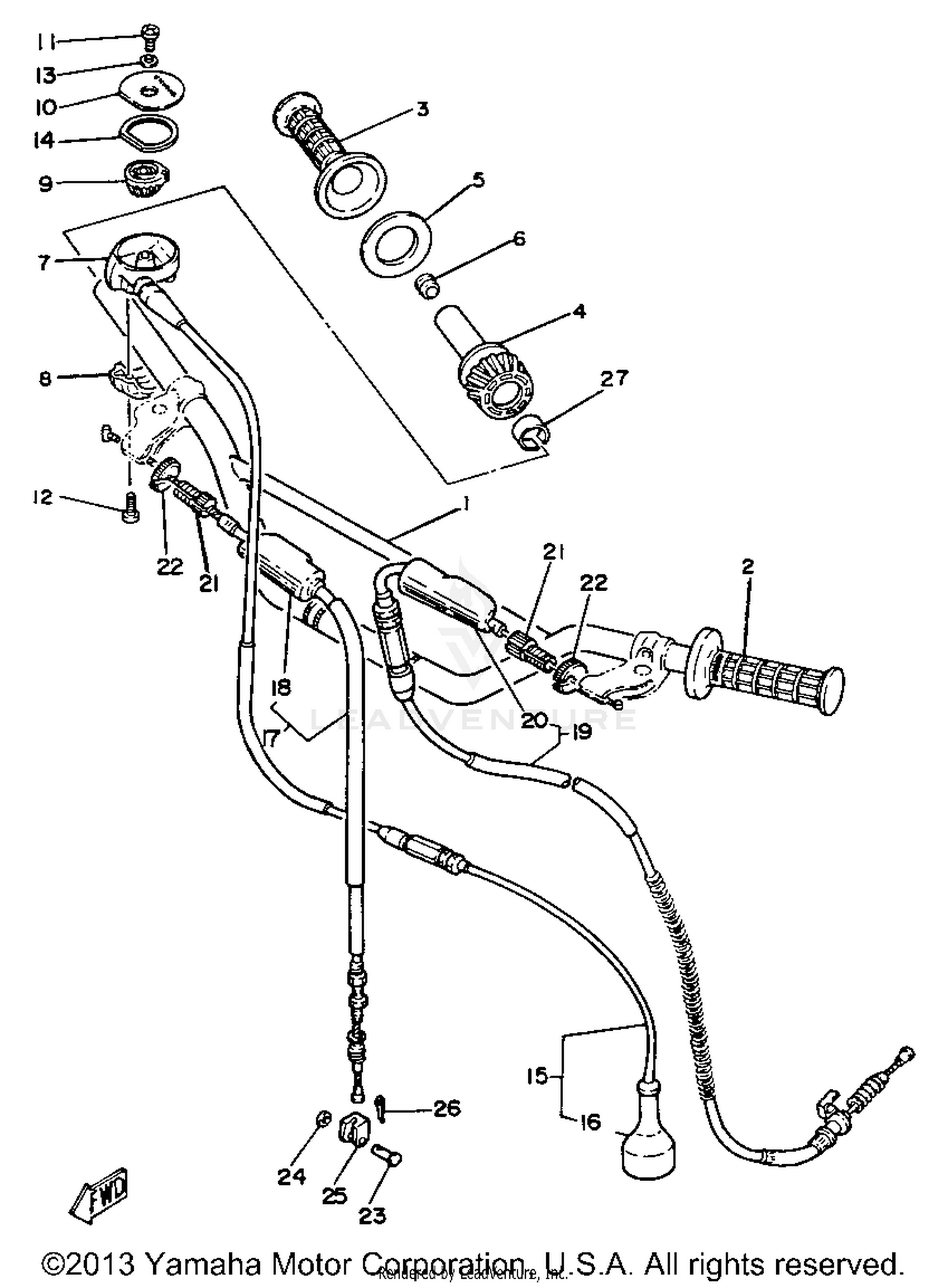

Handlebar - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
4V2-26111-01-00
Superseded by 1LN-26111-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#2
GRIP (LEFT)
4V4-26241-01-00
Superseded by 1LX-26241-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP (RIGHT)
1LX-26242-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, THRTL GUIDE
4V4-26243-00-00
|
$21.28 | ||
|
Unavailable |
|||
|
#5
RING, LEAF
4V4-26249-00-00
|
$2.75 | ||
|
Unavailable |
|||
|
#6
PLUG
90338-12192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GRIP UPPER
4V4-26281-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#8
CAP, GRIP LOWER
4V4-26282-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#9
GEAR, BEVEL
4V4-2628E-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#10
CAP, GEAR
4V4-2628F-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BIND
98906-05010-00
Superseded by 98907-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-05009-00
|
$2.25 | ||
|
Unavailable |
|||
|
#14
PACKING
4V4-2628G-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#15
CABLE, THROTTLE 1
5X4-26311-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#16
CAP, RUBBER
500-26329-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#17
CABLE, BRAKE
4V2-26341-01-00
Superseded by 5Y0-26341-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE, CLUTCH
5X4-26335-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#20
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#21
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, CABLE
156-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-22660-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
